Reduction Drive Gear: Disassembly

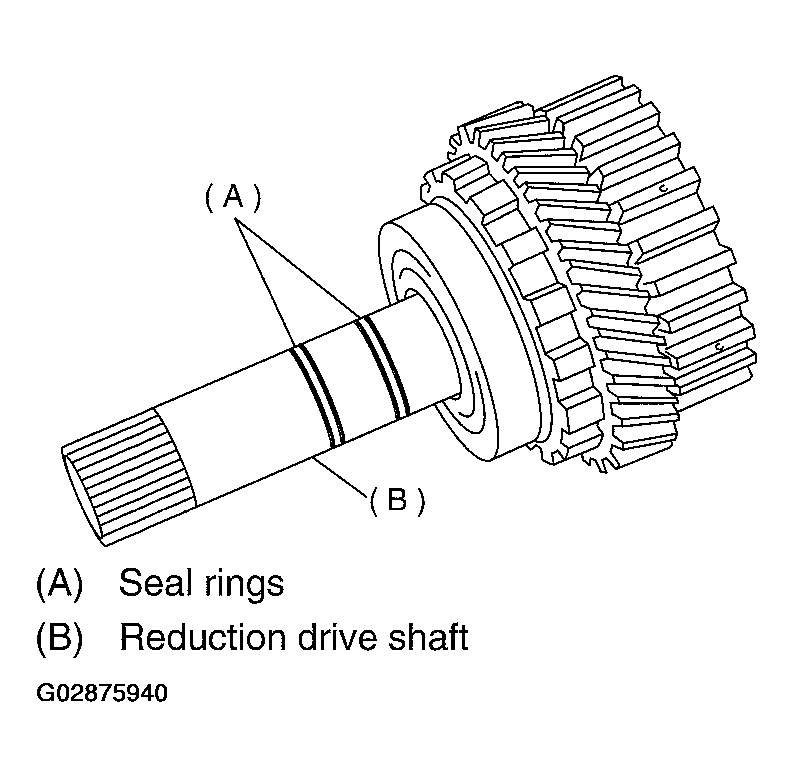

Take out the seal rings.

Fig 1: Removing Seal Rings
Courtesy of SUBARU OF AMERICA, INC.
Using ST, remove the ball bearing.
1. ST 498077600 REMOVER
Fig 2: Removing Ball Bearing
Courtesy of SUBARU OF AMERICA, INC.
Using a press, remove the reduction drive gear.

Fig 3: Removing Reduction Drive Gear
Courtesy of SUBARU OF AMERICA, INC.
