Atmospheric Pressure Sensor

The atmospheric pressure sensor converts pressure values into electric signals, and sends the signals to the ECM.

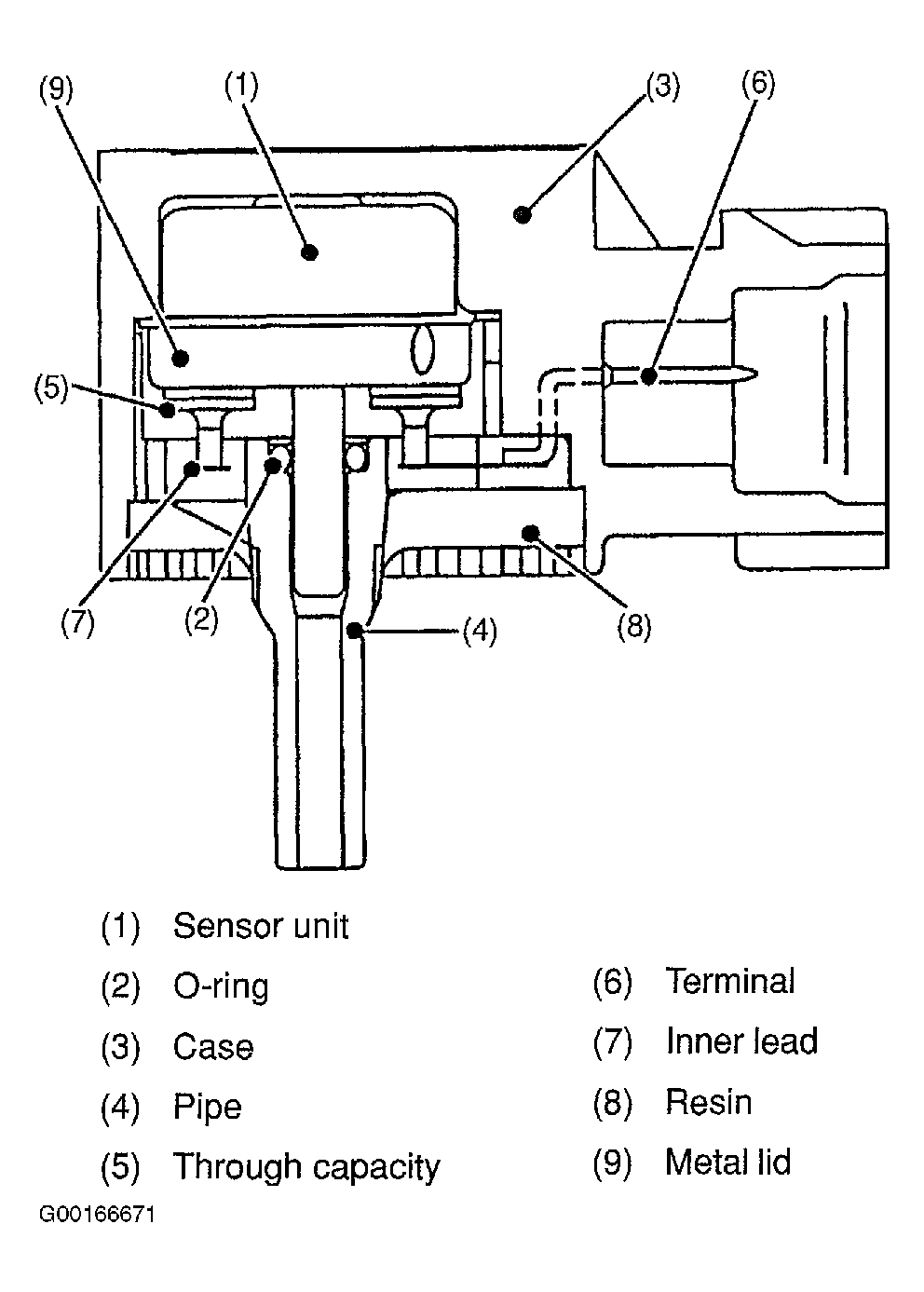

Fig 1: Identifying Atmospheric Pressure Sensor (Baja, Forester, Impreza & Outback Sport)

Courtesy of SUBARU OF AMERICA, INC.
