Conditions For VDC Sequence Control

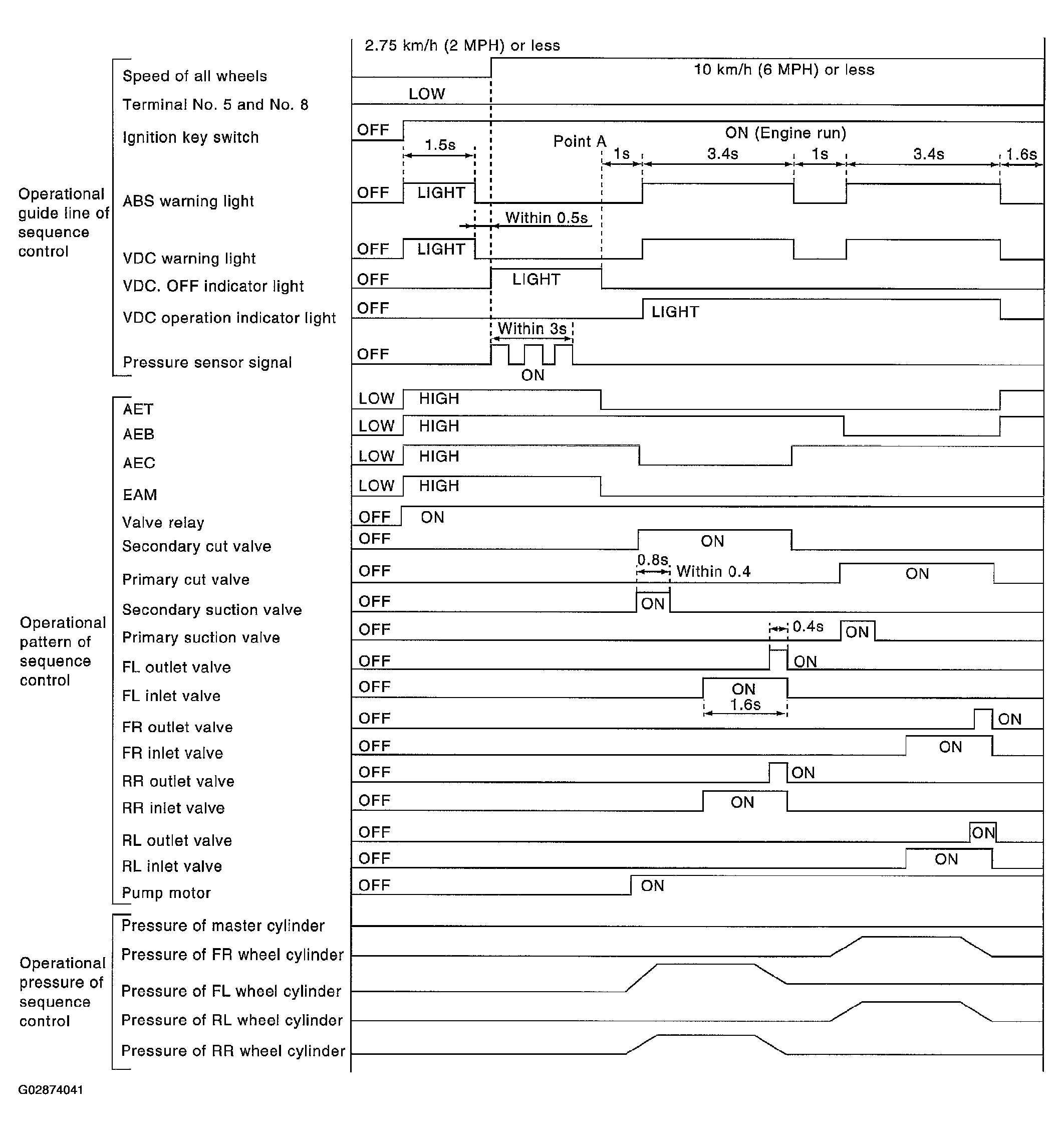

Fig 1: Identifying Conditions For VDC Sequence Control

G02874041

Courtesy of SUBARU OF AMERICA, INC.

NOTE:

When select monitor is used, control operation starts at point A. The patterns from IGN key ON to the point A show that operation is started by diagnosis connector.
HIGH means high voltage.
LOW means low voltage.
