Hydraulic Control Unit (H/U): Inspection: Notes

Check connected and fixed condition of connector.
Check valve relay and motor relay for discontinuity or short circuits.

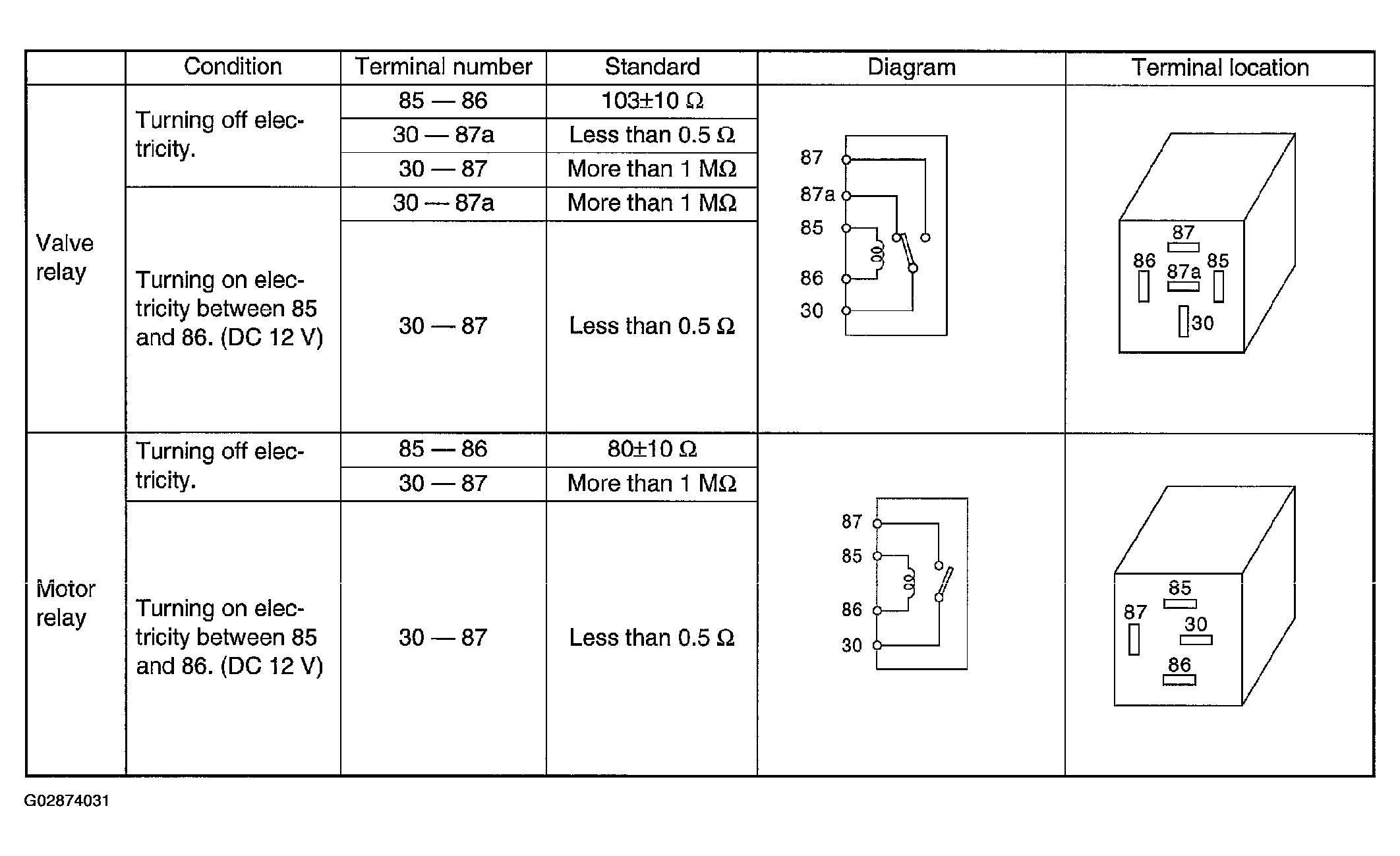

Fig 1: Checking Valve Relay And Motor Relay
Courtesy of SUBARU OF AMERICA, INC.
