With SUBARU Select Monitor

CAUTION: Remove foreign matter (dust, water, etc.) from the ABSCM & H/U connector during removal and installation.

NOTE:

To check harness for broken wires or short circuits, shake it while holding it or the connector.
Check list for interview. Refer to WITH SUBARU SELECT MONITOR .

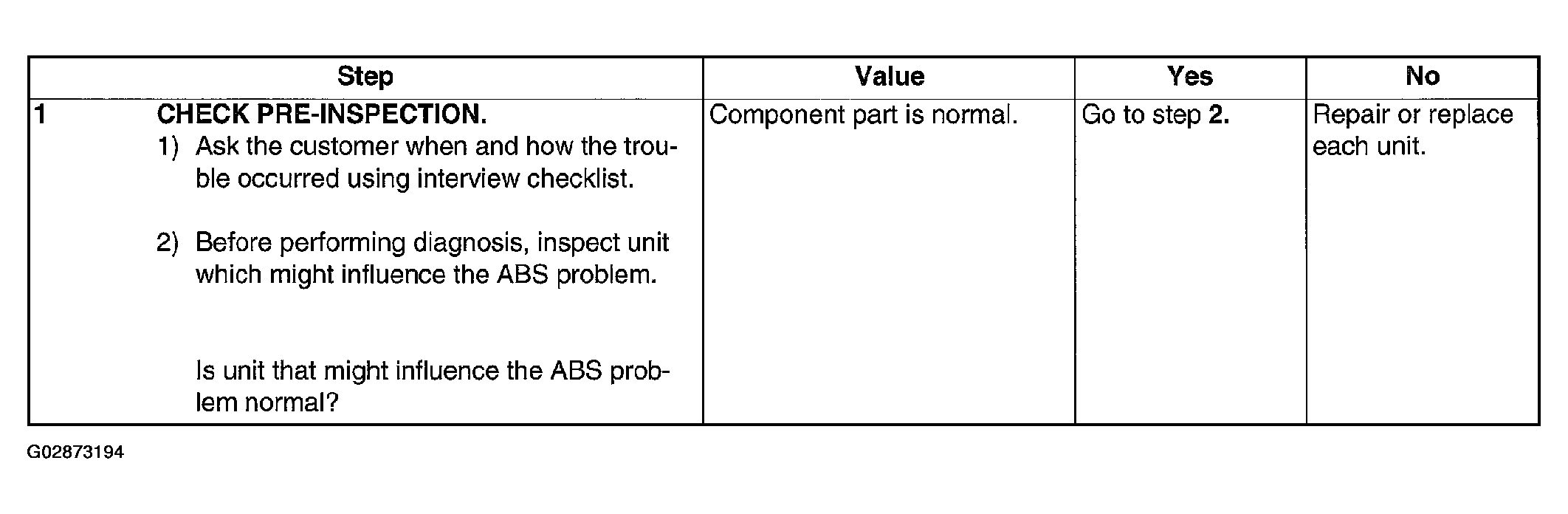

Fig 1: Basic Diagnostic Procedure With Subaru Select Monitor (Step 1)

Courtesy of SUBARU OF AMERICA, INC.

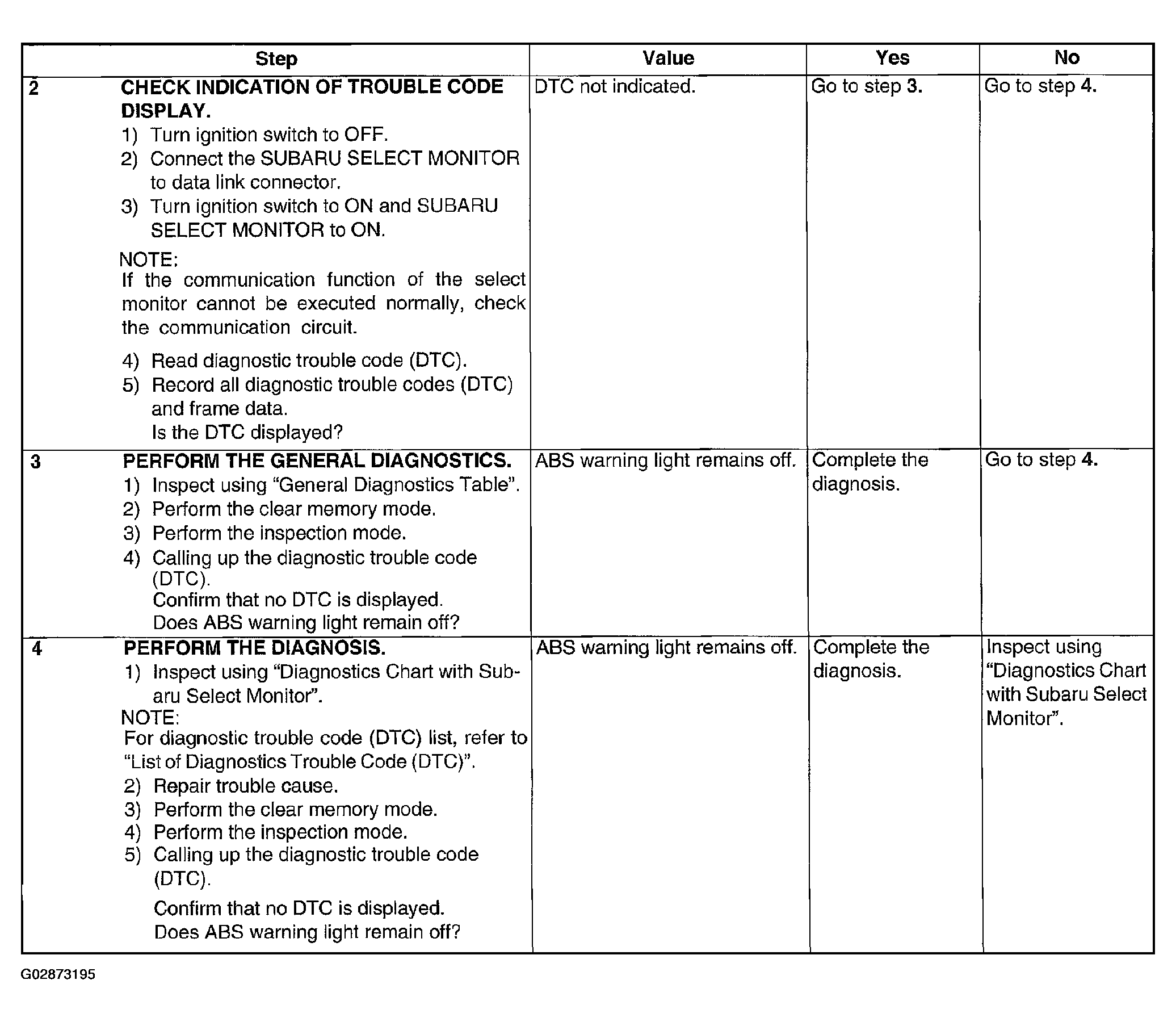

Fig 2: Basic Diagnostic Procedure With Subaru Select Monitor (Steps 2-4)

Courtesy of SUBARU OF AMERICA, INC.
