General Description
›
Component
›
Intake Manifold
Intake Manifold

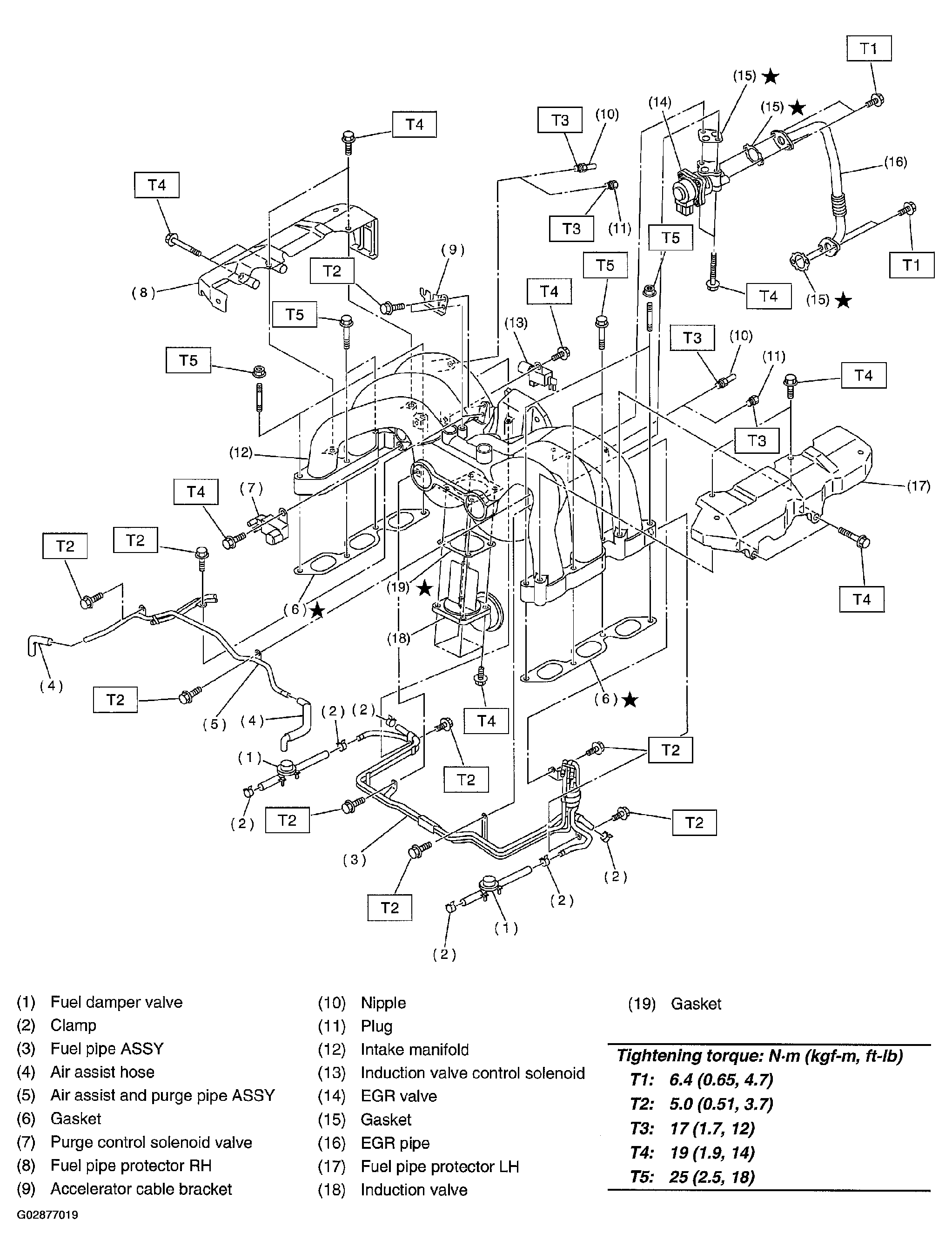

Fig 1: Exploded View Of Intake Manifold With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
