Intake Manifold Pressure Sensor: Removal

Disconnect battery ground cable.

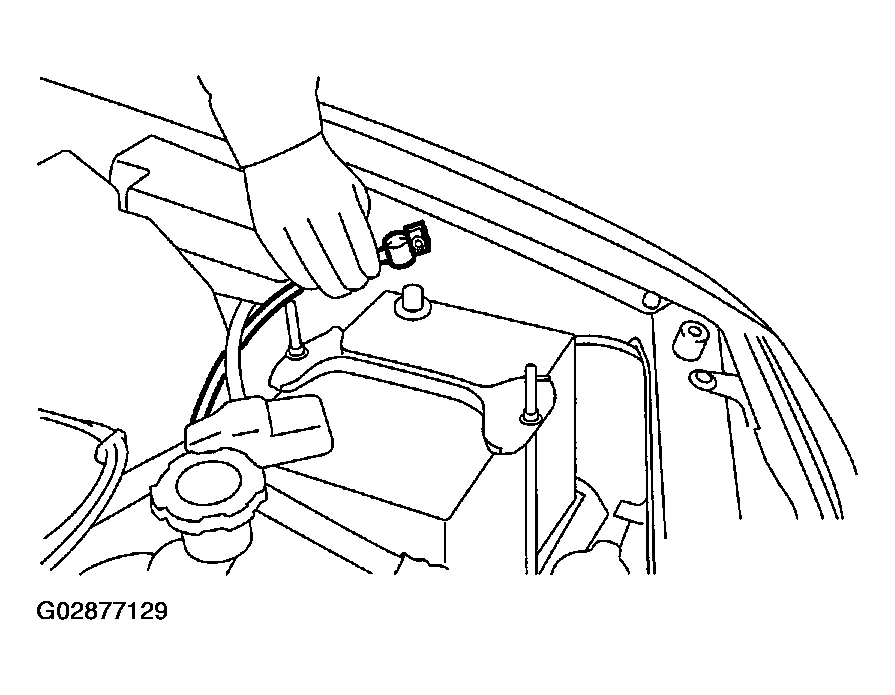

Fig 1: Disconnecting Battery Ground Cable
Courtesy of SUBARU OF AMERICA, INC.
Disconnect connector from intake manifold pressure sensor.
Remove intake manifold pressure sensor from throttle body.

Fig 2: Removing Intake Manifold Pressure Sensor From Throttle Body
Courtesy of SUBARU OF AMERICA, INC.
