Trouble Symptom:

Select monitor communication failure WIRING DIAGRAM:

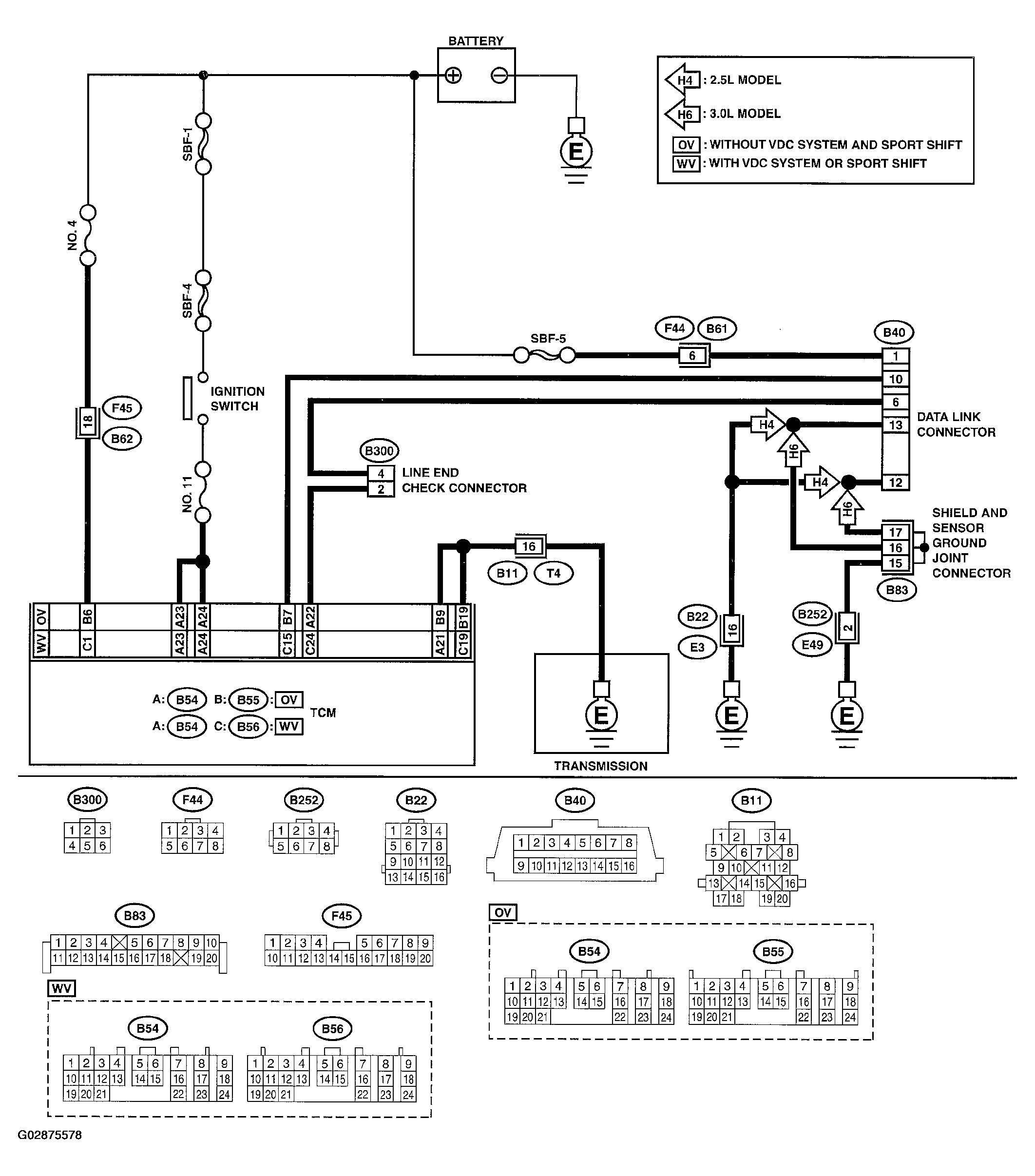

Fig 1: Communication For Initializing Impossible Wiring Diagram
Courtesy of SUBARU OF AMERICA, INC.

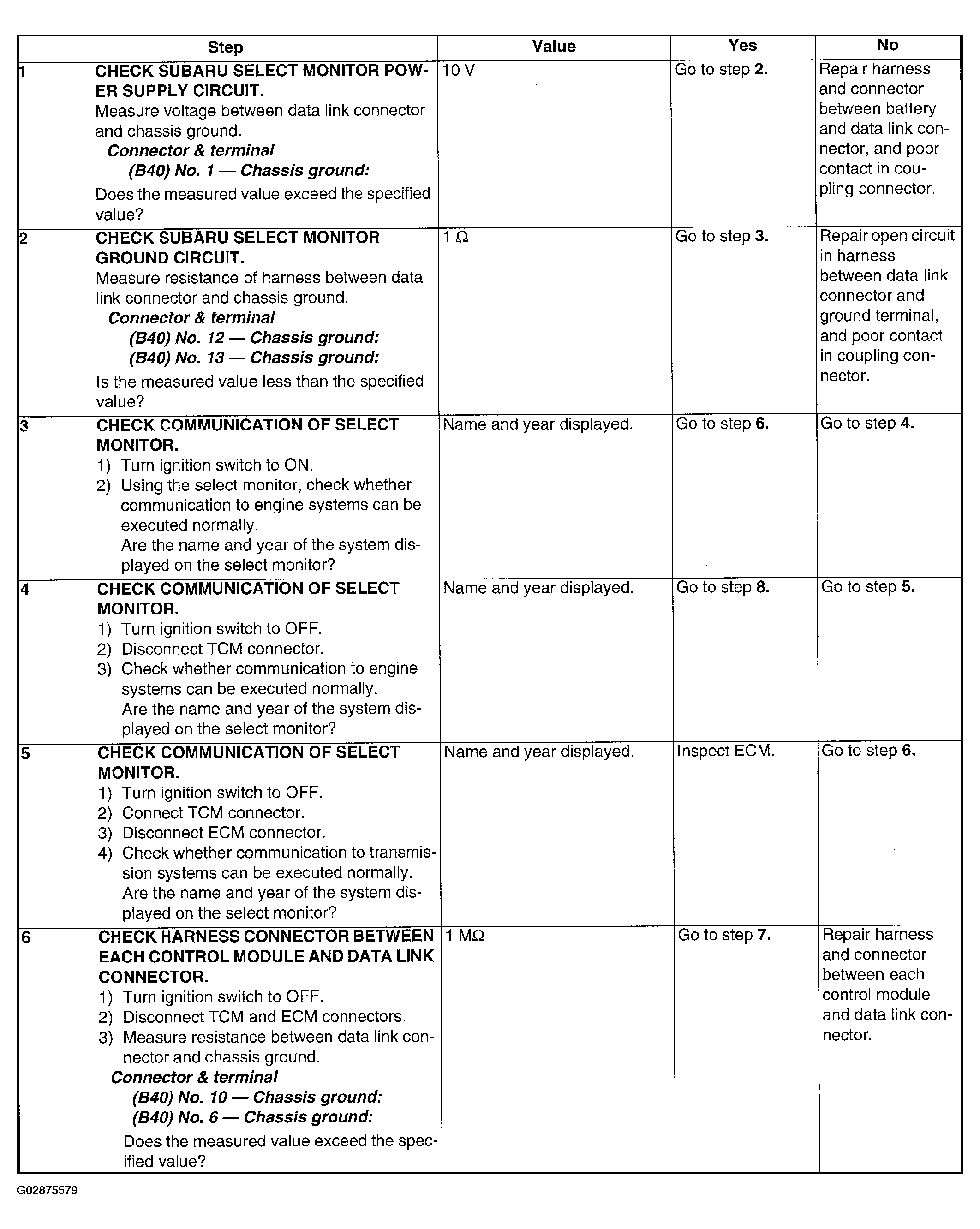

Fig 2: Communication For Initializing Impossible Diagnostic Procedure Chart (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

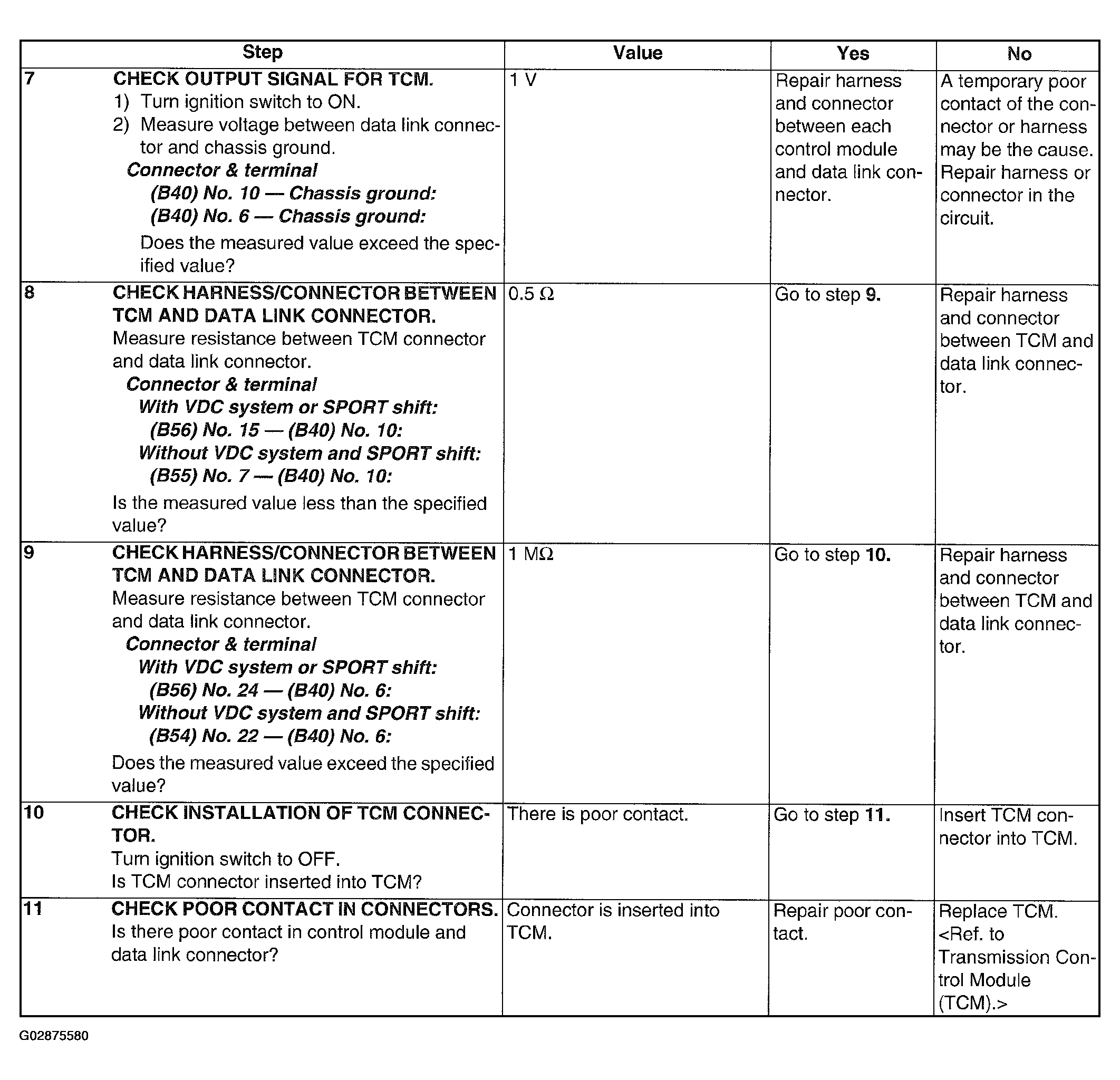

Fig 3: Communication For Initializing Impossible Diagnostic Procedure Chart (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.
