Symptom Related Diagnostic: Inspection

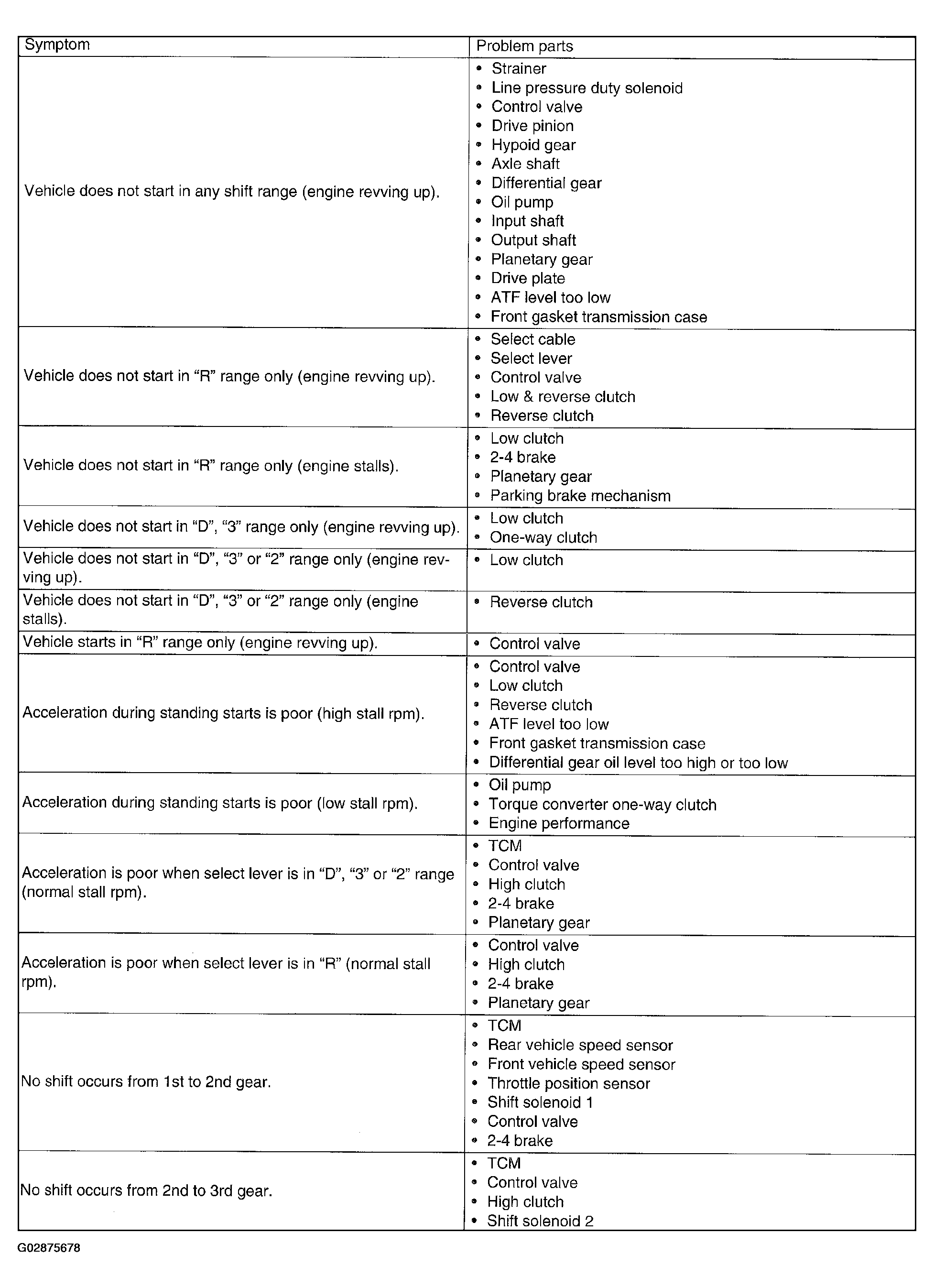

Fig 1: Symptom Related Diagnostic Inspection Chart (1 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

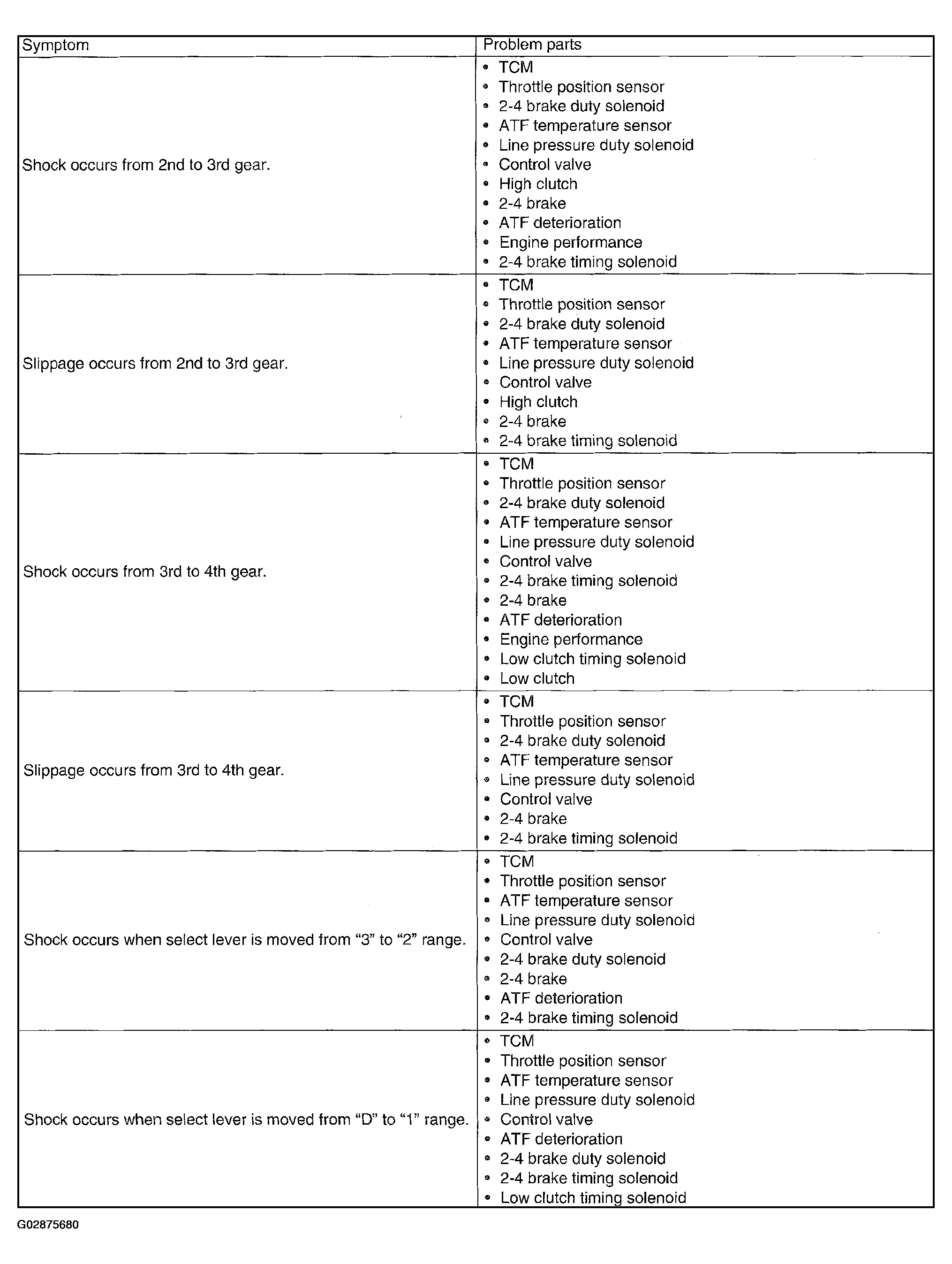

Fig 2: Symptom Related Diagnostic Inspection Chart (2 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

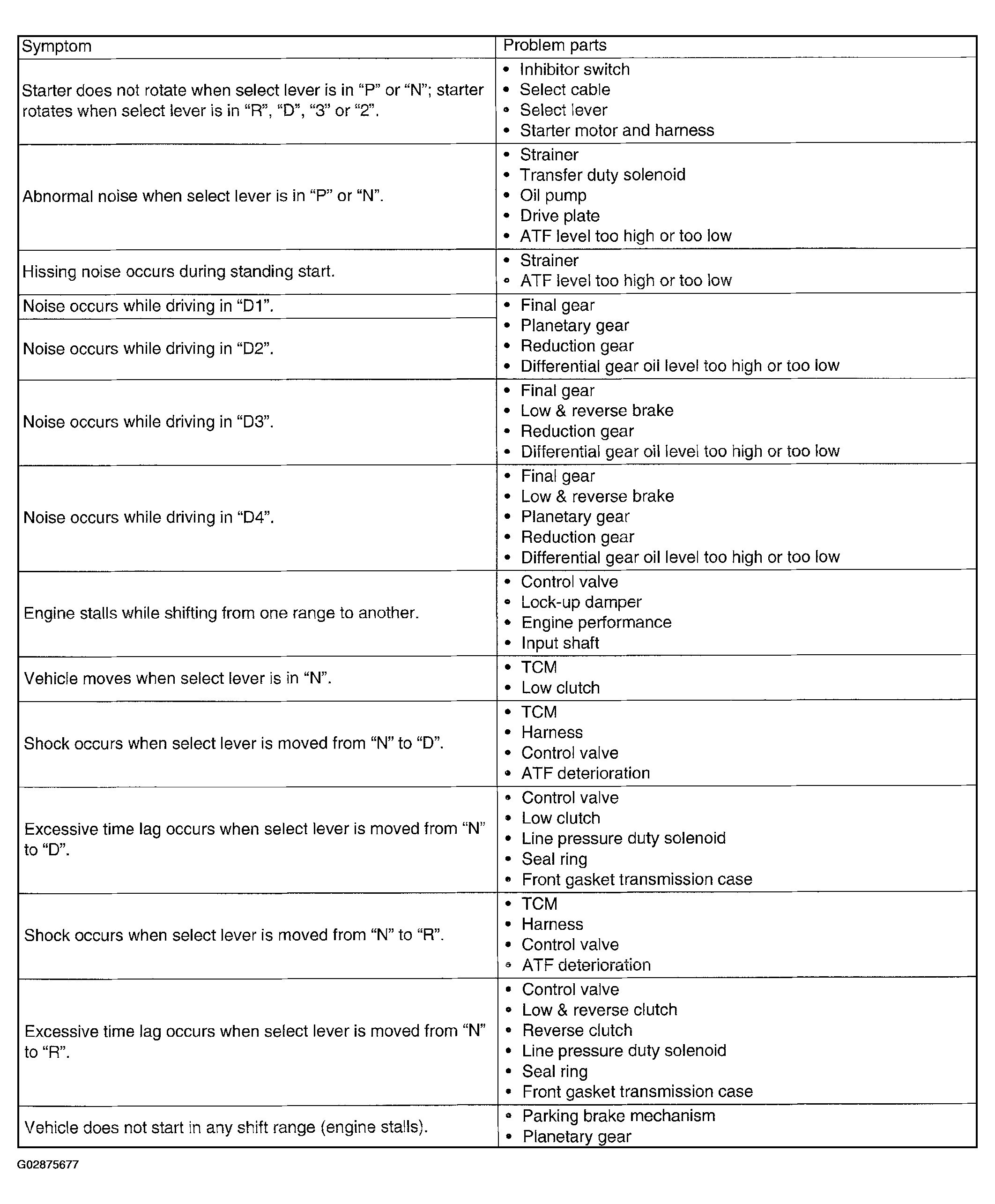

Fig 3: Symptom Related Diagnostic Inspection Chart (3 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

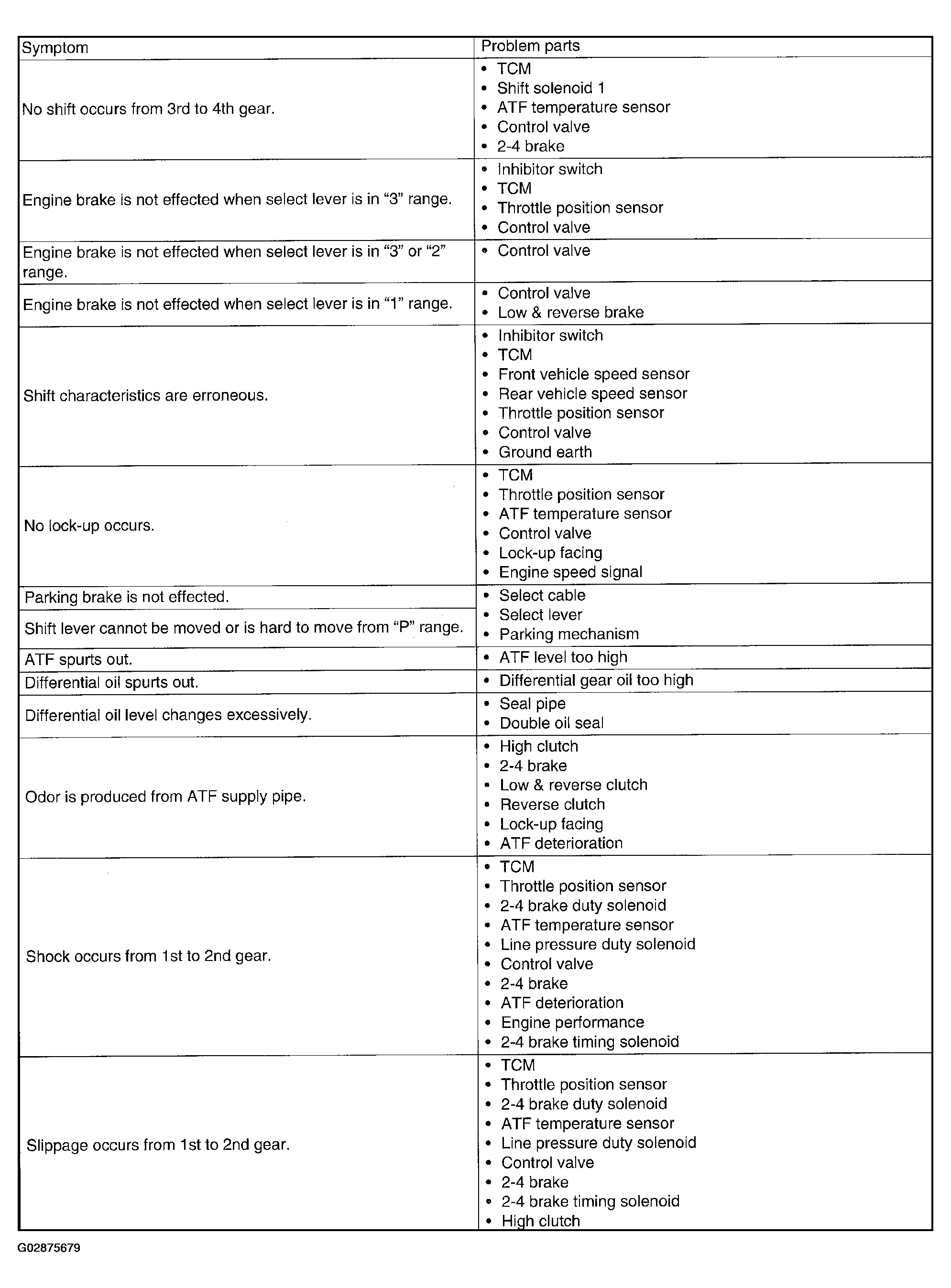

Fig 4: Symptom Related Diagnostic Inspection Chart (4 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

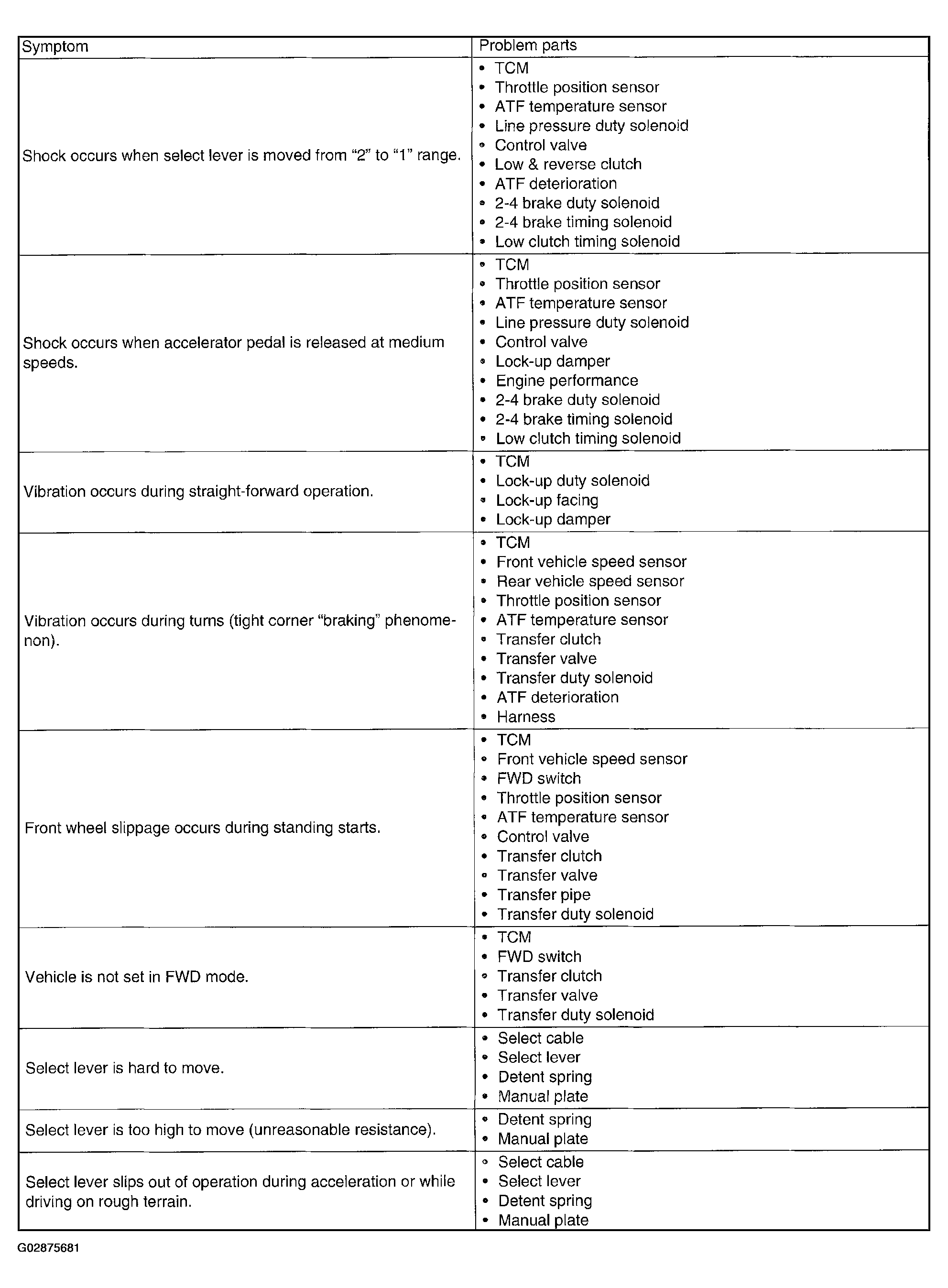

Fig 5: Symptom Related Diagnostic Inspection Chart (5 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

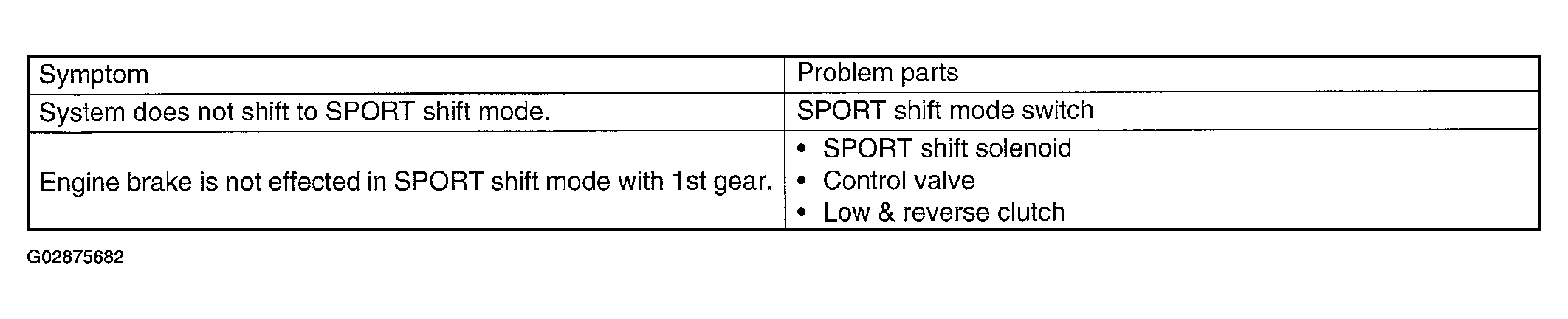

Fig 6: Symptom Related Diagnostic Inspection Chart (6 Of 6)

Courtesy of SUBARU OF AMERICA, INC.
