Control Module I/O Signal
›
Schematic
Control Module I/O Signal: Schematic

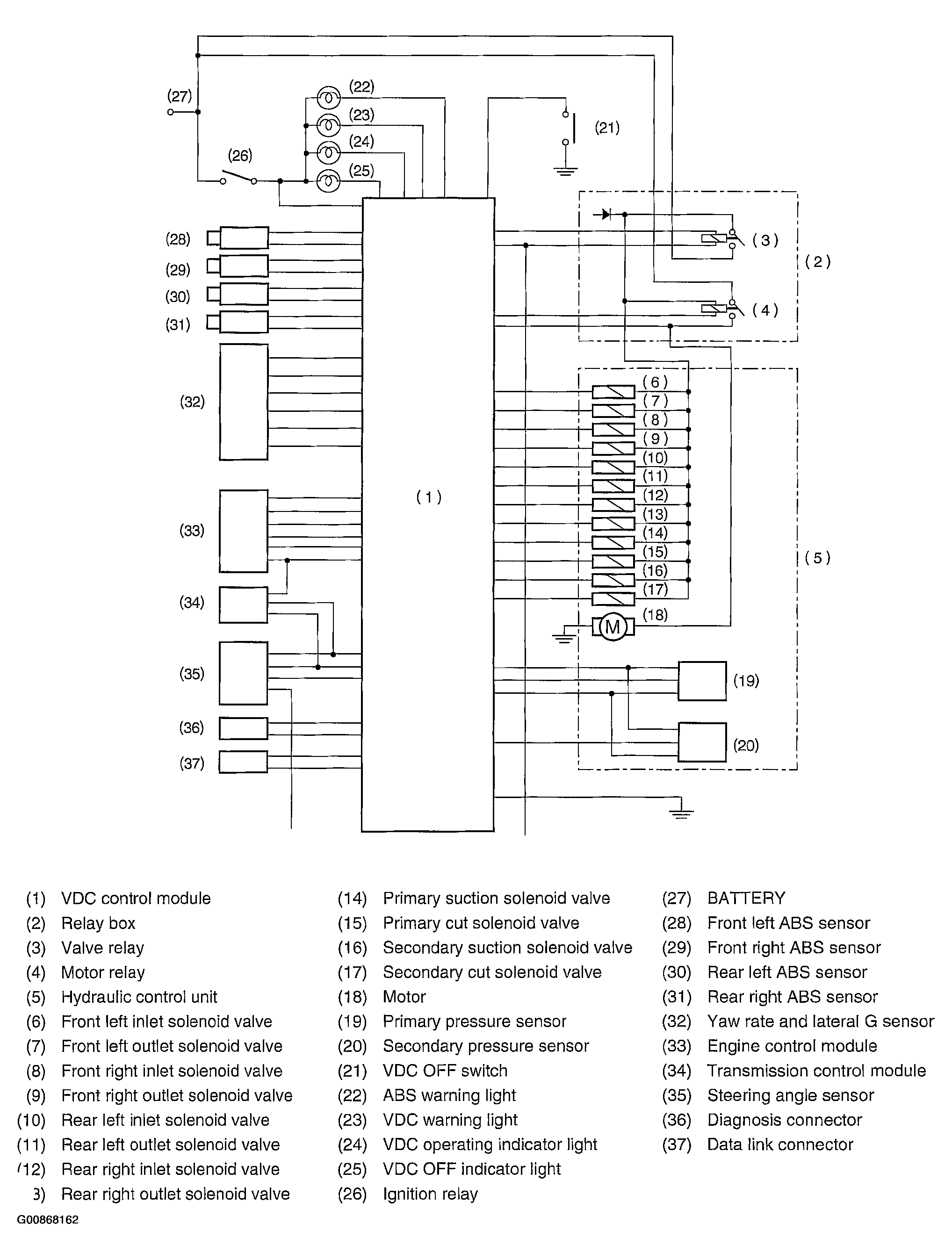

Fig 1: Control Module I/O Schematic Diagram
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
