Front Inner Remote: Removal

  1. Remove the door trim. Refer to REMOVAL , Front Door Trim.
  2. Remove the sealing cover. Refer to REMOVAL , Front Sealing Cover.
  3. Remove the two rod joints.
  4. Remove the screw, and detach the front inner remote.

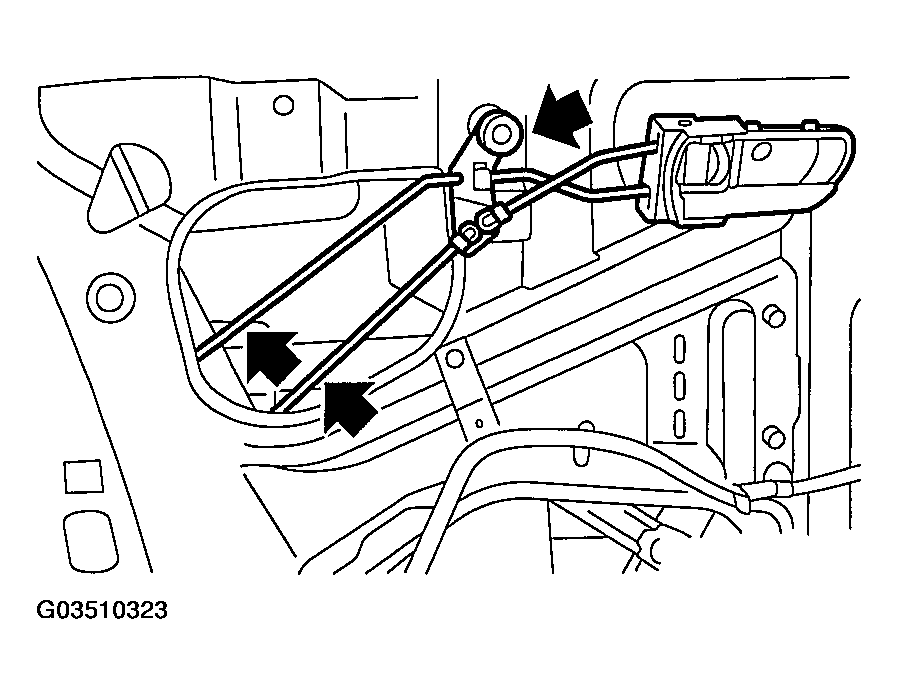

    Fig 1: Detaching Front Inner Remote
    G03510323Courtesy of SUBARU OF AMERICA, INC.
