General Description
›
Component
›
Door Lock Assembly
Door Lock Assembly

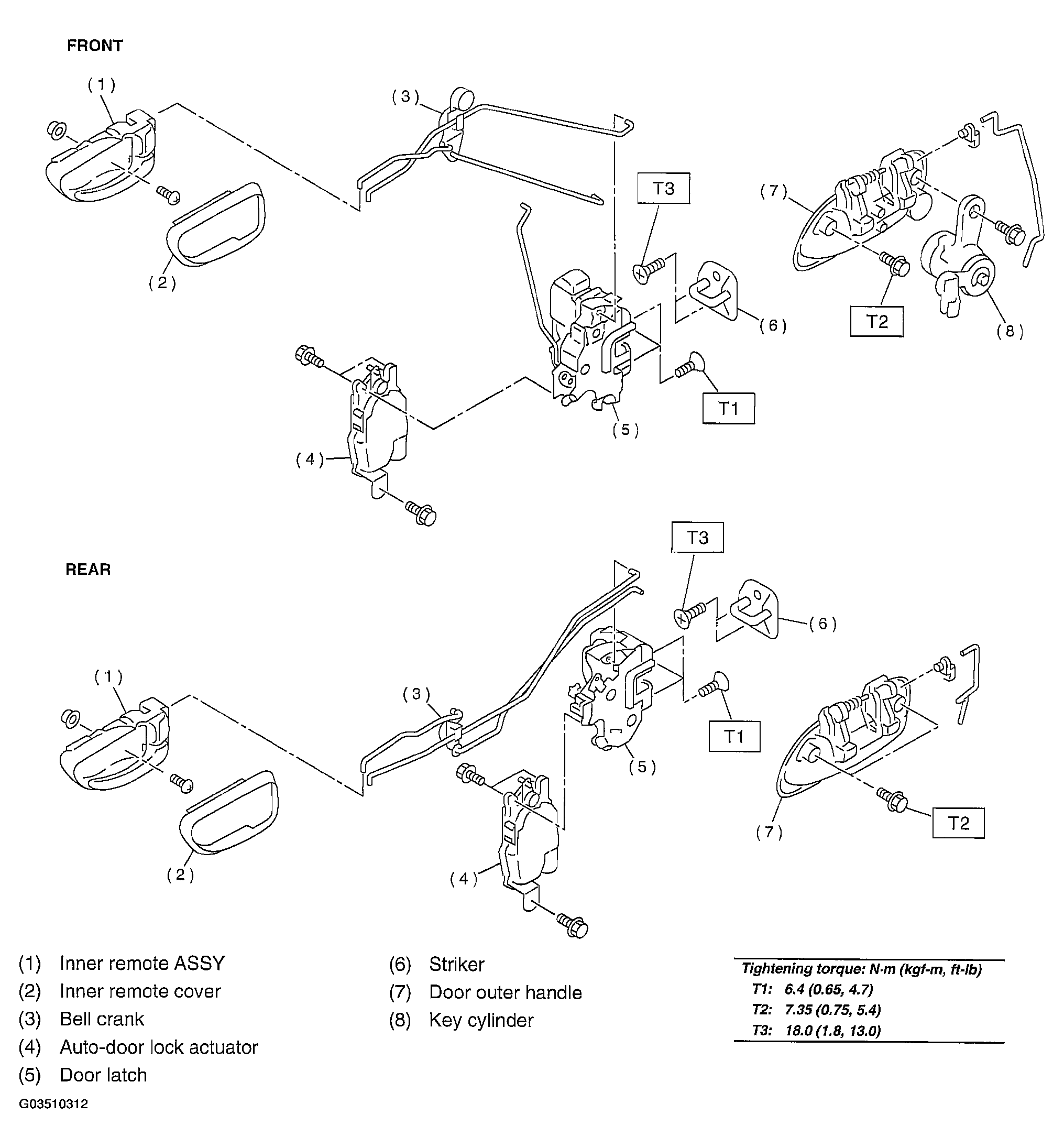

Fig 1: Identifying Door Lock Assembly Component
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
