Switch Back Gate Handle: Removal

  1. Remove switch back gate. Refer to REMOVAL , Switch Back Gate.
  2. Remove switch back gate inner cover.

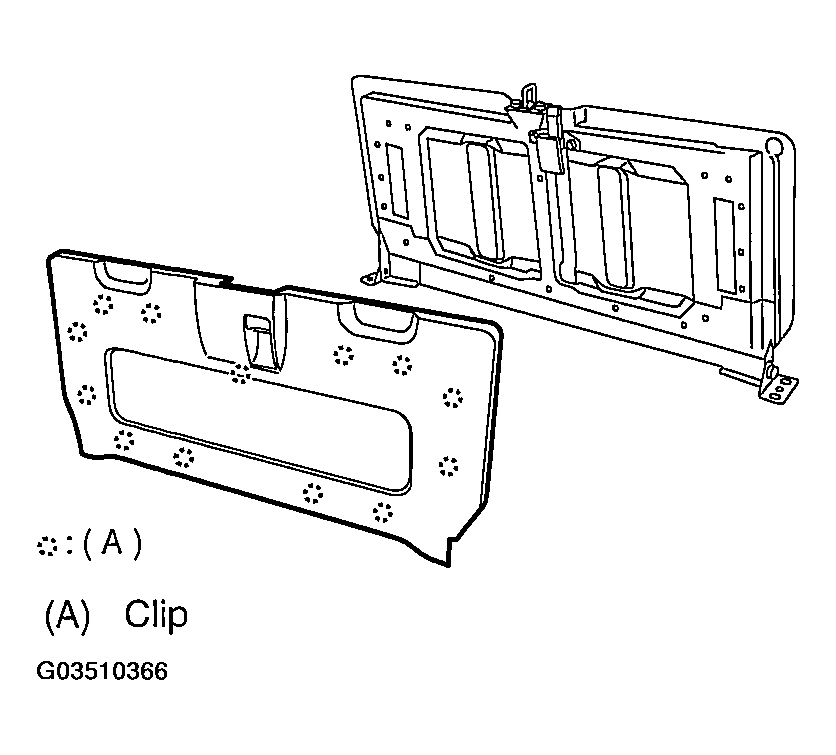

    Fig 1: Removing Switch Back Gate Inner Cover
    G03510366Courtesy of SUBARU OF AMERICA, INC.
  3. Remove bolts and detach switch back gate handle.
    Fig 2: Detaching Switch Back Gate Handle
    G03510367Courtesy of SUBARU OF AMERICA, INC.
