General Description
›
Component
›
Fuel Line
Fuel Line

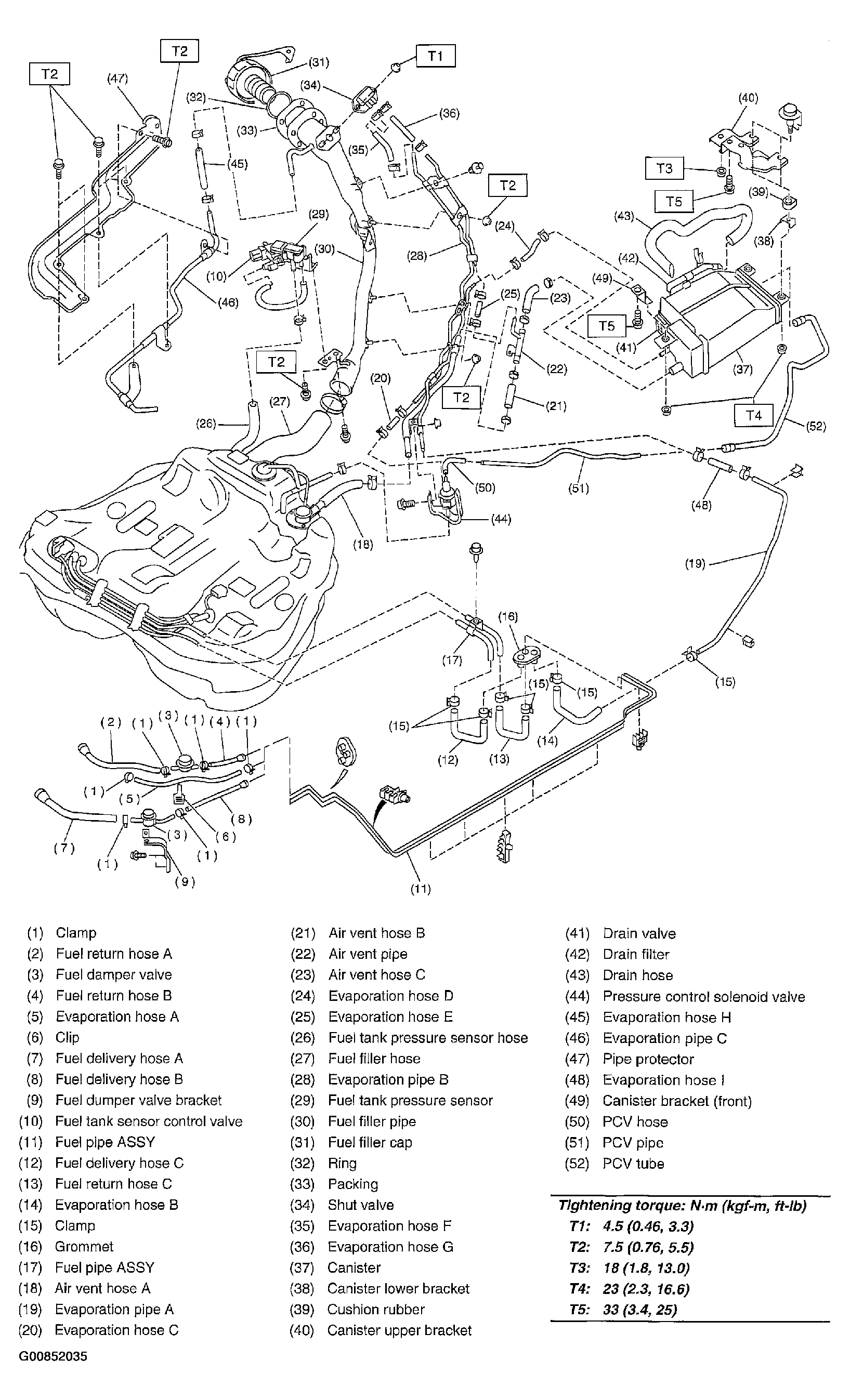

Fig 1: Fuel Line Replacement Components With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
