Main Relay: Removal

  1. Disconnect ground cable from battery.
    Fig 1: Disconnecting Ground Cable From Battery
    G00898845Courtesy of SUBARU OF AMERICA, INC.
  2. Remove lower inner trim of passenger side. Refer to REMOVAL , Lower Inner Trim.
  3. Disconnect connectors from main relay.
  4. Remove bolt which holds main relay bracket on body.

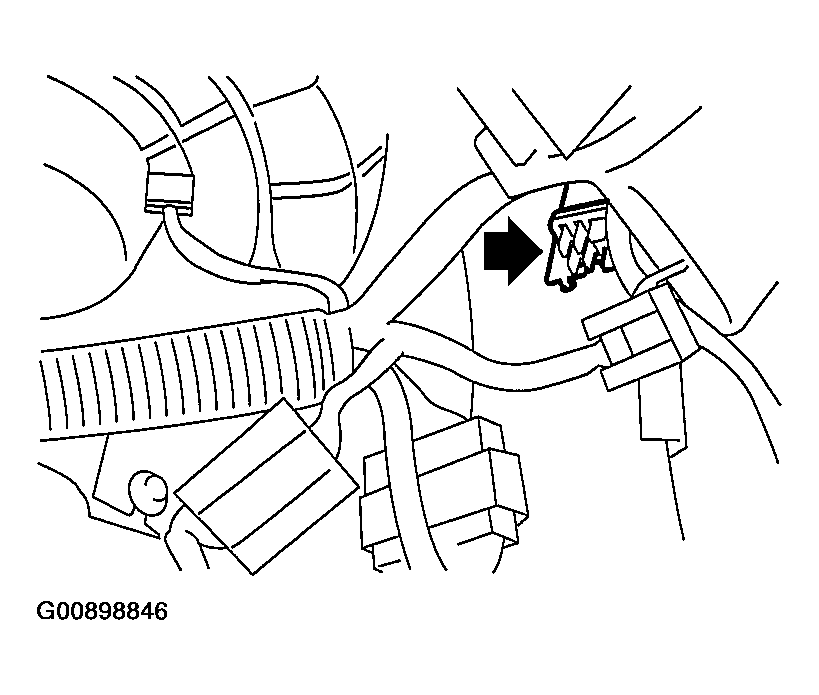

    Fig 2: Disconnecting Connectors From Main Relay
    G00898846Courtesy of SUBARU OF AMERICA, INC.
