Throttle Position Sensor: Removal

Disconnect ground cable from battery.

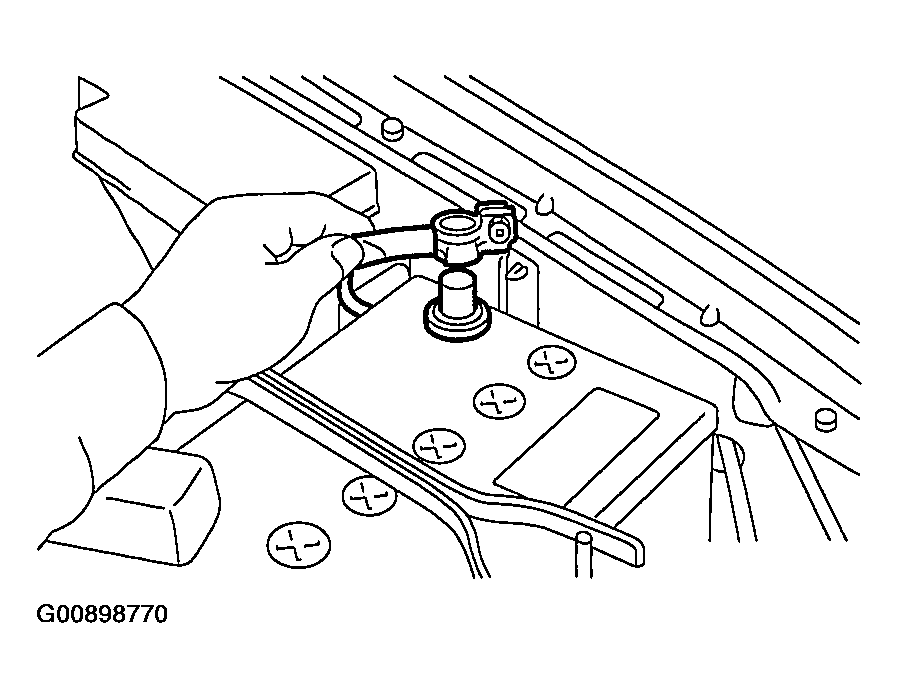

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Disconnect connector from throttle position sensor.

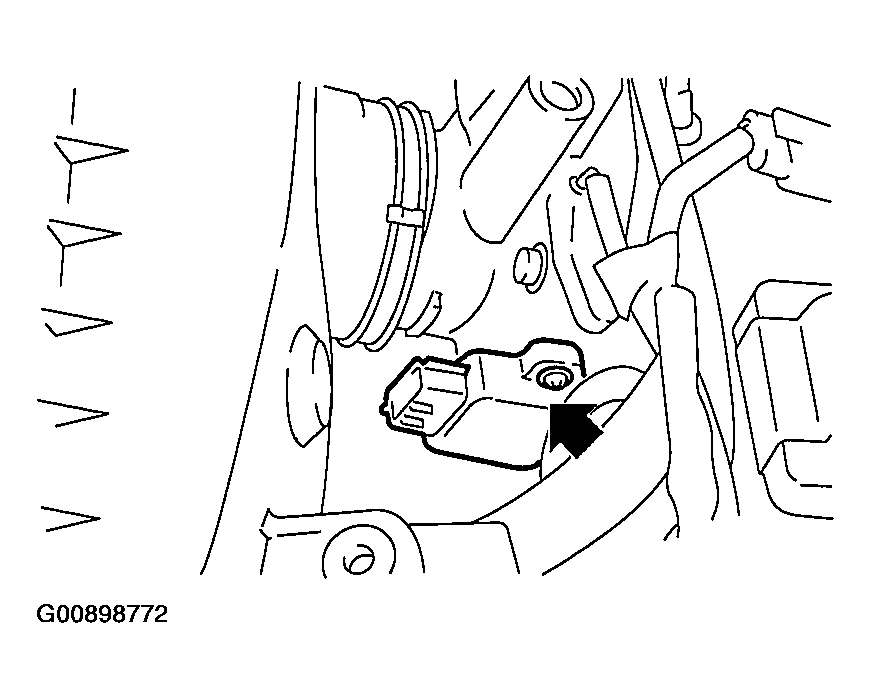

Fig 2: Disconnecting Connector From Throttle Position Sensor
Courtesy of SUBARU OF AMERICA, INC.
Remove throttle position sensor holding screws, and remove it.

Fig 3: Removing Throttle Position Sensor
Courtesy of SUBARU OF AMERICA, INC.
