Ignition Coil and Ignitor Assembly: Installation

Install in the reverse order of removal.
1. Tightening torque: 6.4 N-m (0.65 kgf-m, 4.7 ft-lb)
CAUTION: Be sure to connect spark plug cords to their proper positions. Failure to do so will damage unit.

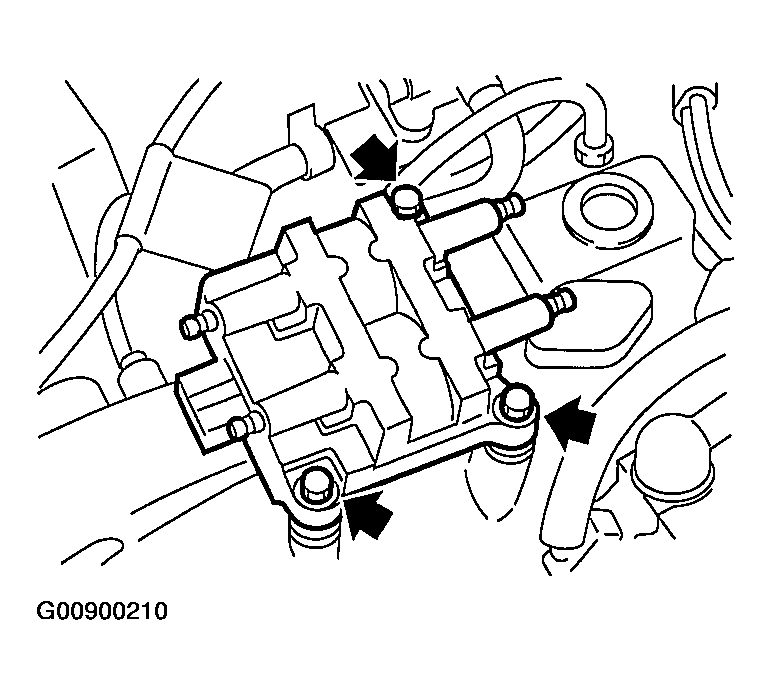

Fig 1: Installing Ignition Coil & Ignitor Assembly
Courtesy of SUBARU OF AMERICA, INC.
