Engine (Diagnostics) (H4SO)
›
Basic Diagnostic Procedure
›
Procedure
›
Engine
Basic Diagnostic Procedure: Procedure: Engine

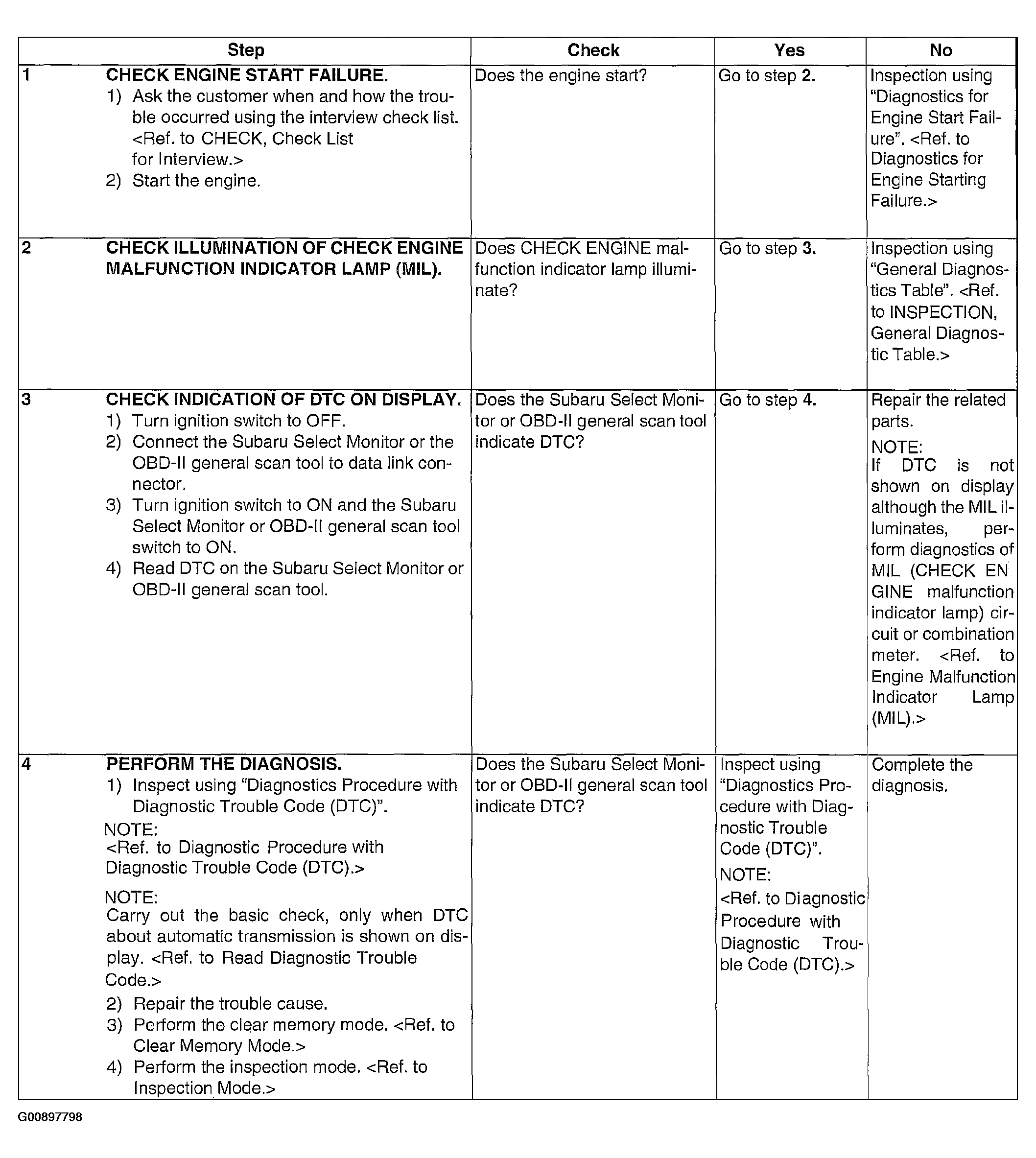

Fig 1: Identifying Basic Diagnostic Procedure Of Engine
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
