Data Link Connector: Note

This connector is used both for OBD-II general scan tools and the Subaru Select Monitor.
Terminal No. 4 to No. 6 of the data link connector is used for the Subaru Select Monitor signal.
CAUTION: Do not connect any scan tools other than the OBD-II general scan tools and the Subaru Select Monitor, because the circuit for the Subaru Select Monitor may be damaged.

Fig 1: Identifying Data Link Connector
Courtesy of SUBARU OF AMERICA, INC.

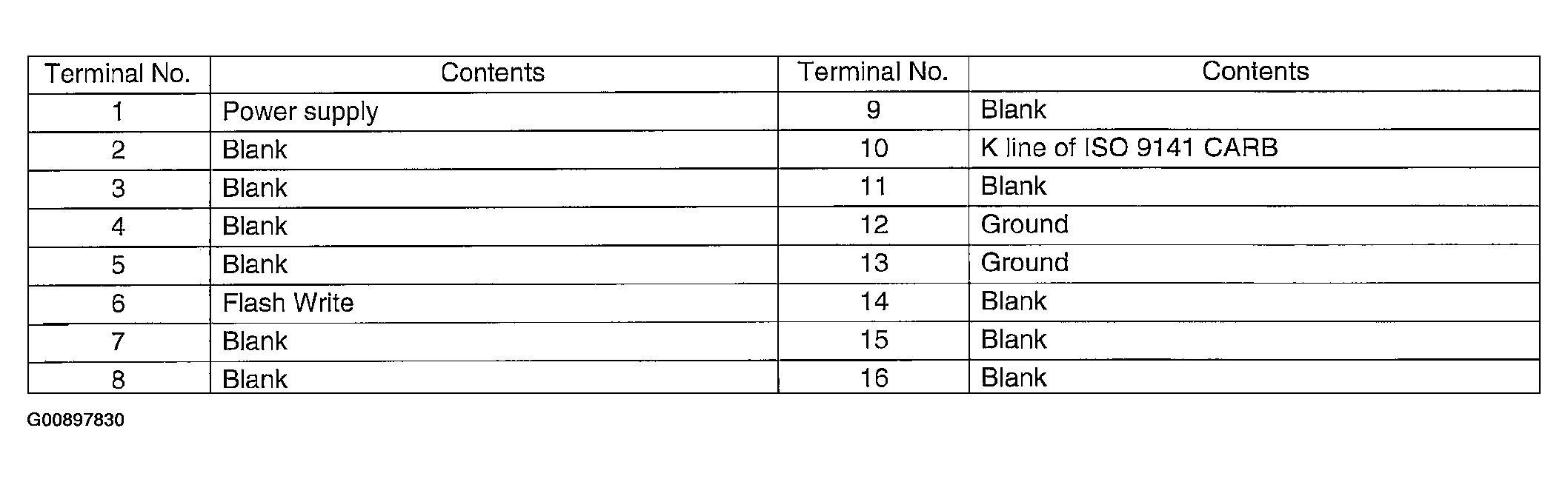

Fig 2: Identifying Terminal Number & Contents Table
Courtesy of SUBARU OF AMERICA, INC.
