Ignition Control System

CAUTION: After repair or replacement of malfunctioning parts, conduct clear memory mode. Refer to CLEAR MEMORY MODE and Inspection Mode. Refer to INSPECTION MODE .

WIRING DIAGRAM:

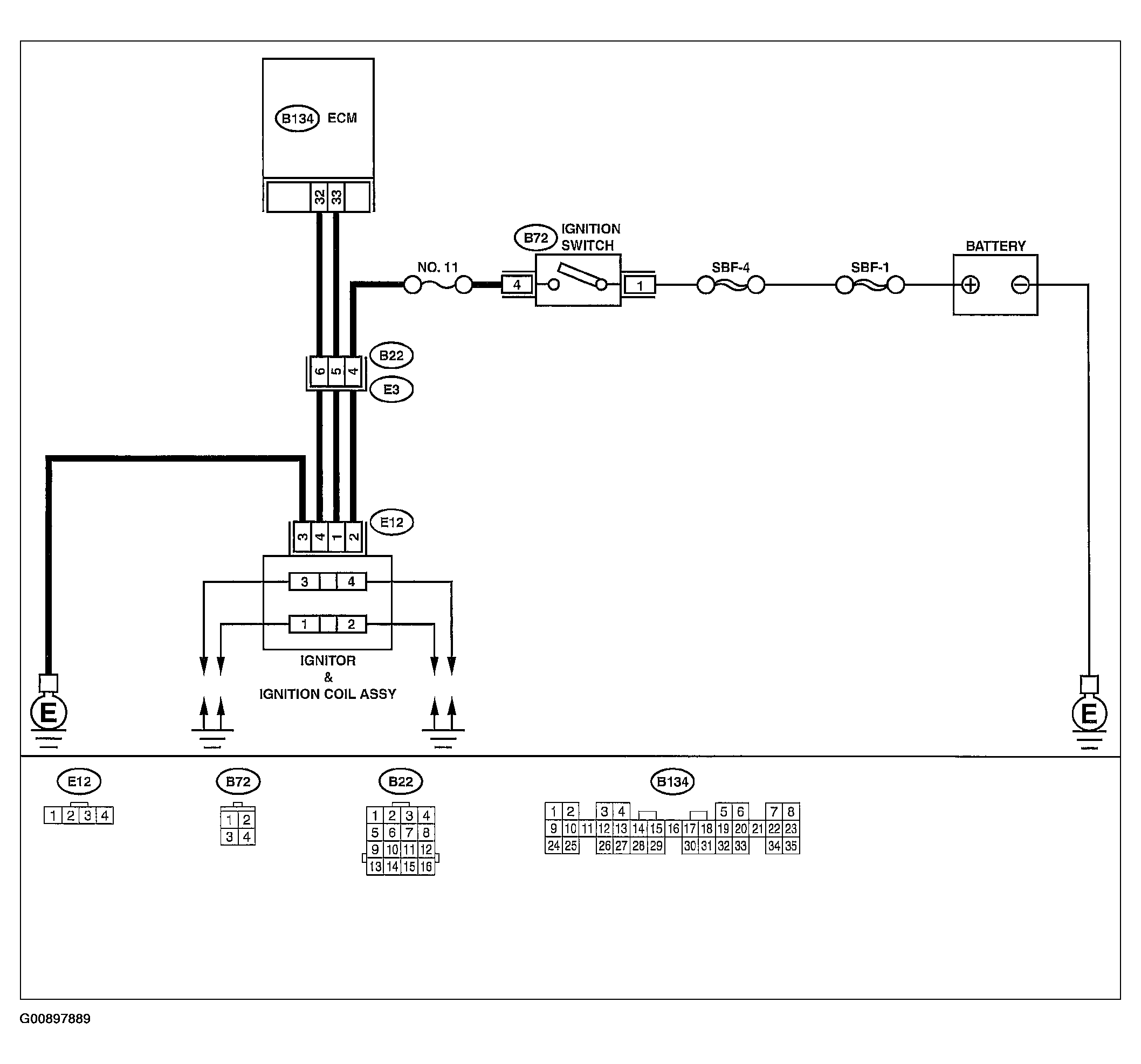

Fig 1: Ignition Control System Wiring Diagram
Courtesy of SUBARU OF AMERICA, INC.

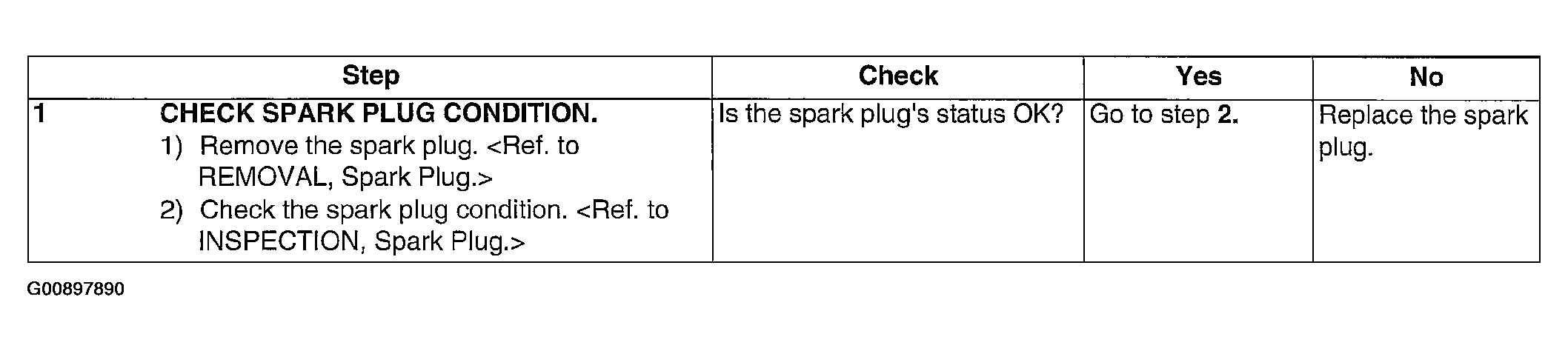

Fig 2: Diagnostics For Engine Starting Failure Symptoms Chart (1 Of 3)
Courtesy of SUBARU OF AMERICA, INC.

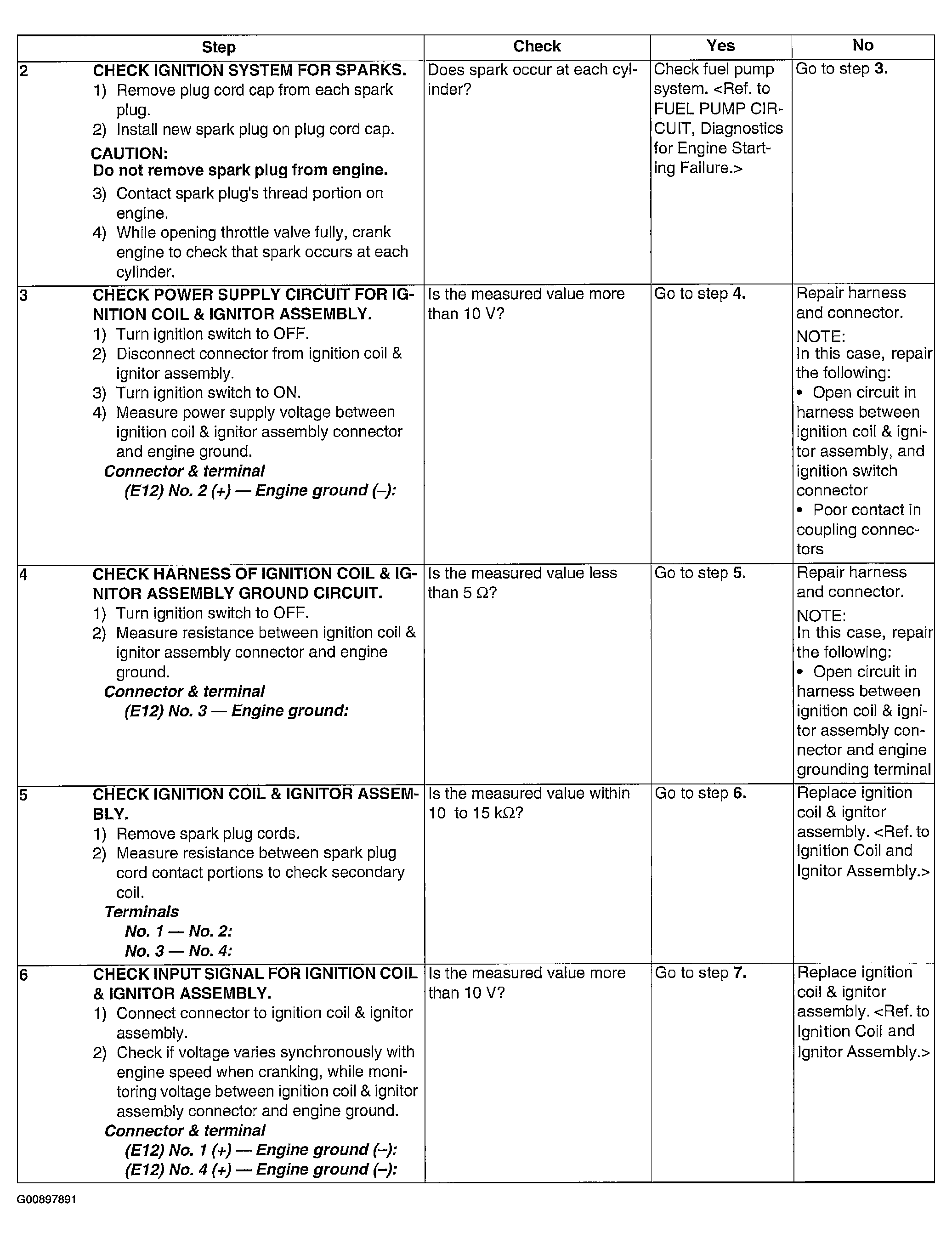

Fig 3: Diagnostics For Engine Starting Failure Symptoms Chart (2 Of 3)
Courtesy of SUBARU OF AMERICA, INC.

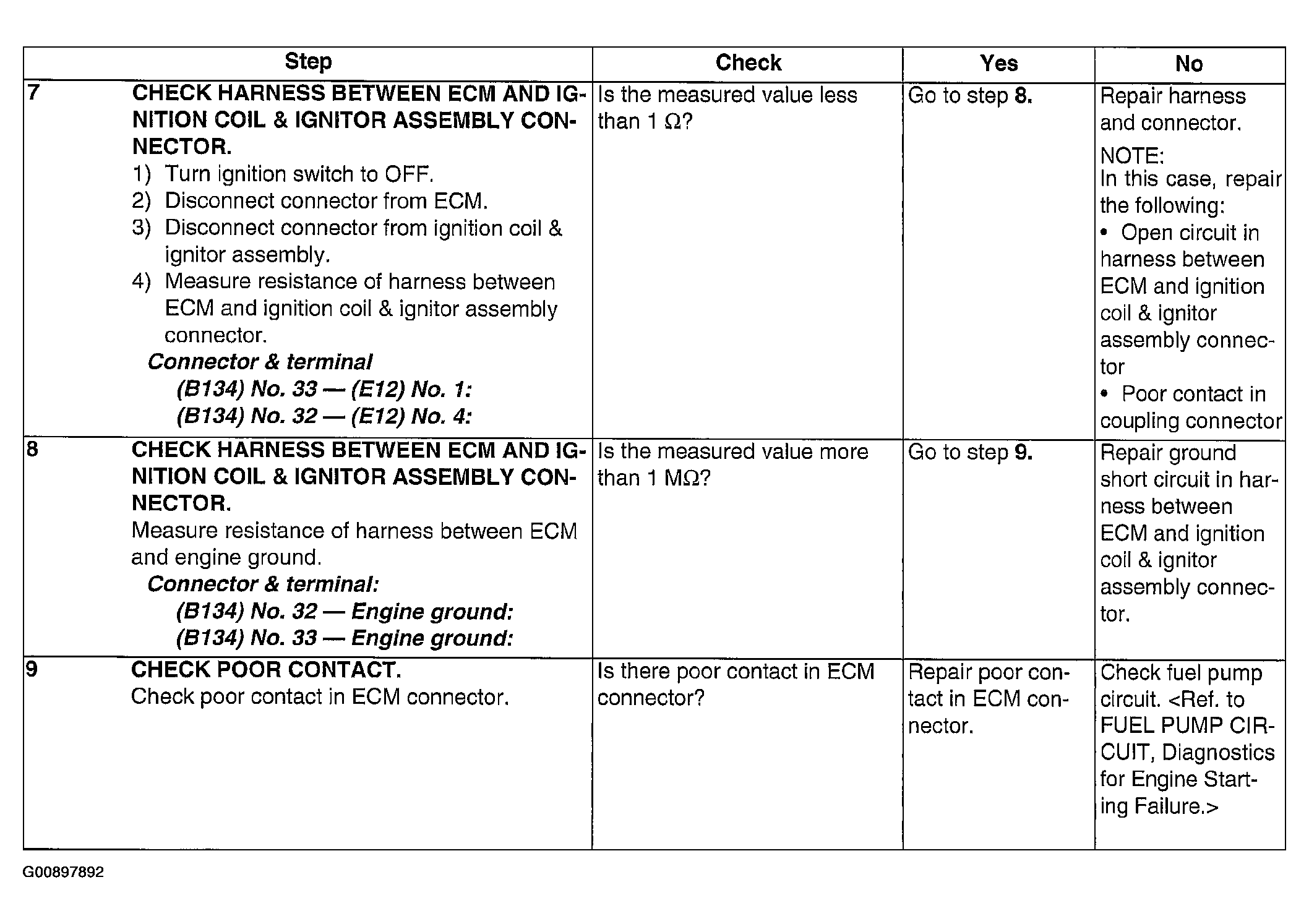

Fig 4: Diagnostics For Engine Starting Failure Symptoms Chart (3 Of 3)
Courtesy of SUBARU OF AMERICA, INC.
