Engine (Diagnostics) (H4SO)
›
Diagnostics for Engine Starting Failure
›
Procedure
Diagnostics for Engine Starting Failure: Procedure

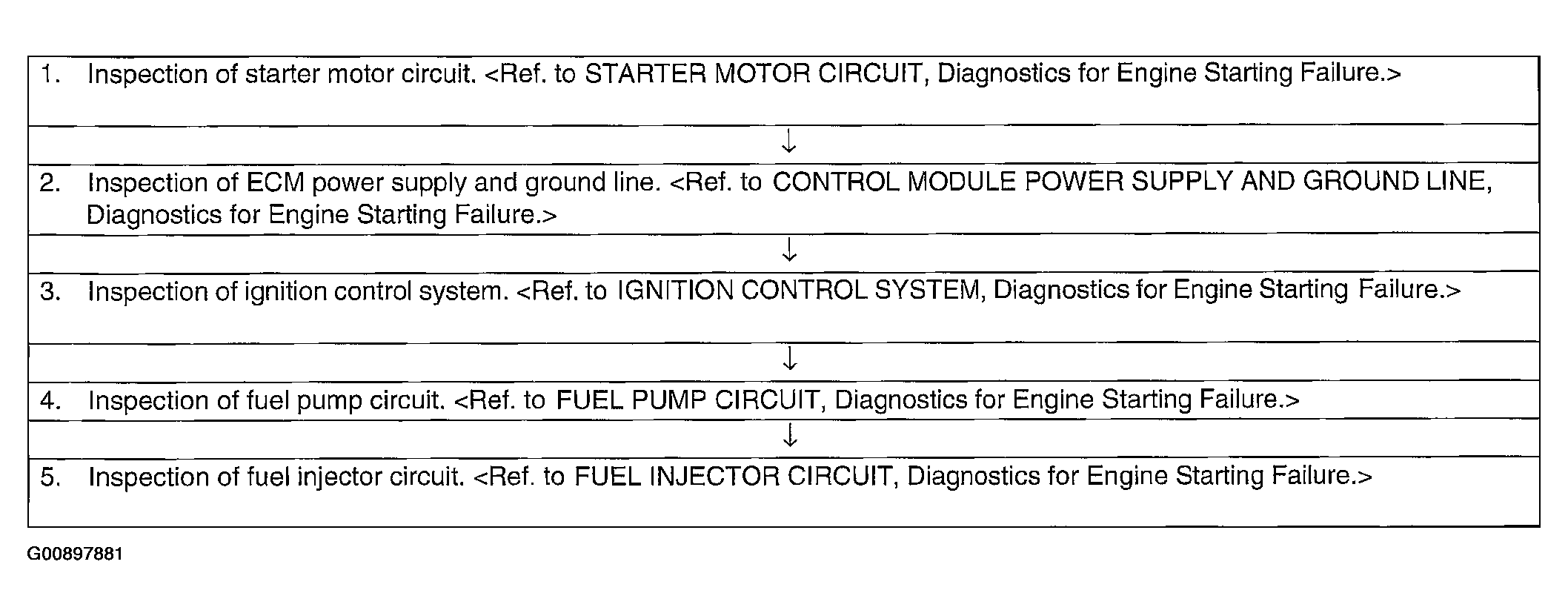

Fig 1: Diagnostics For Engine Starting Failure Flow Procedure
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
