Baja Base, Automatic
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Engine (Diagnostics) (H4SO)
›
Engine Control Module (ECM) I/O Signal
›
Electrical Specification
Electrical Specification

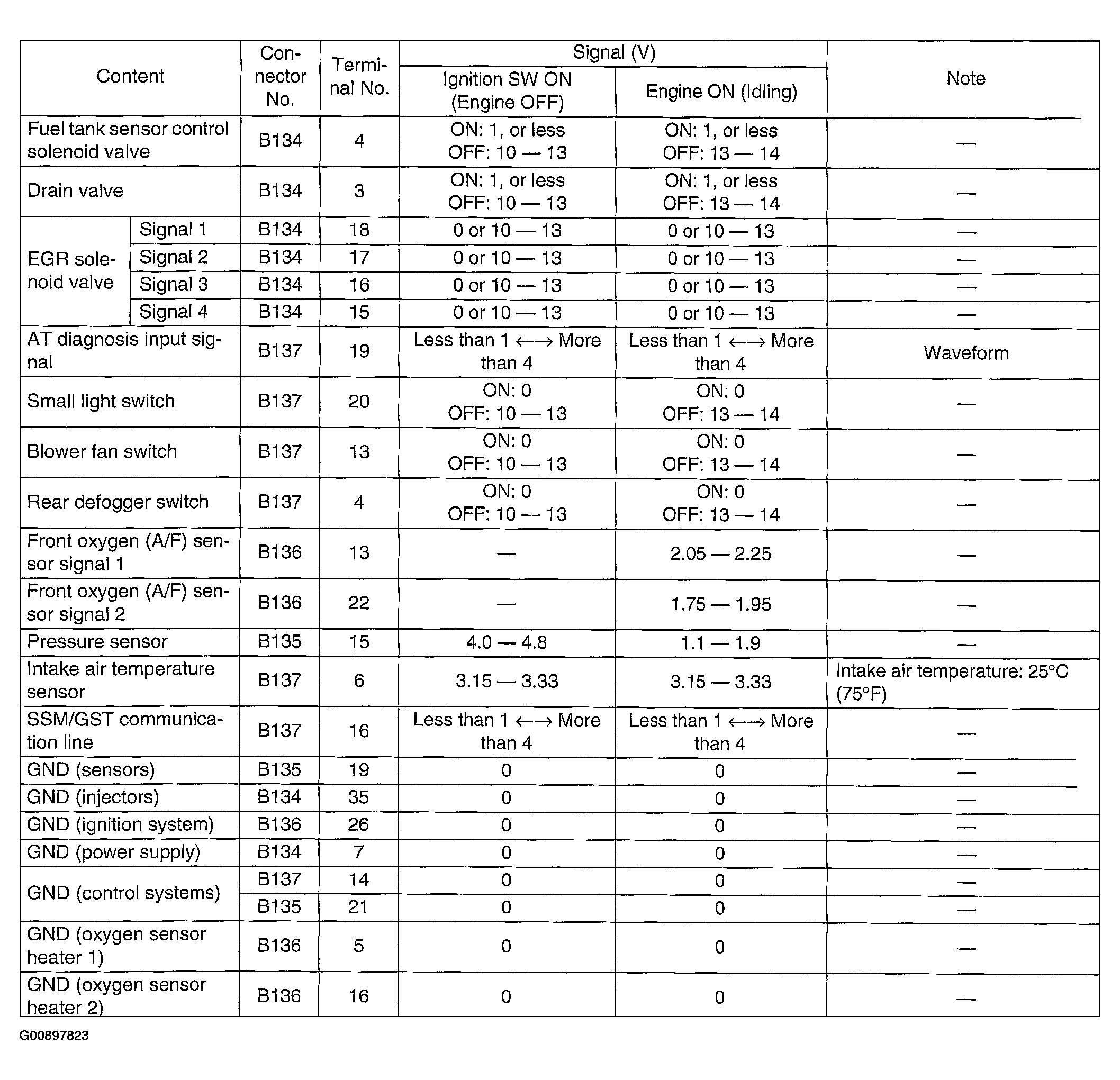

Fig 1: Identifying Engine Control Module (ECM) I/O Signal (Electrical Specification) (1 Of 4)
Courtesy of SUBARU OF AMERICA, INC.

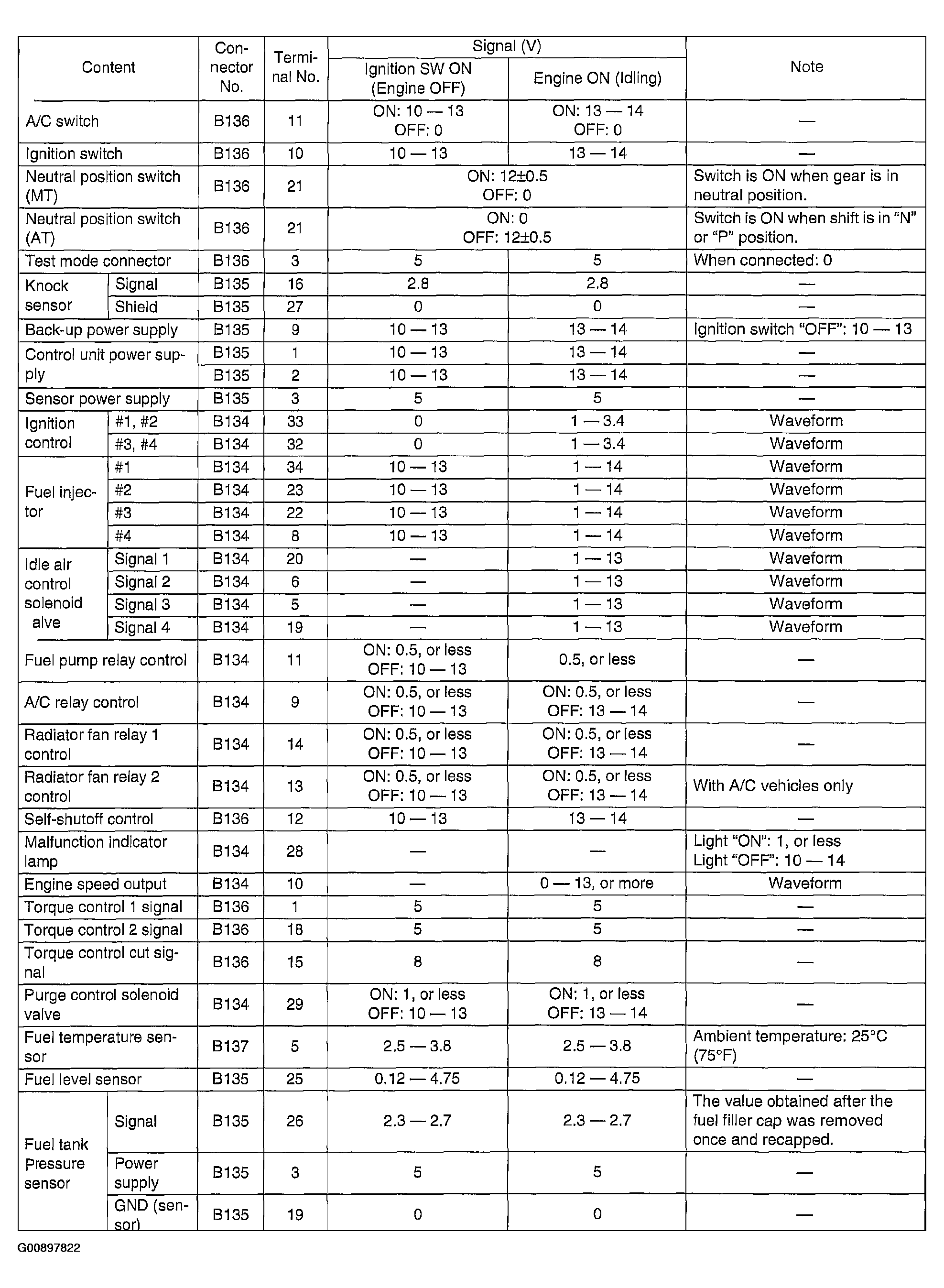

Fig 2: Identifying Engine Control Module (ECM) I/O Signal (Electrical Specification) (2 Of 4)
Courtesy of SUBARU OF AMERICA, INC.

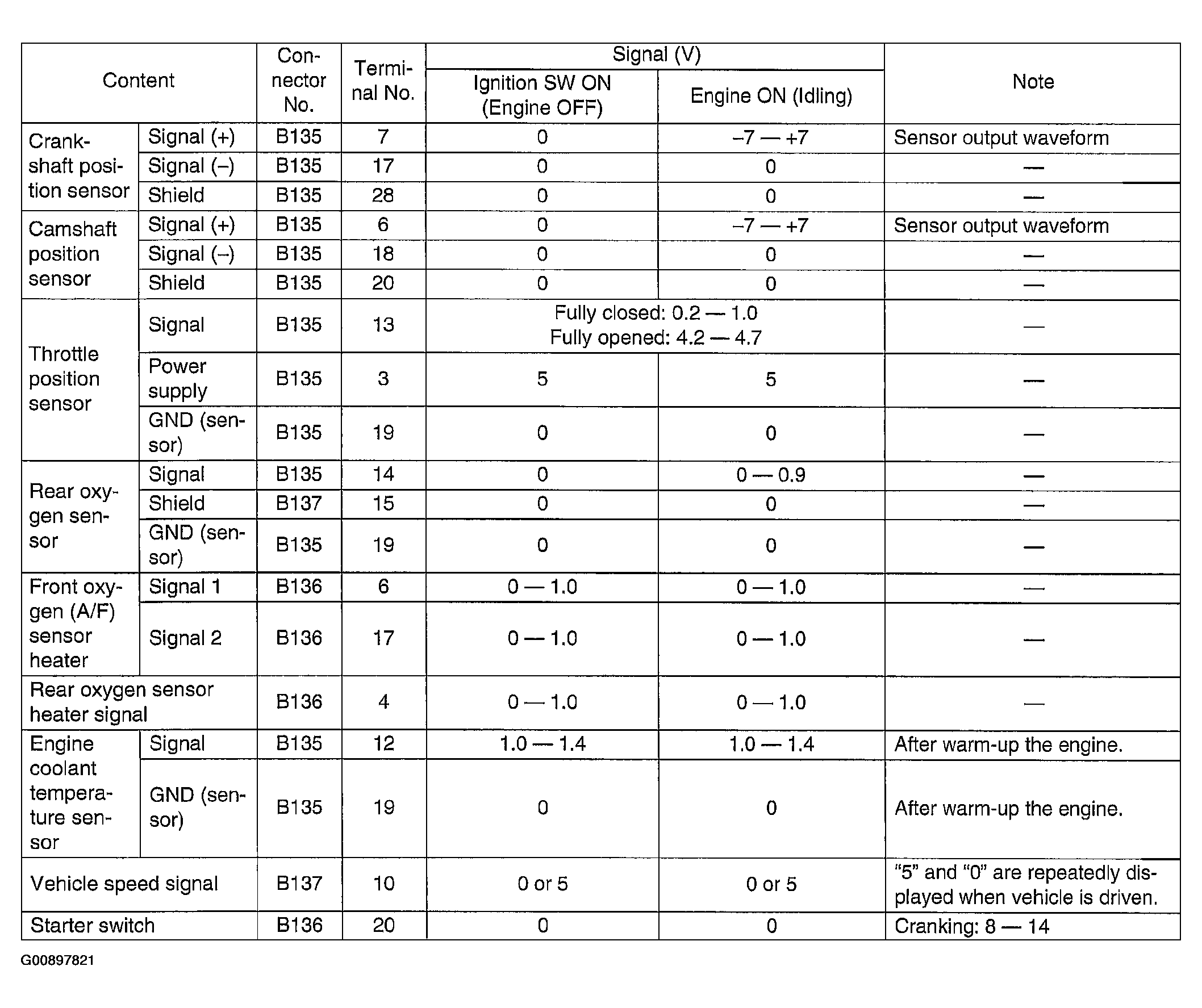

Fig 3: Identifying Engine Control Module (ECM) I/O Signal (Electrical Specification) (3 Of 4)
Courtesy of SUBARU OF AMERICA, INC.

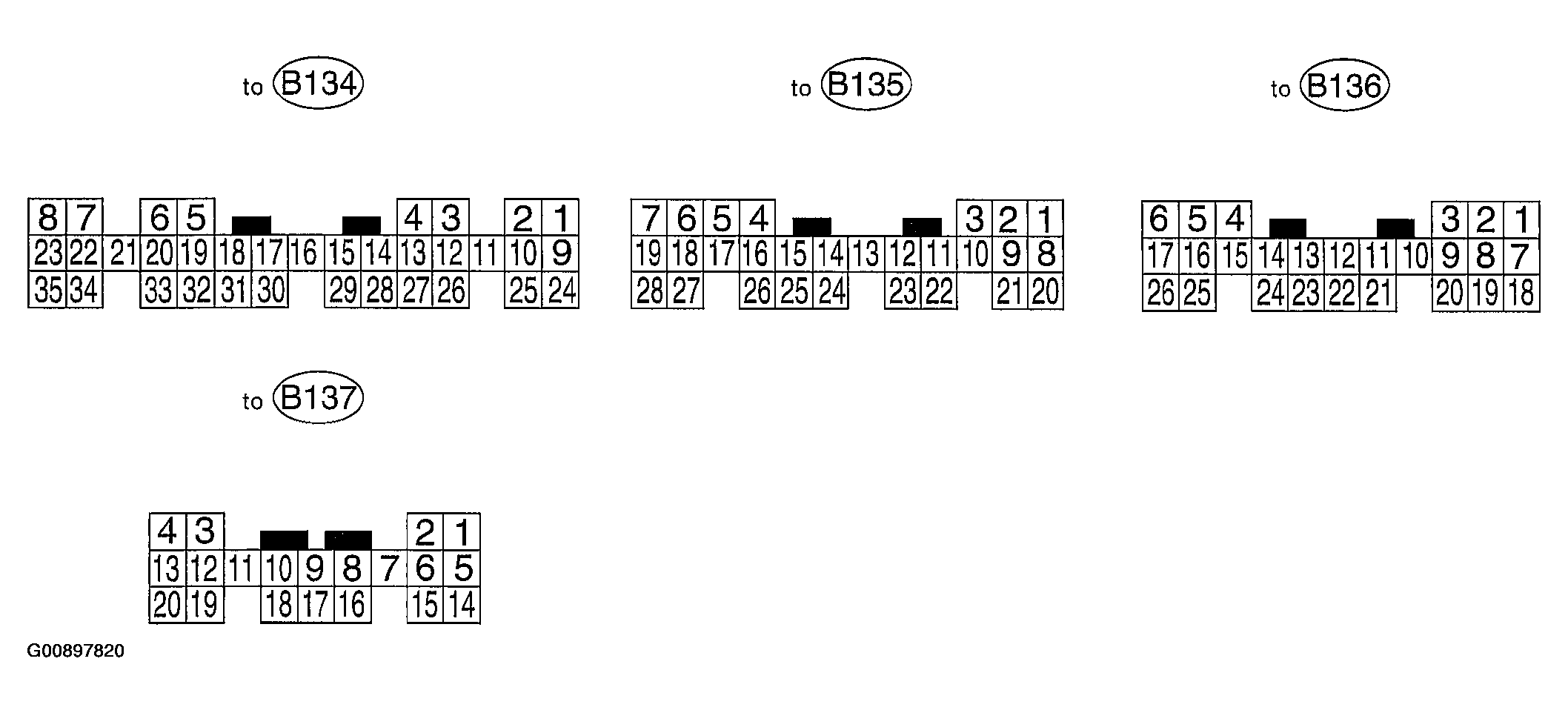

Fig 4: Identifying Engine Control Module (ECM) I/O Signal (Electrical Specification) (4 Of 4)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
