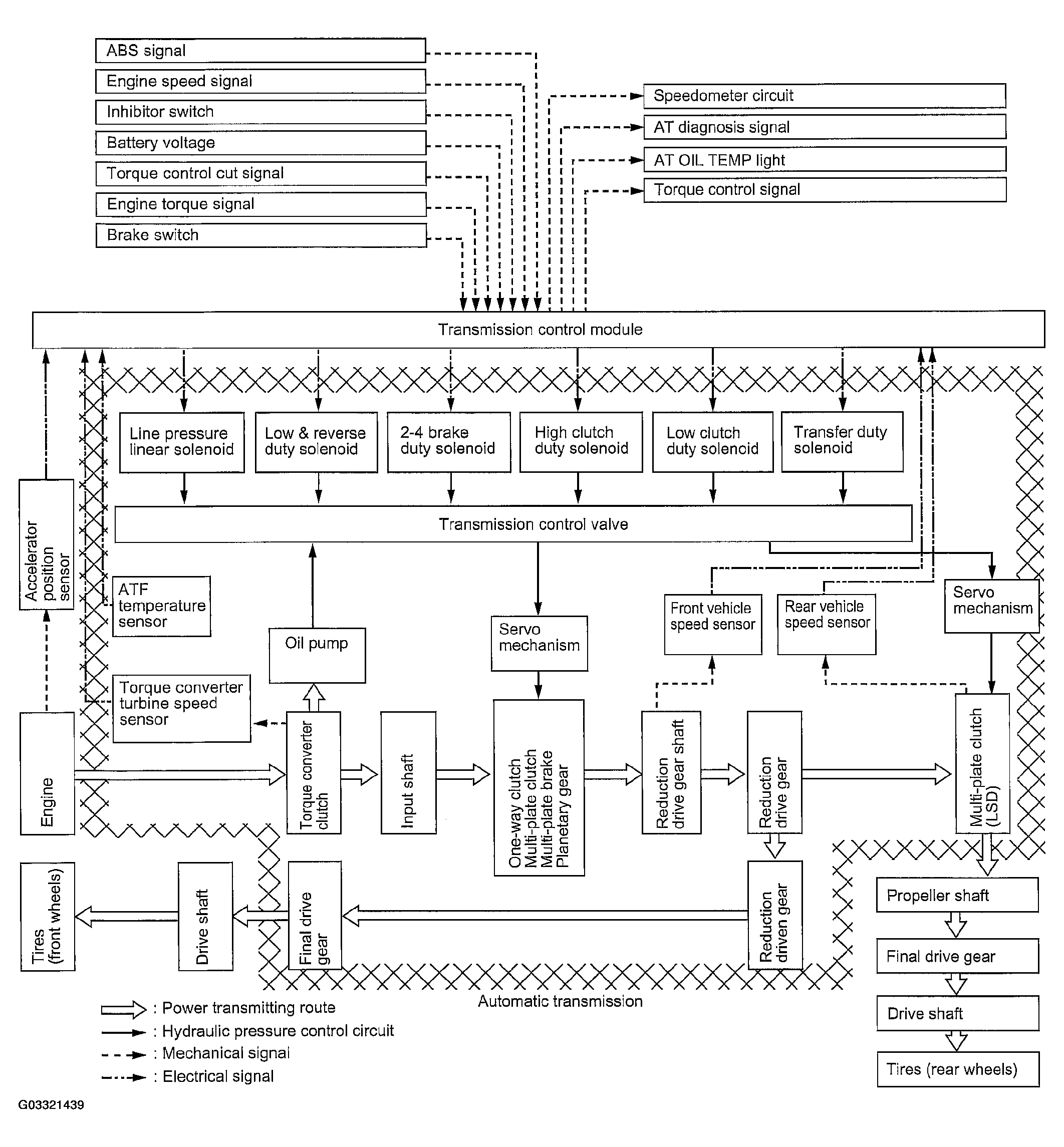

Home › Subaru › 2004 › Baja Base, Automatic › Repair and Diagnosis › Transmission › Automatic Trans › Automatic Transmission - Mechanism & Function › Transmission Control Module (TCM) › Schematic Diagrams › Turbo Models
