FixVault
Home
›
Subaru
›
2004
›
Baja Base, Automatic
›
Repair and Diagnosis
›
Transmission
›
Automatic Trans
›
Automatic Transmission
›
Dropping Resistor
›
Inspection
Dropping Resistor: Inspection

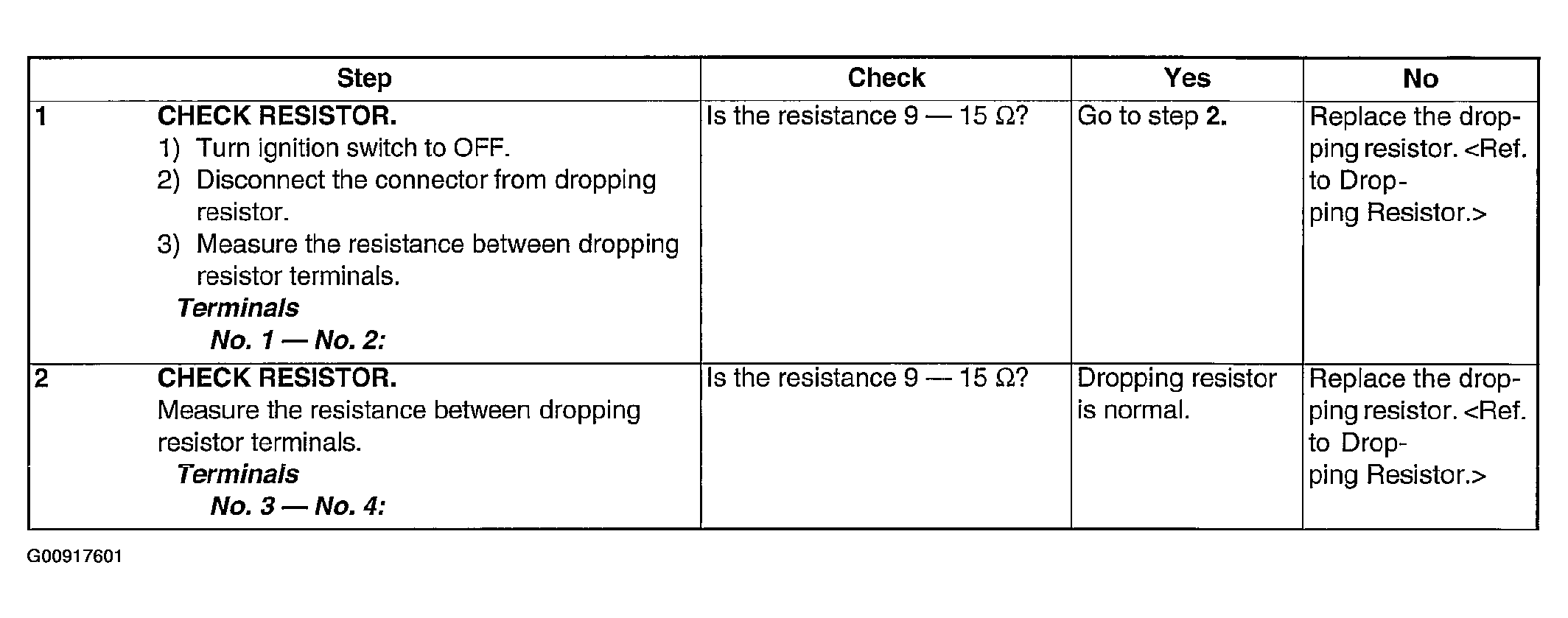

Fig 1: Inspection Chart
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
