Oil Charger Pipe: Installation

Install the oil charger pipe with new O-ring.
1. Tightening torque: 41 N.m (4.2 kgf.m, 30.4 ft.lb)

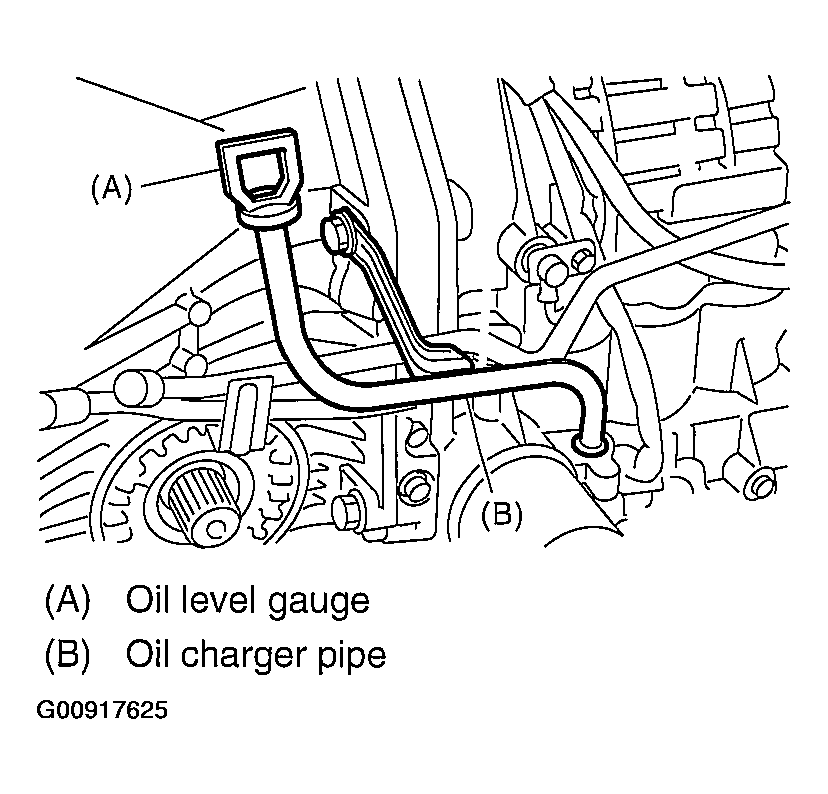

Fig 1: Installing Oil Charger Pipe With O-Ring
Courtesy of SUBARU OF AMERICA, INC.
Install starter motor.
2.5 L model

Refer to INSTALLATION , Starter.

3.0 L model

Refer to INSTALLATION , Starter.
Install the air cleaner case or air intake chamber. (Non-TURBO model)
Except 2.5 L U5 model

Refer to INSTALLATION , Air Clean Case.

2.5 L U5 model

Refer to INSTALLATION , Air Intake Chamber.

3.0 L model

Refer to INSTALLATION , Air Intake Chamber.
Install intercooler. (TURBO model)
Refer to INSTALLATION , Intercooler.
