Reduction Drive Gear: Removal

  1. Remove the transmission assembly from the vehicle. Refer to REMOVAL .
  2. Remove rear vehicle speed sensor, and separate the transmission case and extension case. Refer to REMOVAL .
  3. Remove the reduction driven gear. Refer to REMOVAL .
  4. Using ST, extract the reduction drive gear.

    ST1 499737000 PULLER

    ST2 899524100 PULLER SET

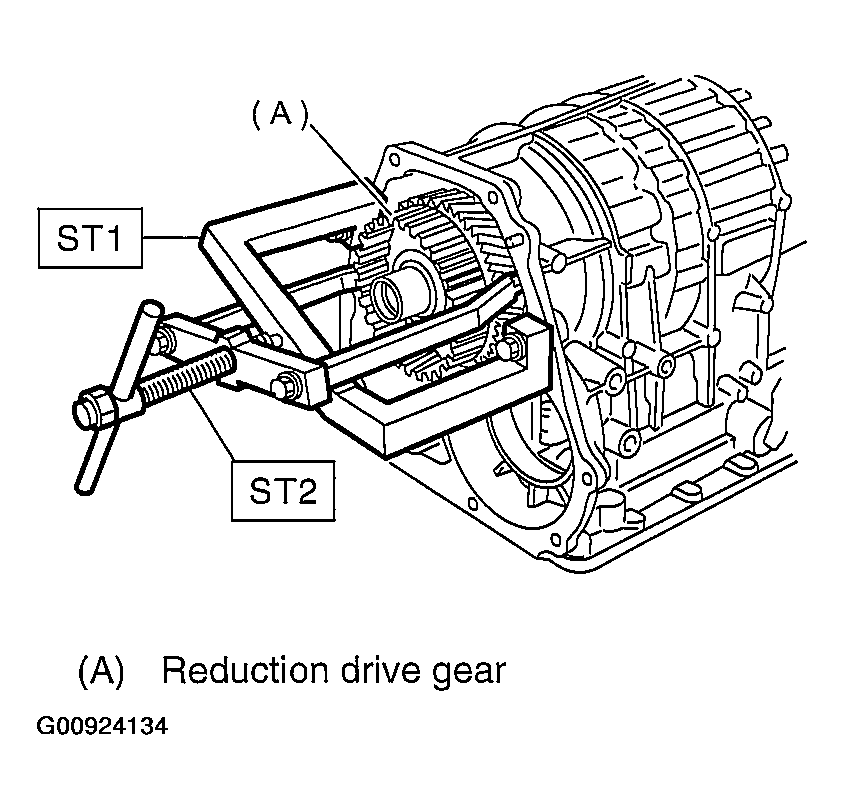

Fig 1: Extracting Reduction Drive Gear Using Special Tool
G00924134Courtesy of SUBARU OF AMERICA, INC.
