Torque Converter Clutch Assembly: Removal

Remove the transmission assembly from the vehicle. Refer to REMOVAL .
Extract the torque converter clutch and oil pump shaft horizontally.
NOTE: Be careful not to scratch the bushing inside the oil pump shaft.

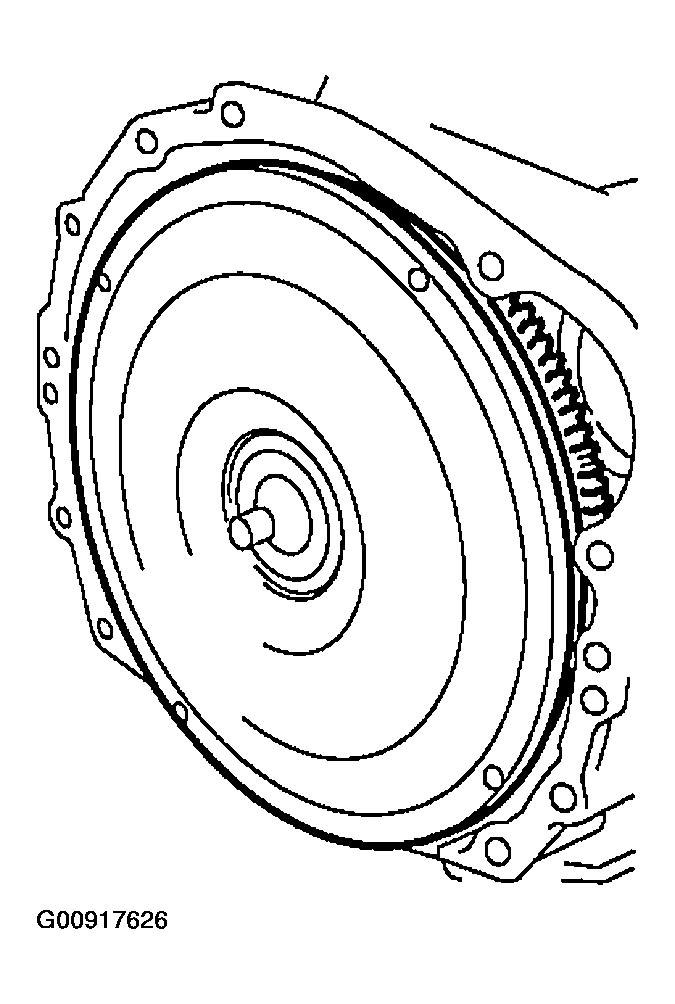

Fig 1: Identifying Torque Converter Clutch Assembly
Courtesy of SUBARU OF AMERICA, INC.
Remove the input shaft.
NOTE: When the torque converter clutch assembly is removed, the input shaft will come out.

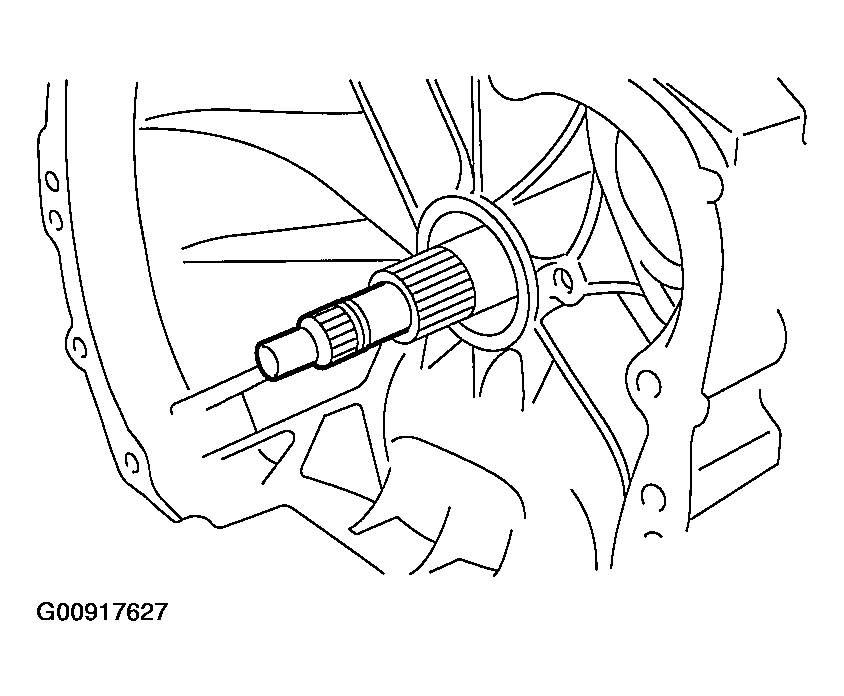

Fig 2: Removing Input Shaft
Courtesy of SUBARU OF AMERICA, INC.
Remove the oil pump shaft from torque converter clutch as necessary.
