Electrical Specification

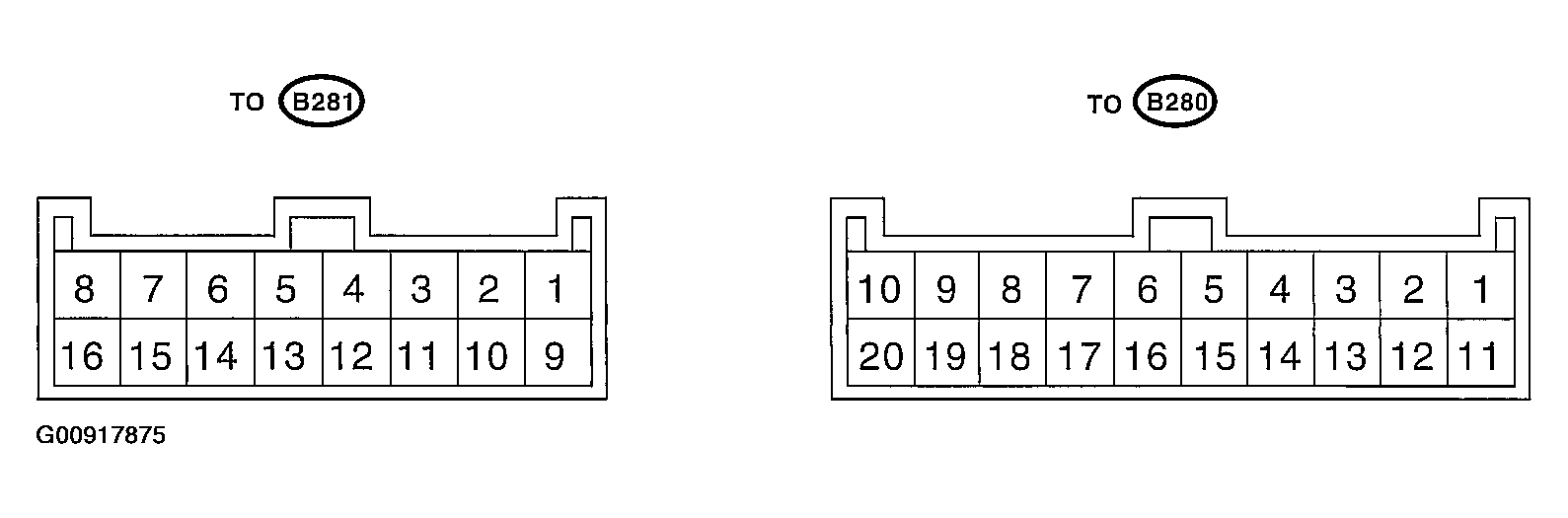

Fig 1: AT Shift Lock System Connector
G00917875Courtesy of SUBARU OF AMERICA, INC.

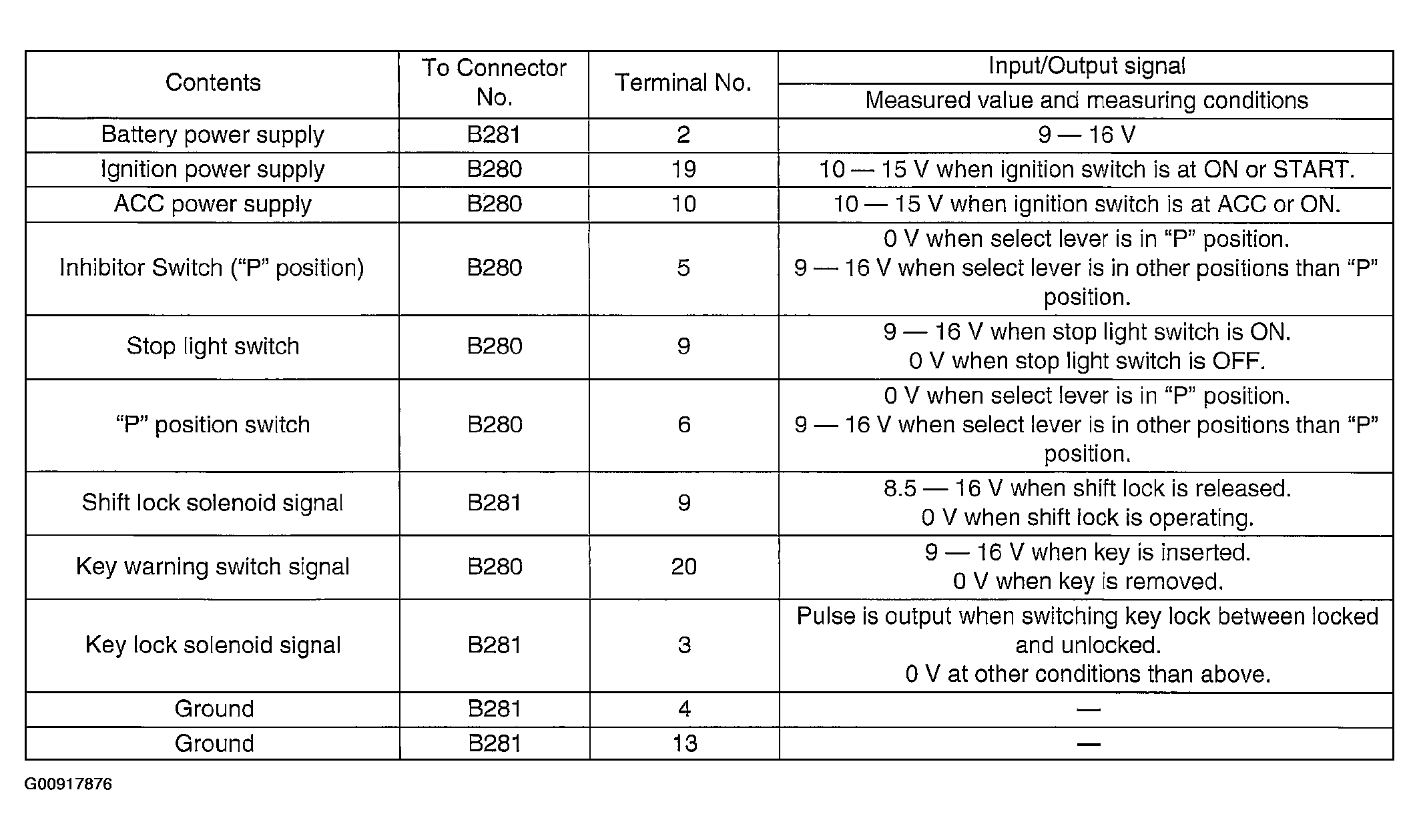

Fig 2: AT Shift Lock System Reference Table
G00917876Courtesy of SUBARU OF AMERICA, INC.
