Subaru
›
2004
›
Baja Base, Automatic
›
Repair and Diagnosis
›
Transmission
›
Transmission Control Systems
›
A/T & M/T Control Systems
›
AT Shift Lock System
›
Integrated Module Power Supply And Ground Line
›
Wiring Diagram:
Wiring Diagram:

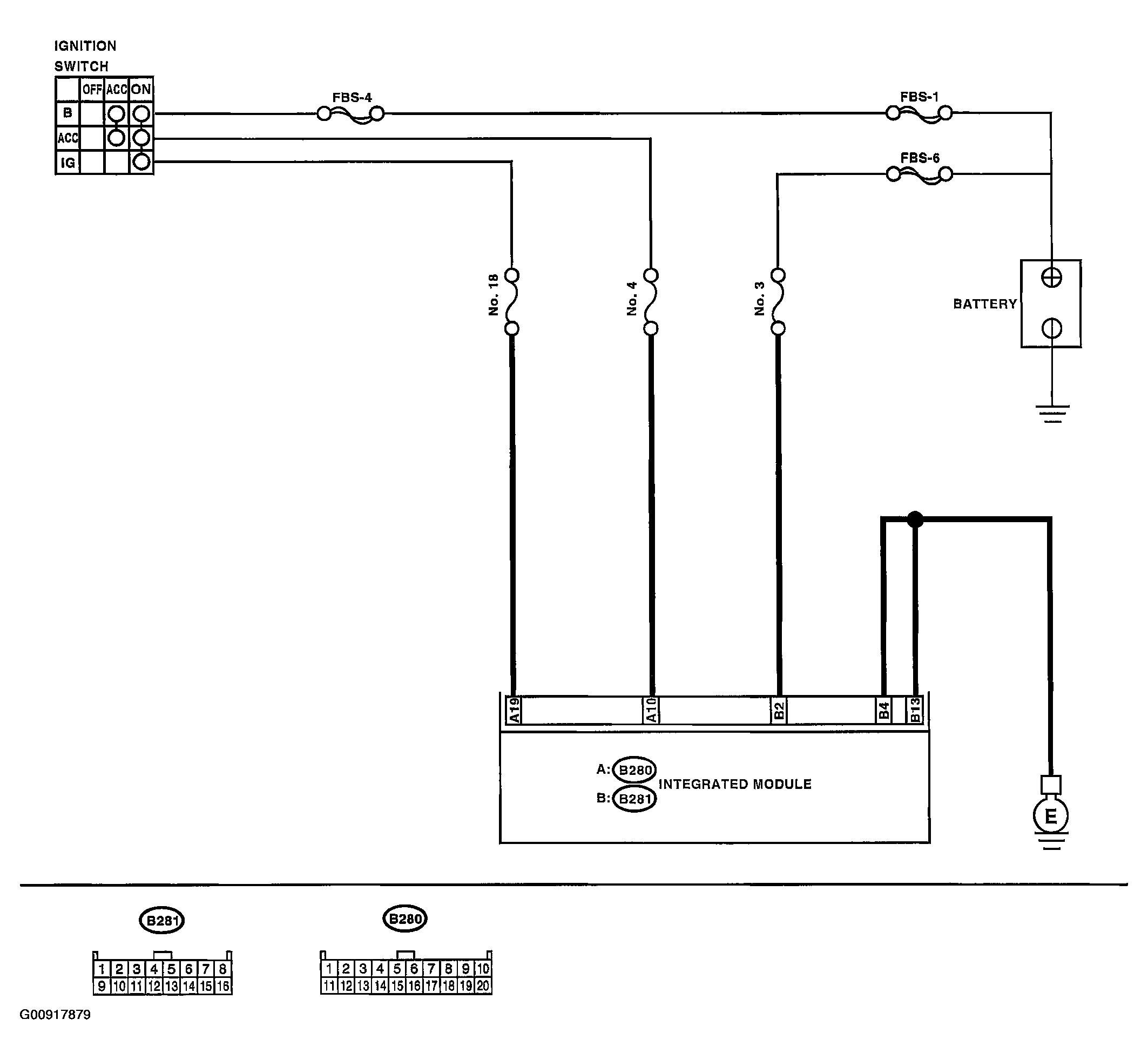

Fig 1: Integrated Module Power Supply & Ground Line Wiring Diagram
Courtesy of SUBARU OF AMERICA, INC.

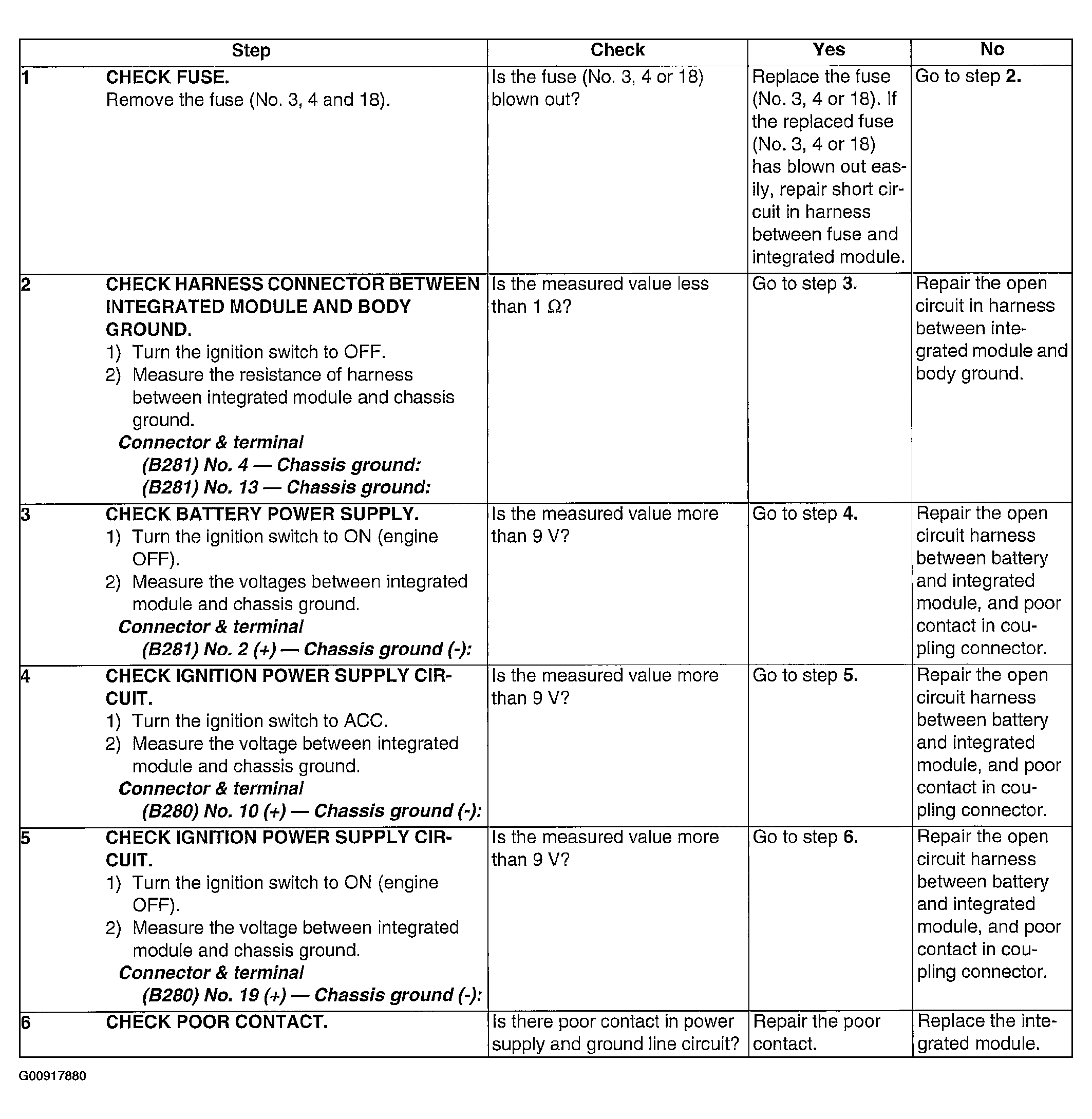

Fig 2: Inspection Chart
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
