Subaru
›
2004
›
Baja Base, Automatic
›
Repair and Diagnosis
›
Transmission
›
Transmission Control Systems
›
A/T & M/T Control Systems
›
AT Shift Lock System
›
Schematic
AT Shift Lock System: Schematic

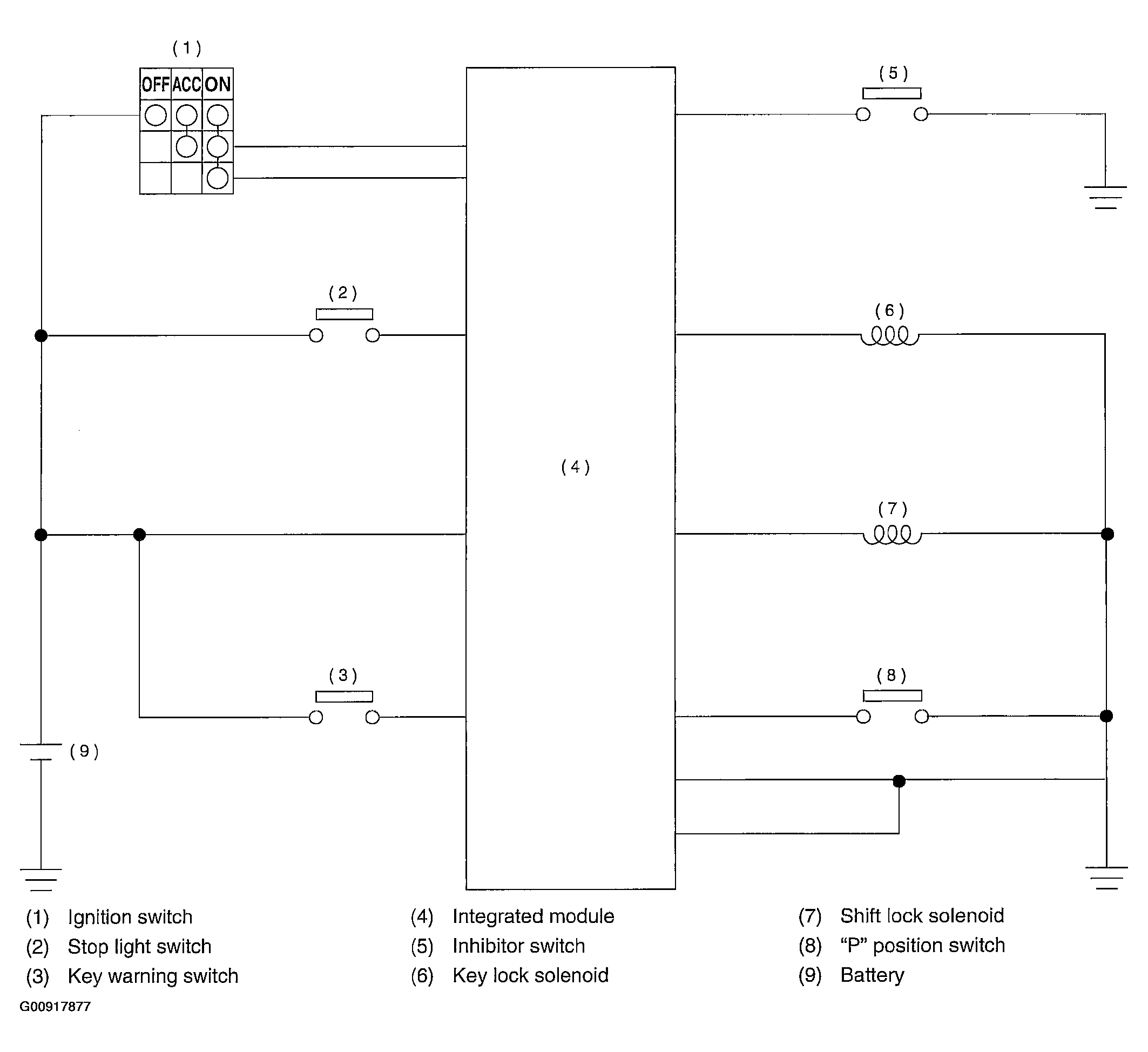

Fig 1: Schematic Diagram
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
