Electrical Component: Location

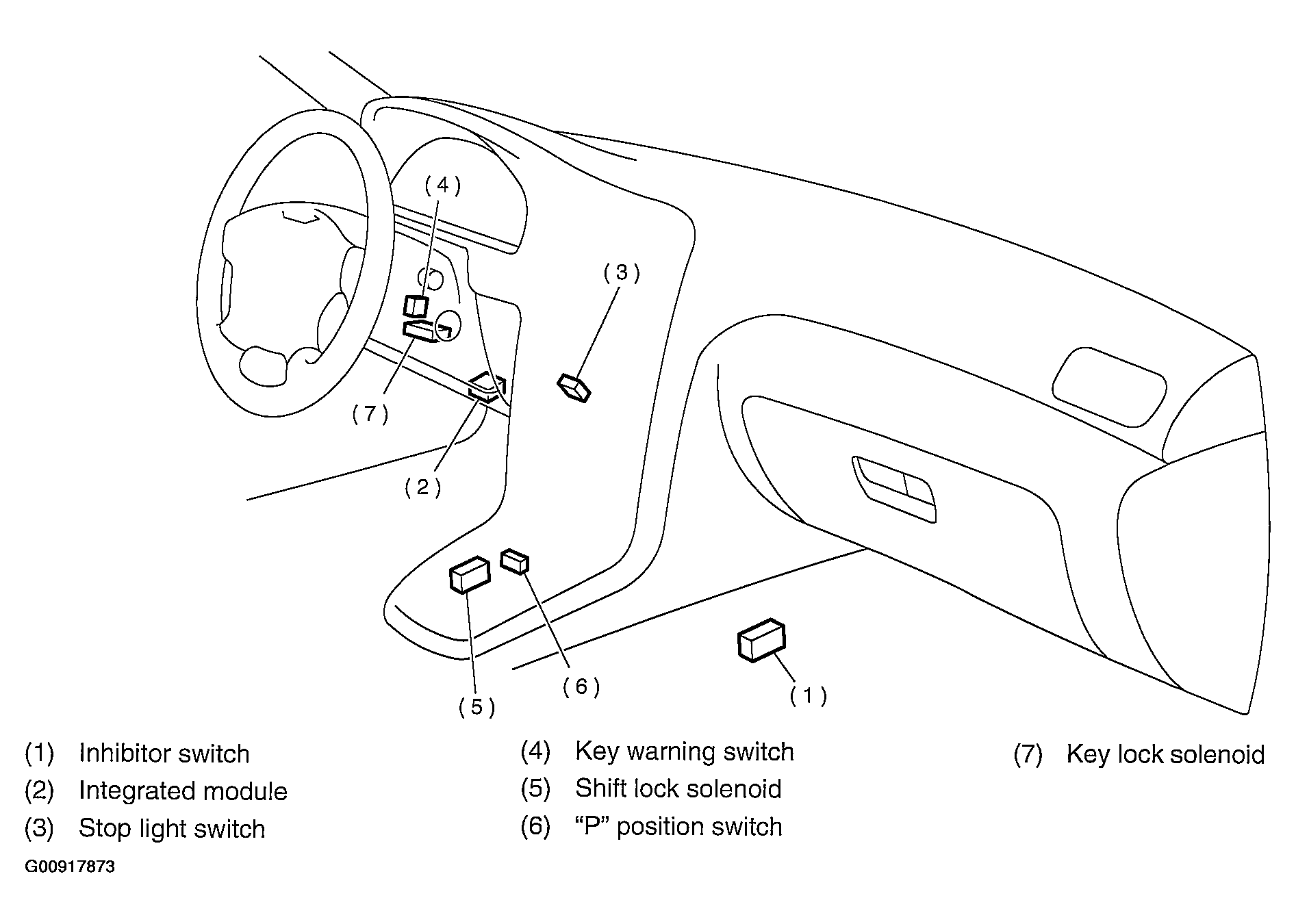

Fig 1: Identifying Electrical Component (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

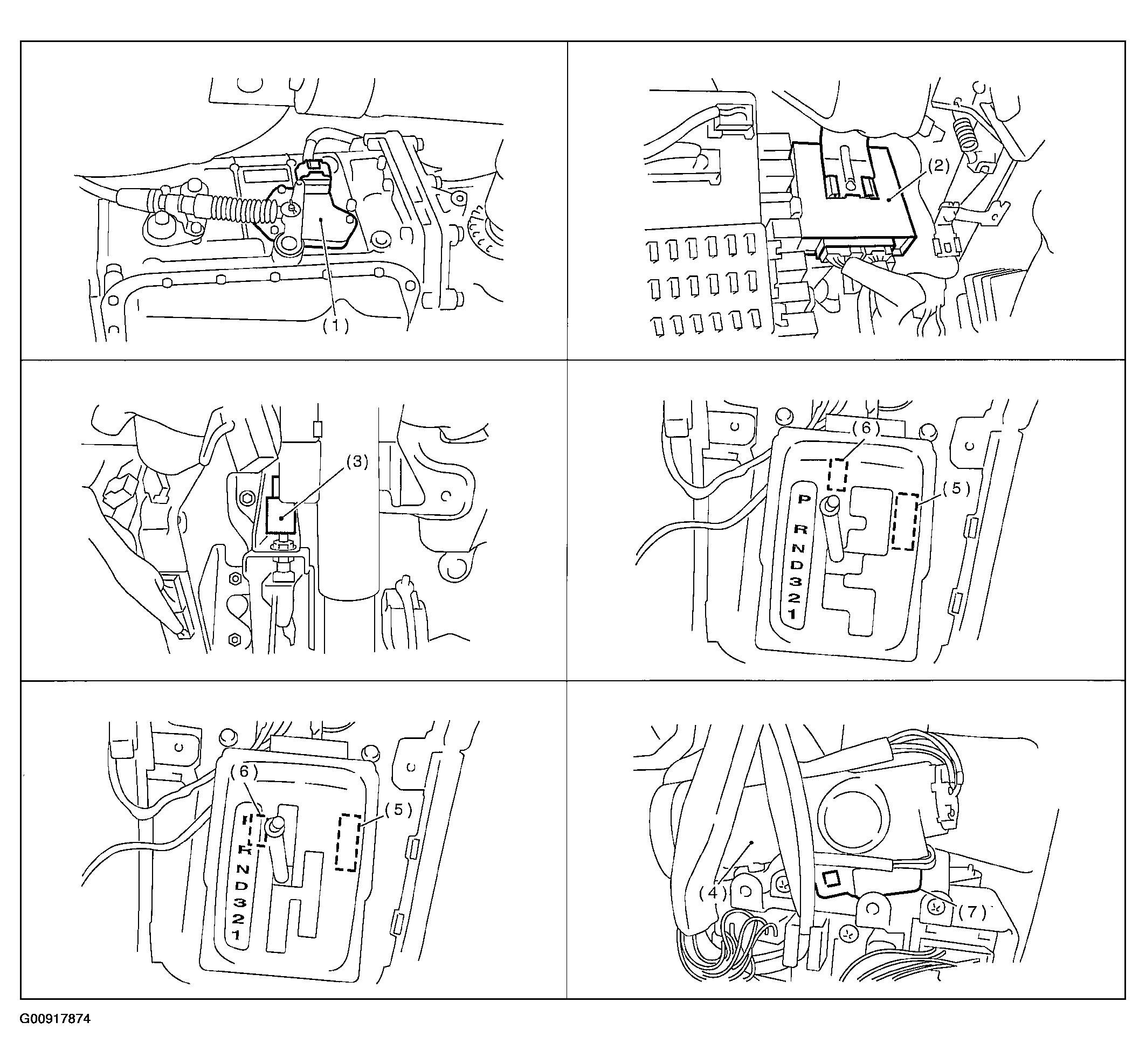

Fig 2: Identifying Electrical Component (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
