EGR Valve: Installation

Install in the reverse order of removal.

NOTE: Always use a new gasket.

Tightening torque:

19 N.m (1.9 kgf-m, 14.0 ft-lb)

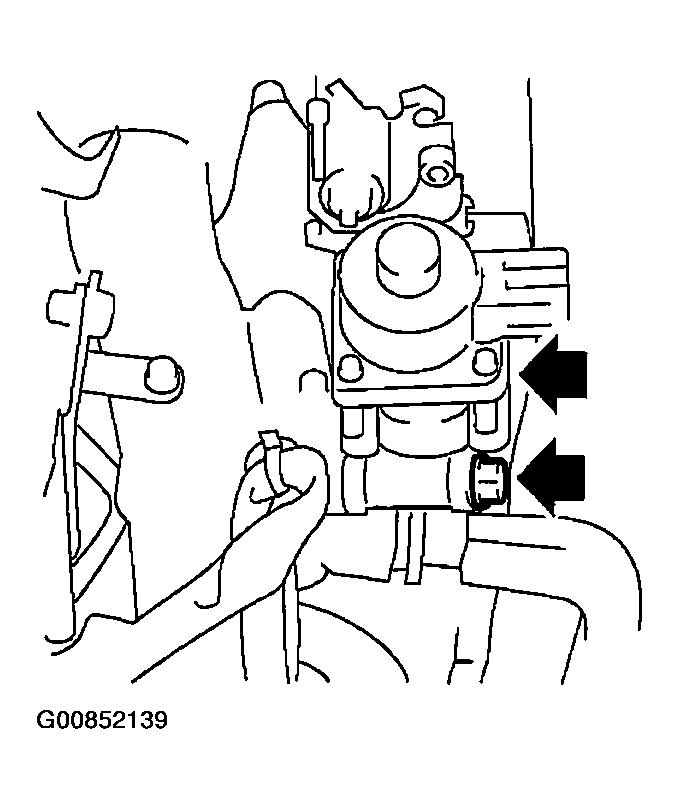

Fig 1: Tightening Torque Specification

Courtesy of SUBARU OF AMERICA, INC.
