LH Side

Install in the reverse order of removal.

NOTE: Replace O-rings with new ones.

Fig 1: Replacing O-Rings With New Ones

G00852161

Courtesy of SUBARU OF AMERICA, INC.

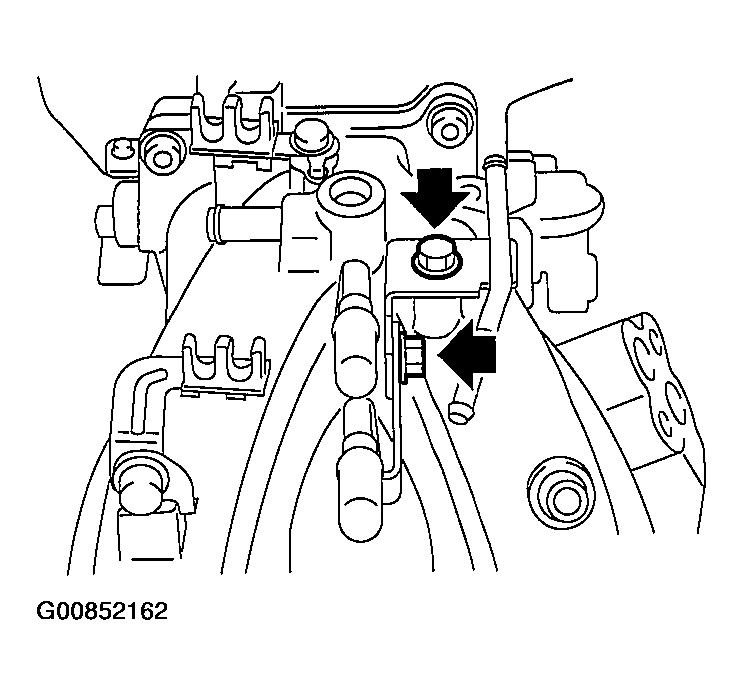

Tightening torque:

5.0 N.m (0.51 kgf-m, 3.7 ft-lb)

Fig 2: Tightening Torque Specification

G00852162

Courtesy of SUBARU OF AMERICA, INC.

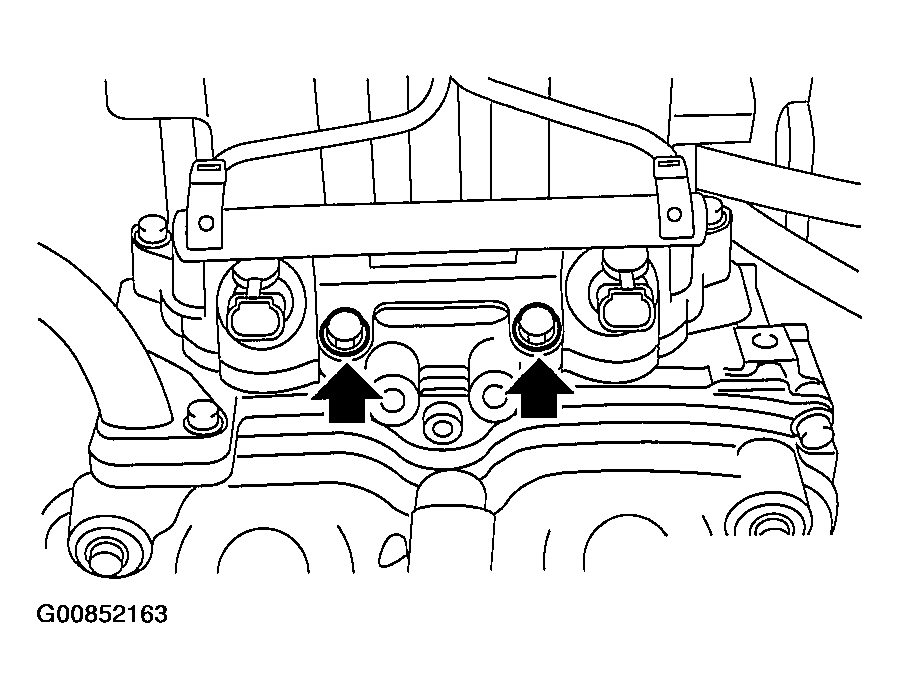

Tightening torque:

19 N.m (1.9 kgf-m, 13.7 ft-lb)

Fig 3: Tightening Torque Specification

G00852163

Courtesy of SUBARU OF AMERICA, INC.

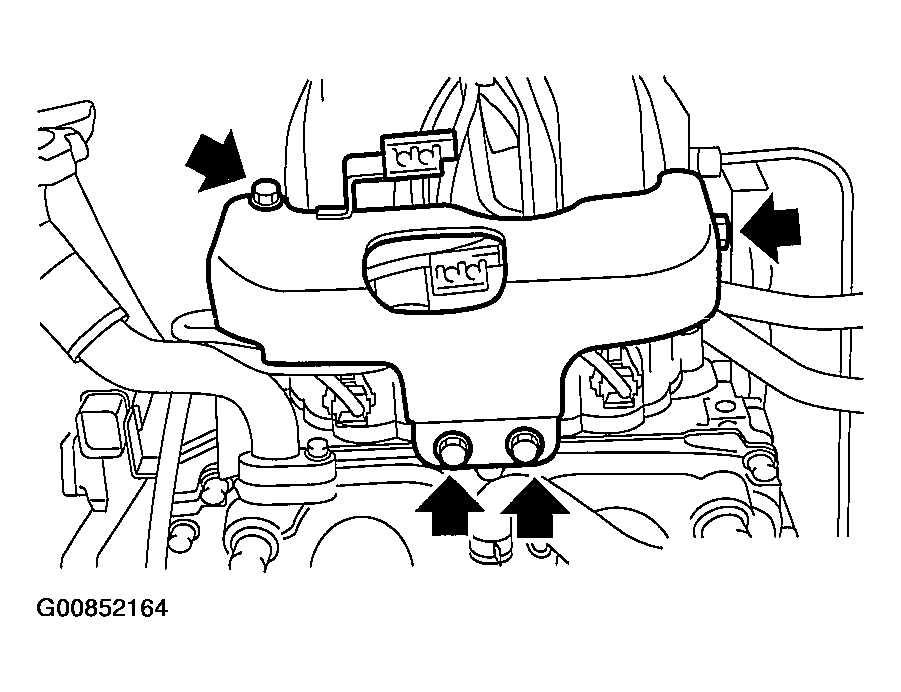

Tightening torque:

19 N.m (1.9 kgf-m, 13.7 ft-lb)

Fig 4: Tightening Torque Specification

G00852164

Courtesy of SUBARU OF AMERICA, INC.
