RH Side

Install in the reverse order of removal.

Fig 1: Replacing O-Rings With New Ones

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

19 N.m (0.19 kgf-m, 1.4 ft-lb)

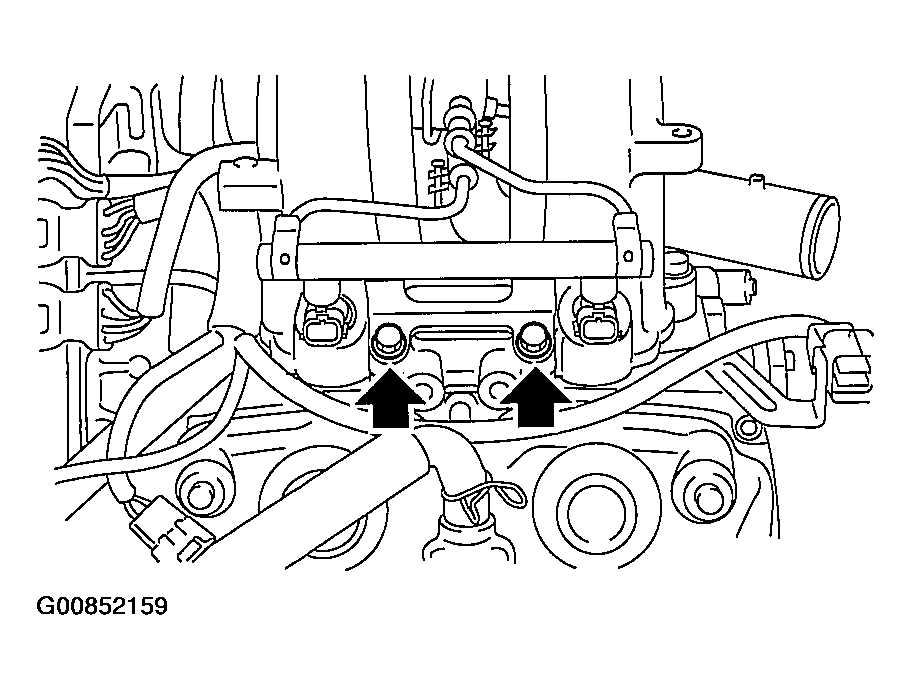

Fig 2: Fuel Rail Bolts

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

19 N.m (0.19 kgf-m, 1.4 ft-lb)

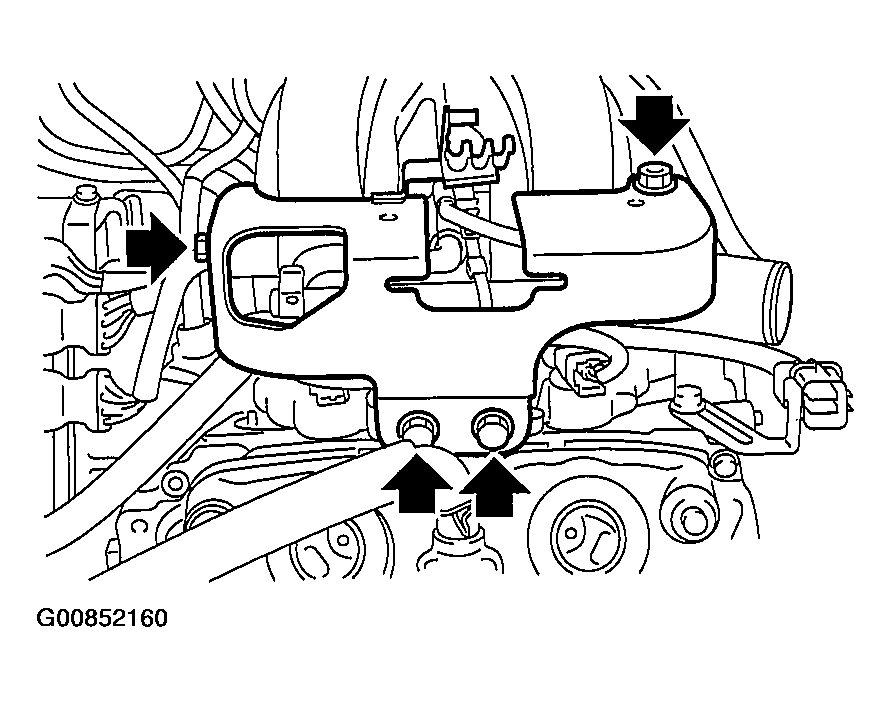

Fig 3: Locating Cover Bolts

Courtesy of SUBARU OF AMERICA, INC.
