Air Assist Injector Solenoid Valve: Installation

Install in the reverse order of removal.

1. Tightening torque:  5.0 N.m (0.51 kgf-m, 3.7 ft-lb)

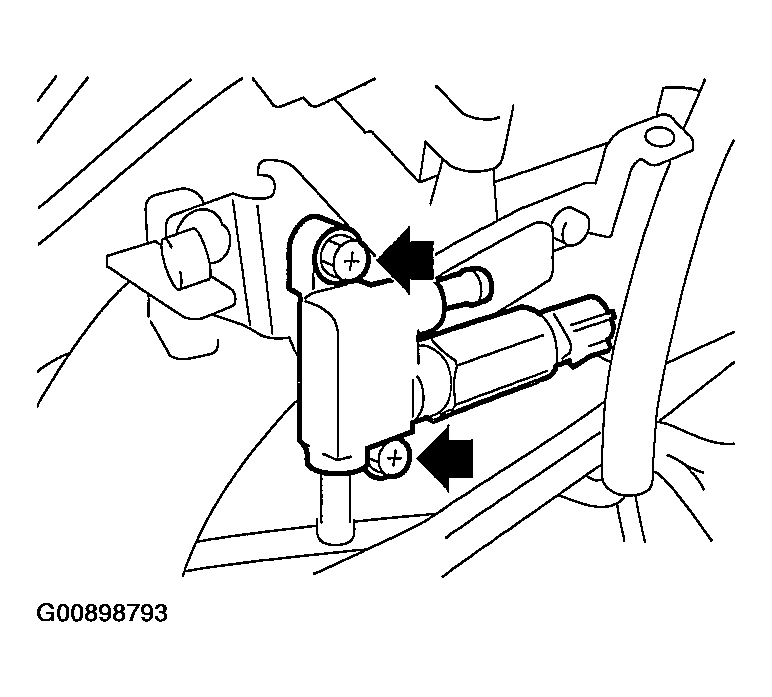

   Fig 1: Installing Air Assist Injector Solenoid Valve

   Courtesy of SUBARU OF AMERICA, INC.
