EGR Valve: Removal

  1. Disconnect ground cable from battery.
    Fig 1: Disconnecting Ground Cable From Battery
    G00898794Courtesy of SUBARU OF AMERICA, INC.
  2. Disconnect connector from EGR valve.
    Fig 2: Disconnecting Connector From EGR Valve
    G00898795Courtesy of SUBARU OF AMERICA, INC.
  3. Remove EGR valve from intake manifold.

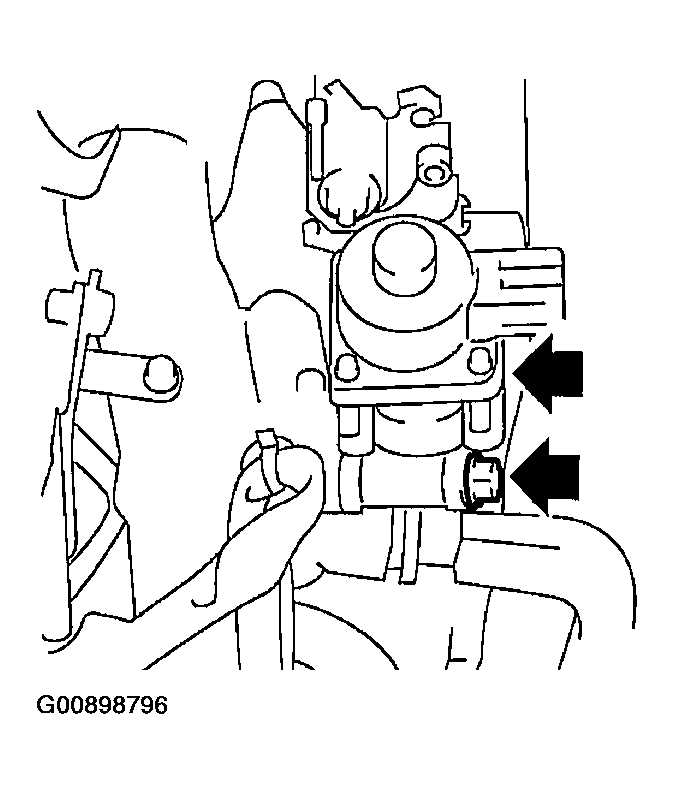

    Fig 3: Removing EGR Valve From Intake Manifold
    G00898796Courtesy of SUBARU OF AMERICA, INC.
