Mode $01 (Current Powertrain Diagnostic Data)

Refers to data denoting the current operating condition of analog input/output, digital input/output and/or the powertrain system.

A list of the support data and PID (Parameter Identification) codes are shown in the following table.

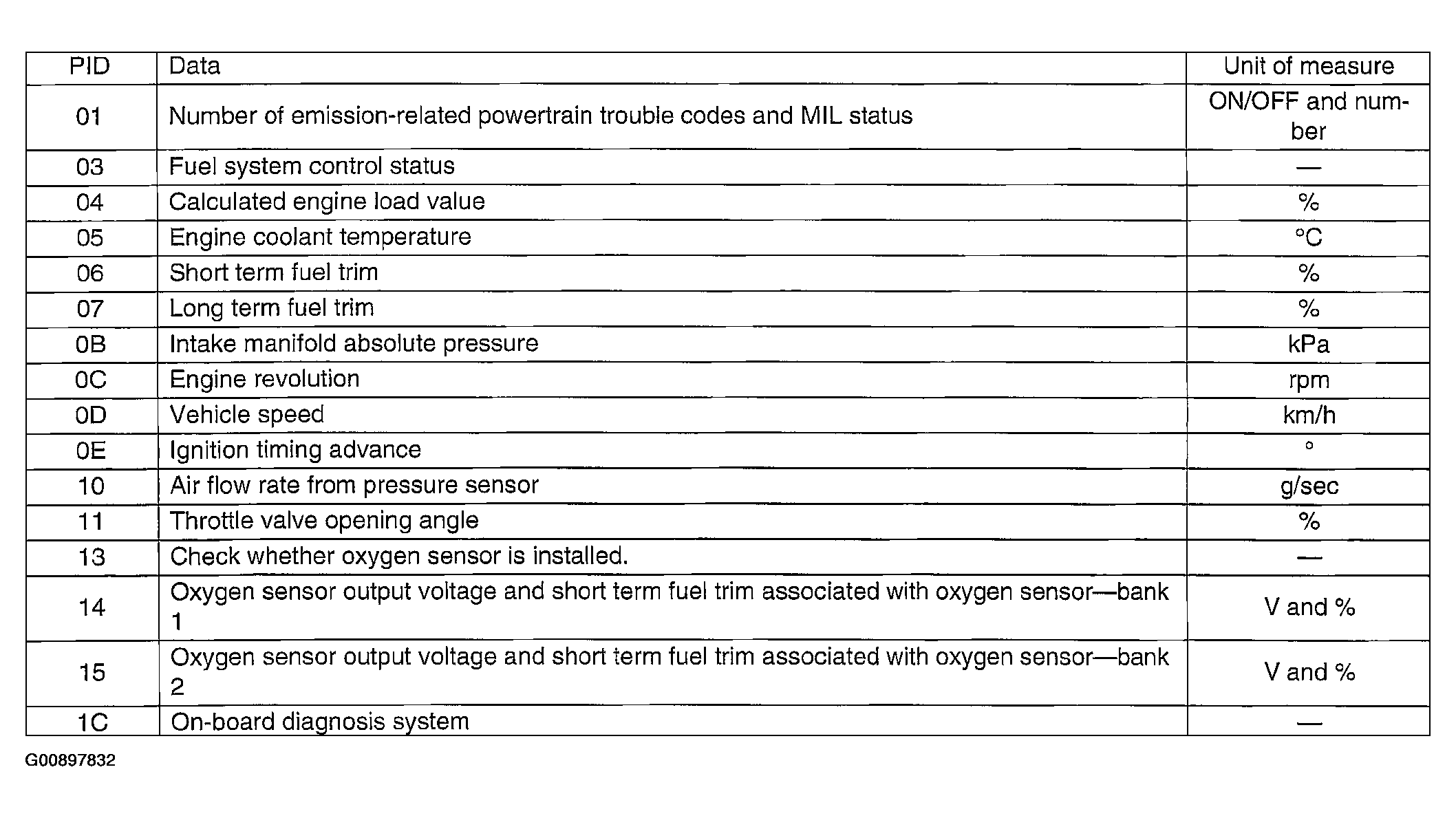

Fig 1: Identifying Mode $01 (Current Powertrain Diagnostic Data)

Courtesy of SUBARU OF AMERICA, INC.

NOTE: Refer to OBD-II general scan tool manufacturer's instruction manual to access generic OBD-II PIDs (MODE $01).
