Sub-Compartment Fuel Level Sensor

This sensor detects the level of the fuel in the sub-compartment (the compartment in which the fuel pump is not located) and acts as part of the fuel transfer line when the jet pump is in operation to maintain the fuel in both compartments at the same level.

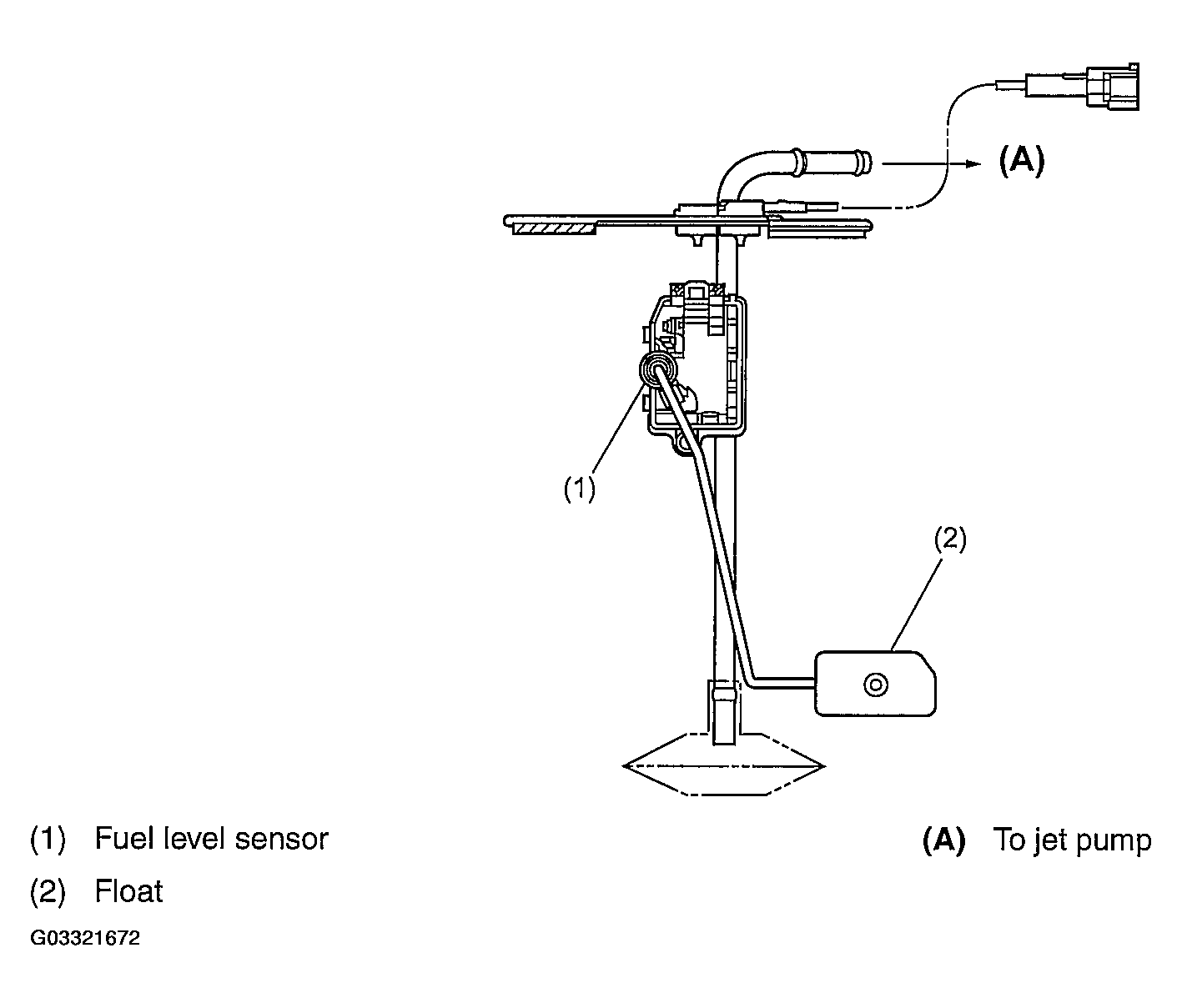

Fig 1: Identifying Sub-Compartment Fuel Level Sensor & Float
G03321672Courtesy of SUBARU OF AMERICA, INC.
