Clutch System: General Description: Component

CLUTCH ASSEMBLY
- Non-TURBO model

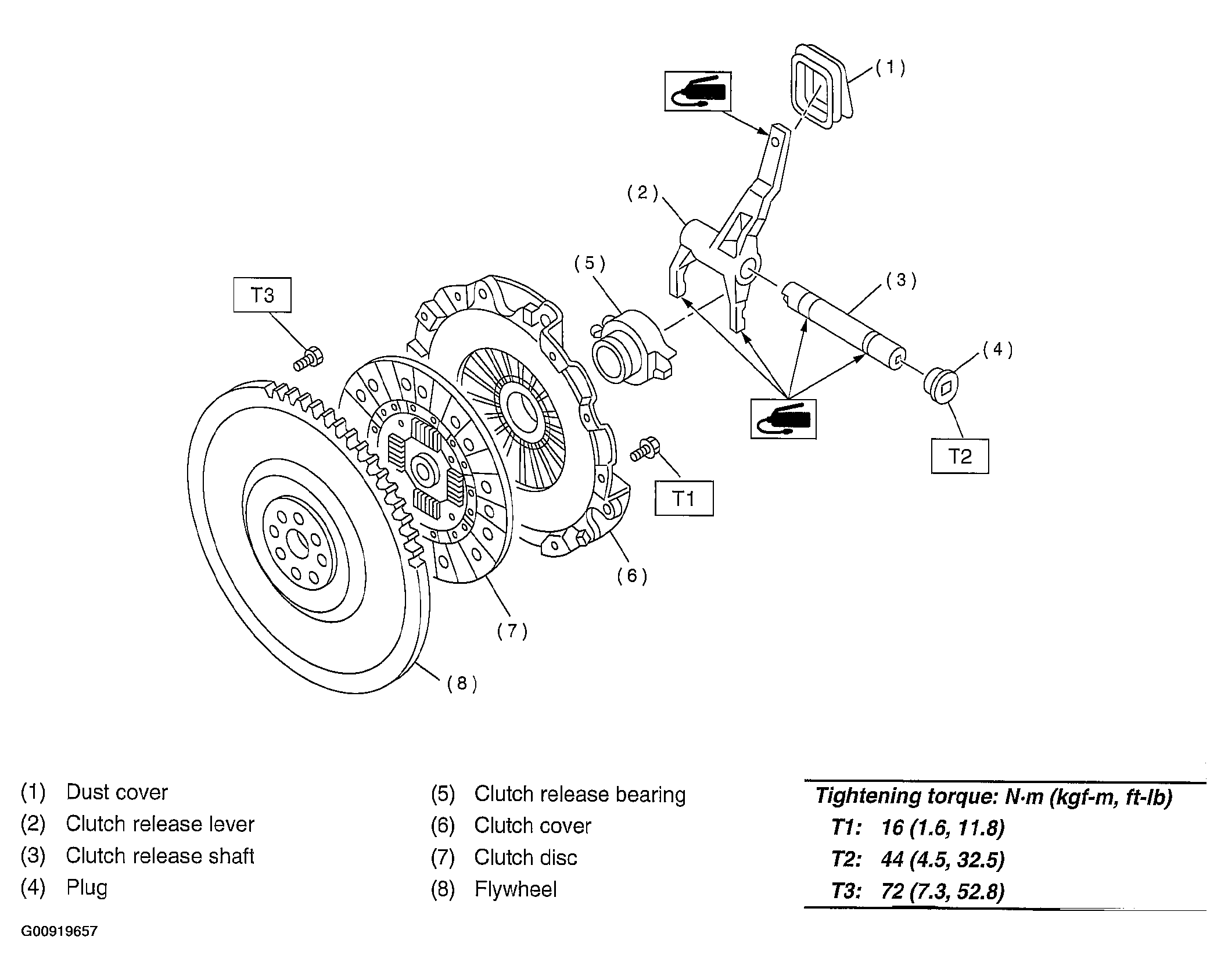

  Fig 1: Clutch Assembly Replacement Components With Torque Specifications (Non-TURBO Model)
  Courtesy of SUBARU OF AMERICA, INC.
- TURBO model

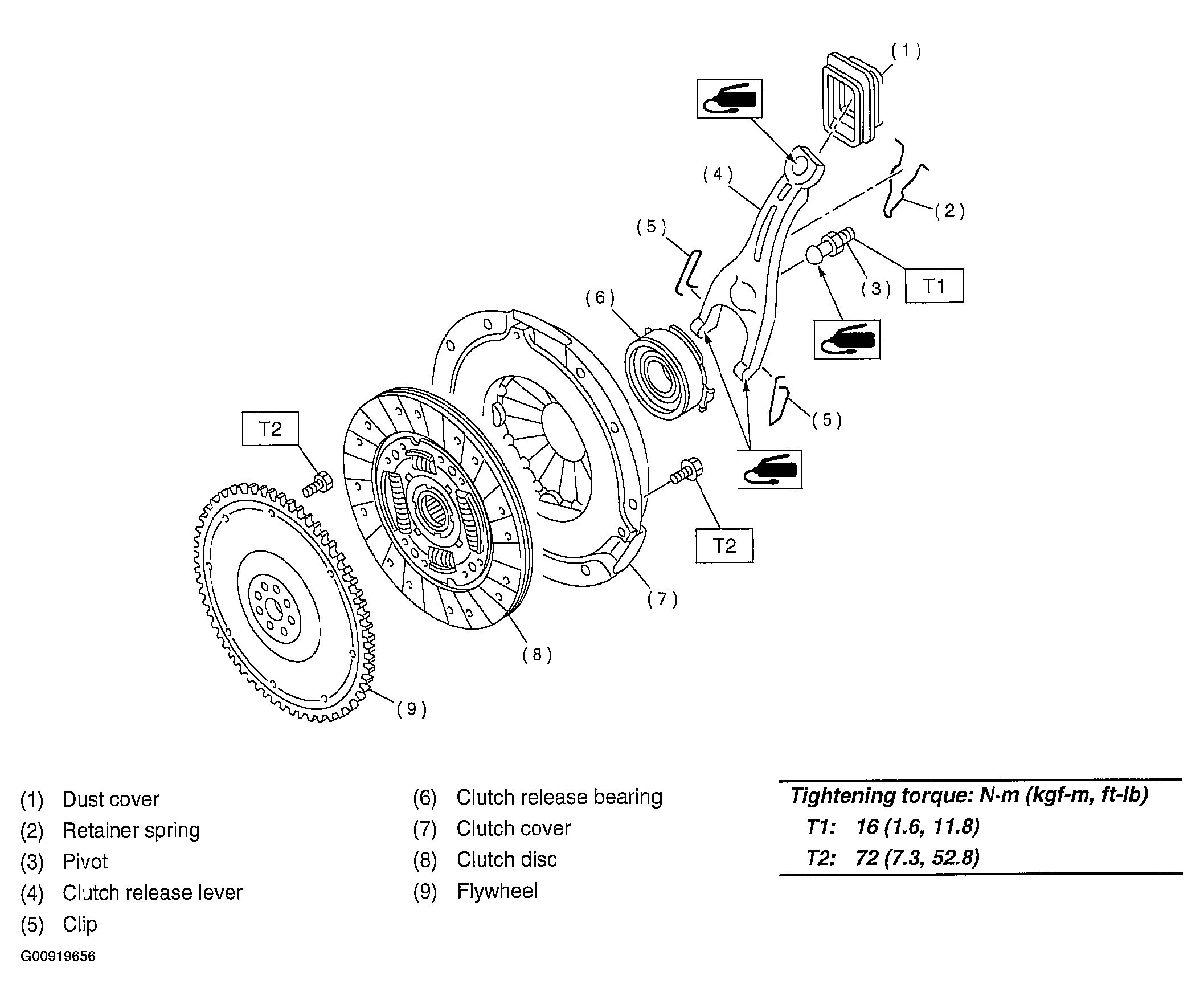

  Fig 2: Clutch Assembly Replacement Components With Torque Specifications (TURBO Model)
  Courtesy of SUBARU OF AMERICA, INC.
CLUTCH PIPE AND HOSE
- Non-TURBO model

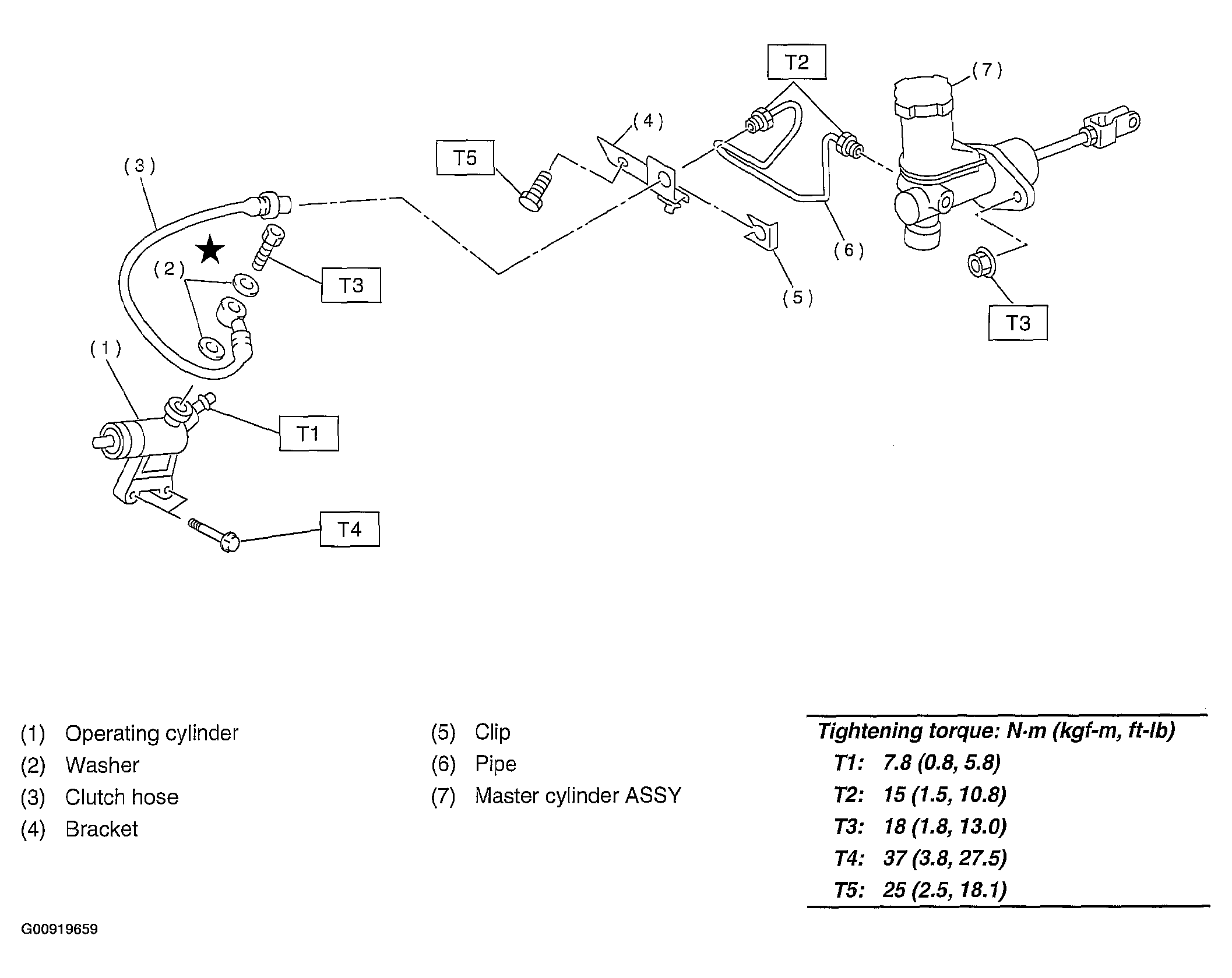

  Fig 3: Clutch Pipe & Hose With Torque Specifications (Non-TURBO Model)
  Courtesy of SUBARU OF AMERICA, INC.
- TURBO model

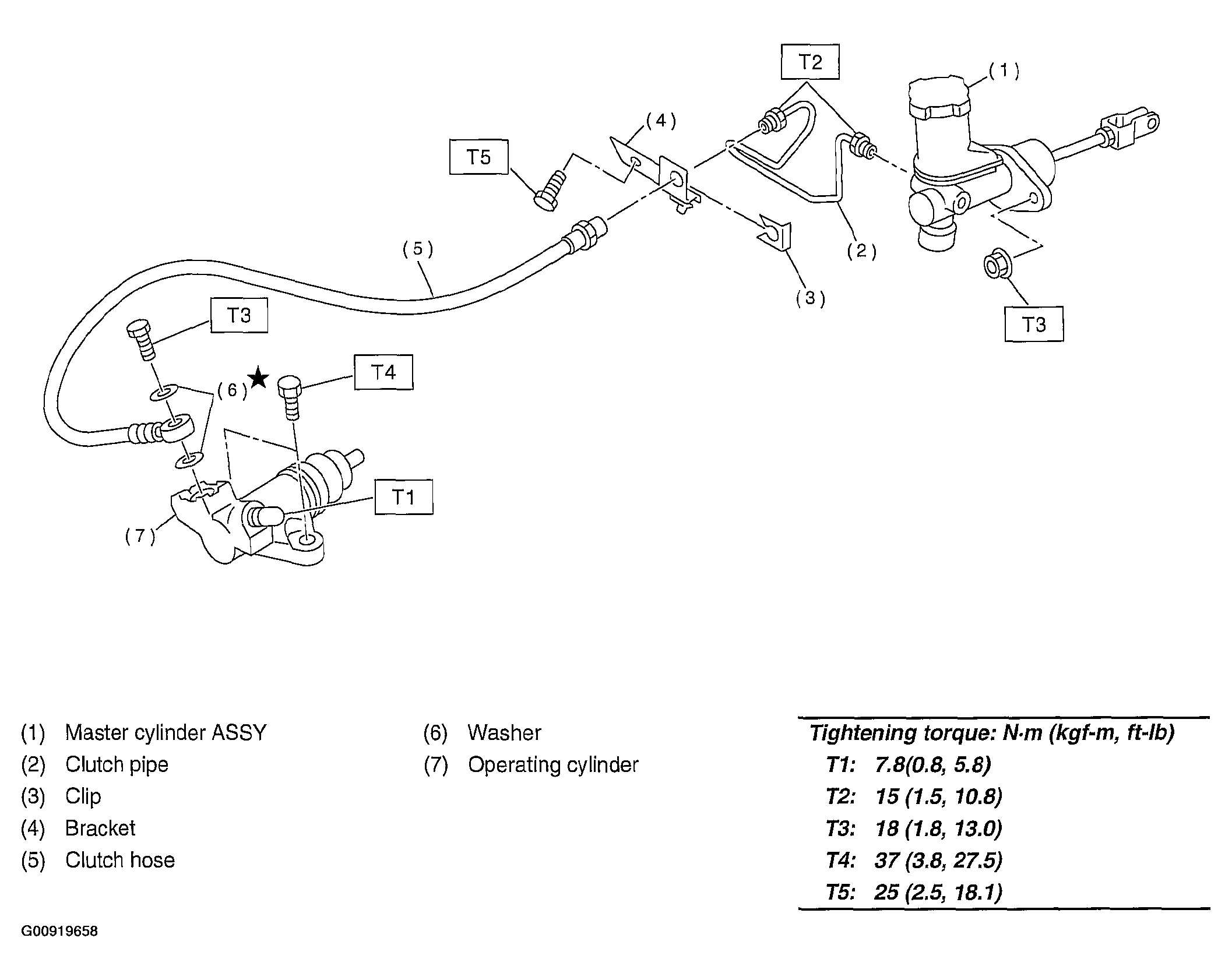

  Fig 4: Clutch Pipe & Hose With Torque Specifications (TURBO Model)
  Courtesy of SUBARU OF AMERICA, INC.
MASTER CYLINDER

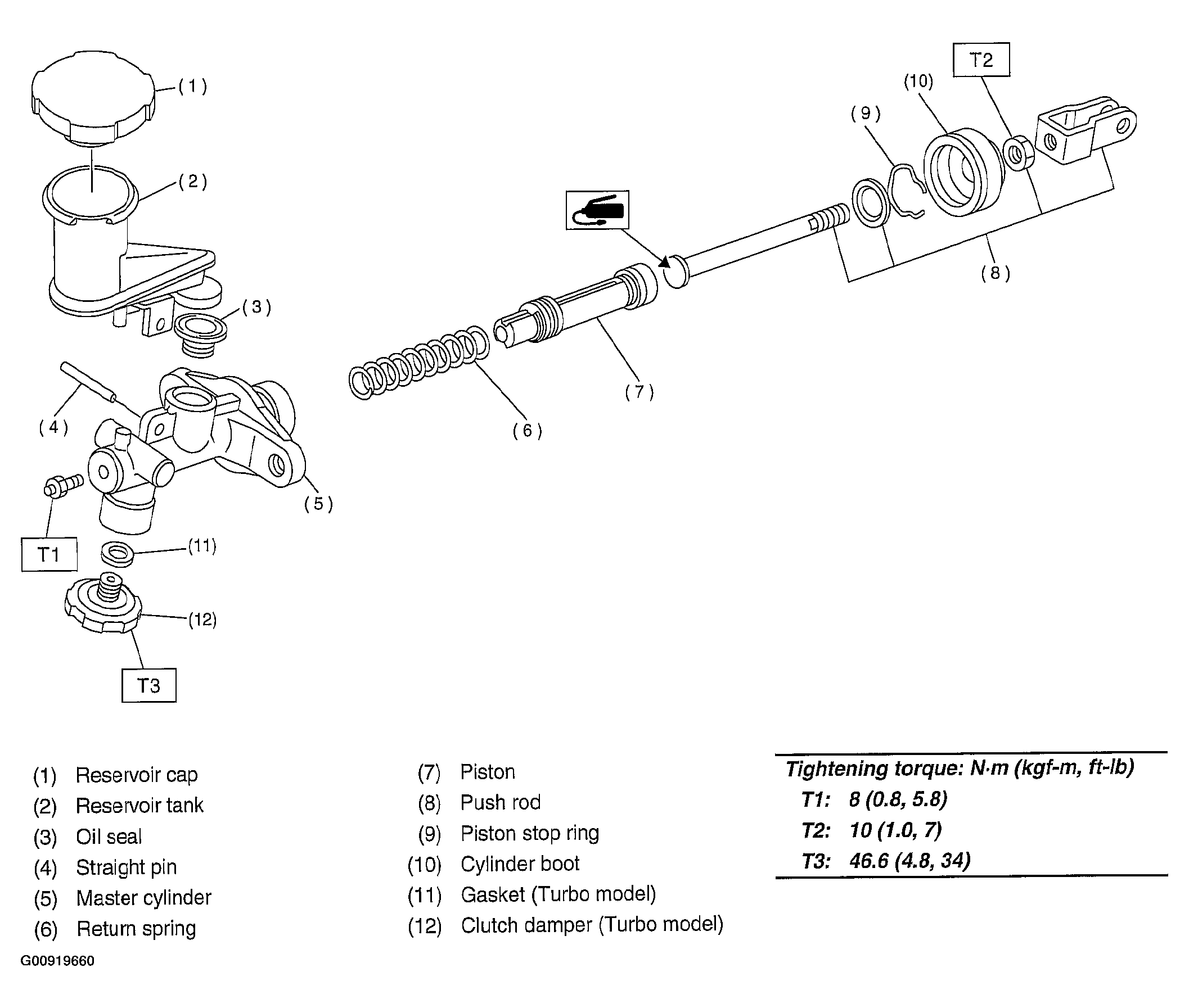

Fig 5: Master Cylinder Replacement Components With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
CLUTCH PEDAL

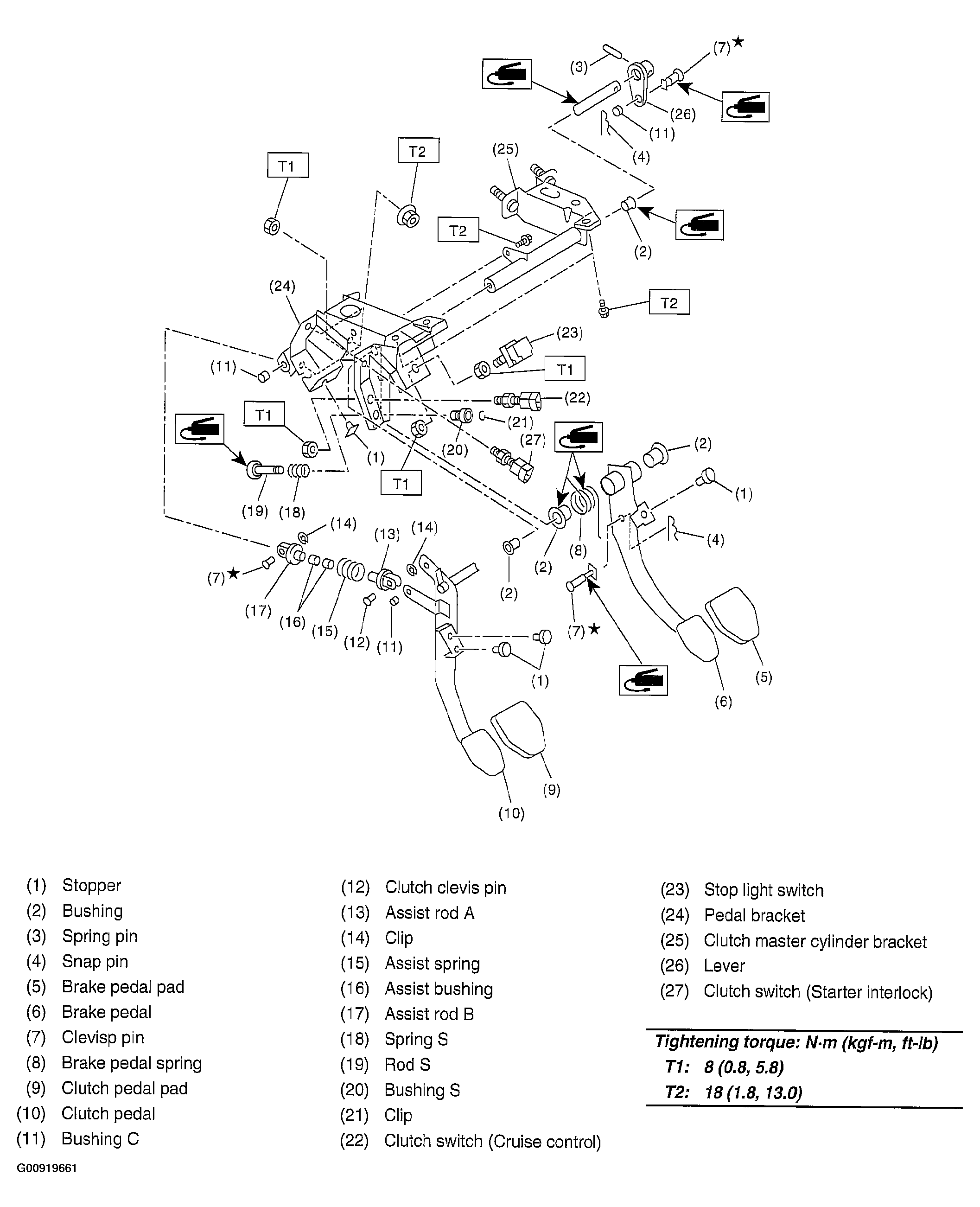

Fig 6: Clutch Pedal Replacement Components With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
