Subaru
›
2004
›
Baja Turbo, Automatic
›
Repair and Diagnosis (Single Page)
›
Engine Performance
›
Engine Control Systems
›
Fuel Injection (Fuel Systems) (H4DOTC)
›
General Description
›
Component
›
Air Intake System
Air Intake System

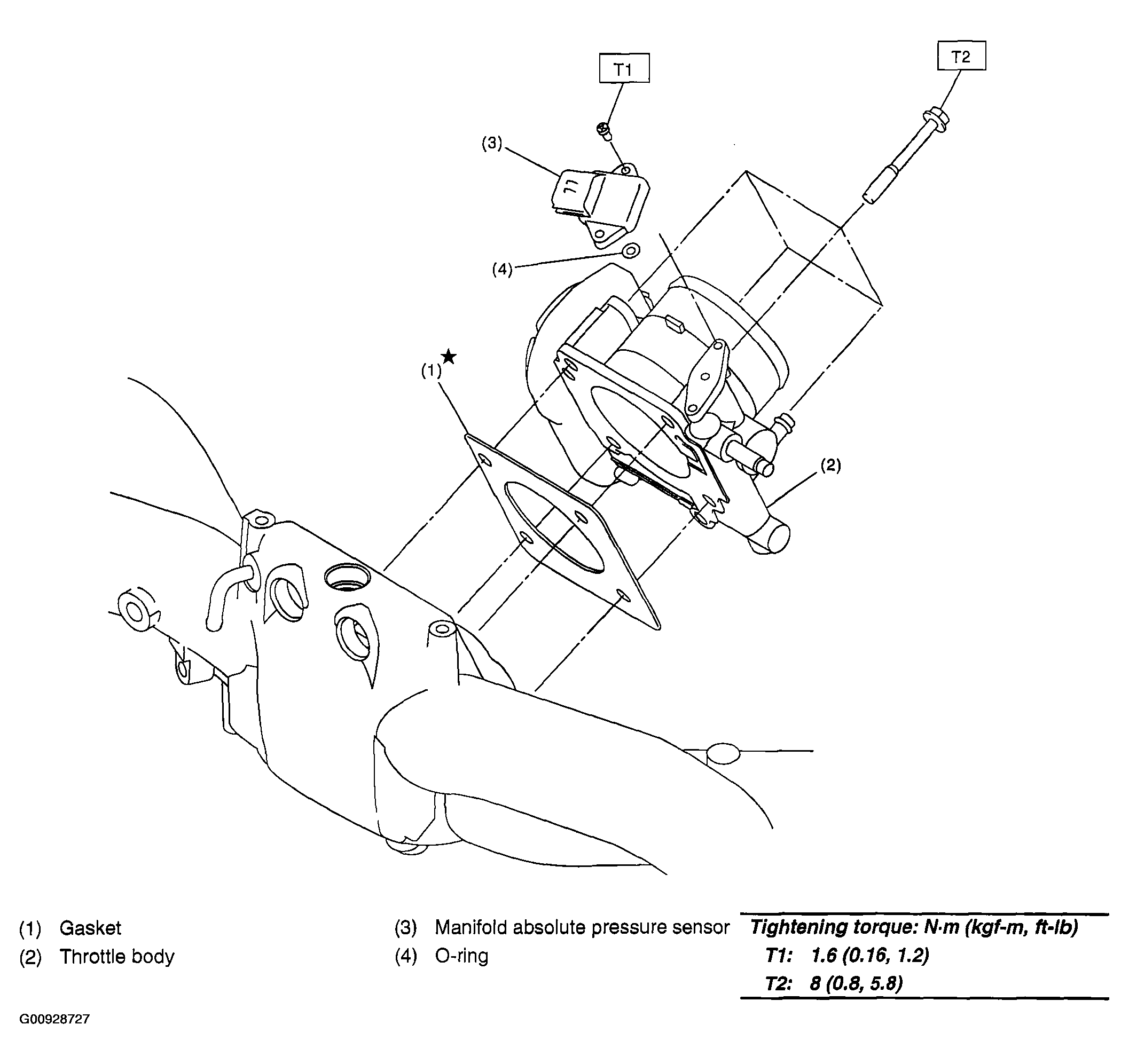

Fig 1: Exploded View Of Air Intake Component With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
