Compulsory Valve Operation Check Mode: Operation

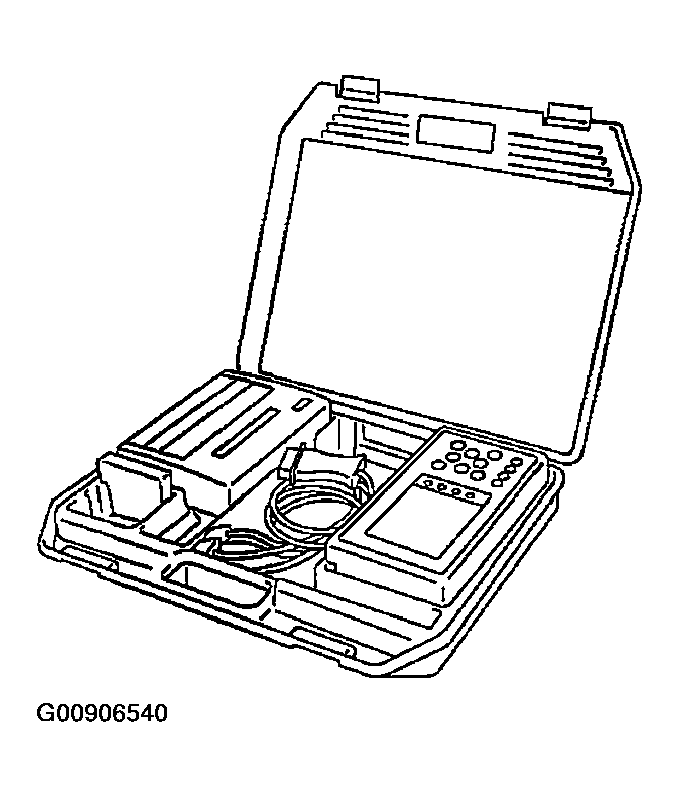

1. Prepare the Subaru Select Monitor kit. Refer to PREPARATION TOOL , General Description.
   Fig 1: Preparing Subaru Select Monitor Kit

   Courtesy of SUBARU OF AMERICA, INC.
2. Connect the diagnosis cable to Subaru Select Monitor.
3. Insert the cartridge into Subaru Select Monitor. Refer to PREPARATION TOOL , General Description.
   Fig 2: Inserting The Cartridge Into Subaru Select Monitor

   Courtesy of SUBARU OF AMERICA, INC.
4. Connect the test mode connector (A) at the lower portion of instrument panel (on the driver's side).
   Fig 3: Connecting The Test Mode Connector At Lower Portion Of Instrument Panel (On Driver's Side)

   Courtesy of SUBARU OF AMERICA, INC.
5. Connect the Subaru Select Monitor to data link connector located in the lower portion of instrument panel (on the driver's side).
   Fig 4: Connecting Subaru Select Monitor To Data Link Connector

   Courtesy of SUBARU OF AMERICA, INC.
   CAUTION: Do not connect scan tools except for the Subaru Select Monitor and OBD-II general scan tool.
6. Turn the ignition switch to ON (engine OFF) and Subaru Select Monitor switch to ON.
   Fig 5: Turning The Ignition Switch To On (Engine Off) & Subaru Select Monitor Switch To On

   Courtesy of SUBARU OF AMERICA, INC.
7. On the << Main Menu >> display screen, select the {2. Each System Check} and press the [YES] key.
8. On the << System Selection Menu >> display screen, select the {Engine Control System} and press the [YES] key.
9. Press the [YES] key after the information of engine type is displayed.
10. On the << Engine Diagnosis >> display screen, select the {System Operation Check Mode} and press the [YES] key.
11. On the << System Operation Check Mode >> display screen, select the {Actuator ON/OFF Operation} and press the [YES] key.
12. Select the desired compulsory actuator on the << Actuator ON/OFF Operation >> display screen and press the [YES] key.
13. Pressing the [NO] key completes the compulsory operation check mode. The display will then return to the << Actuator ON/OFF Operation screen.

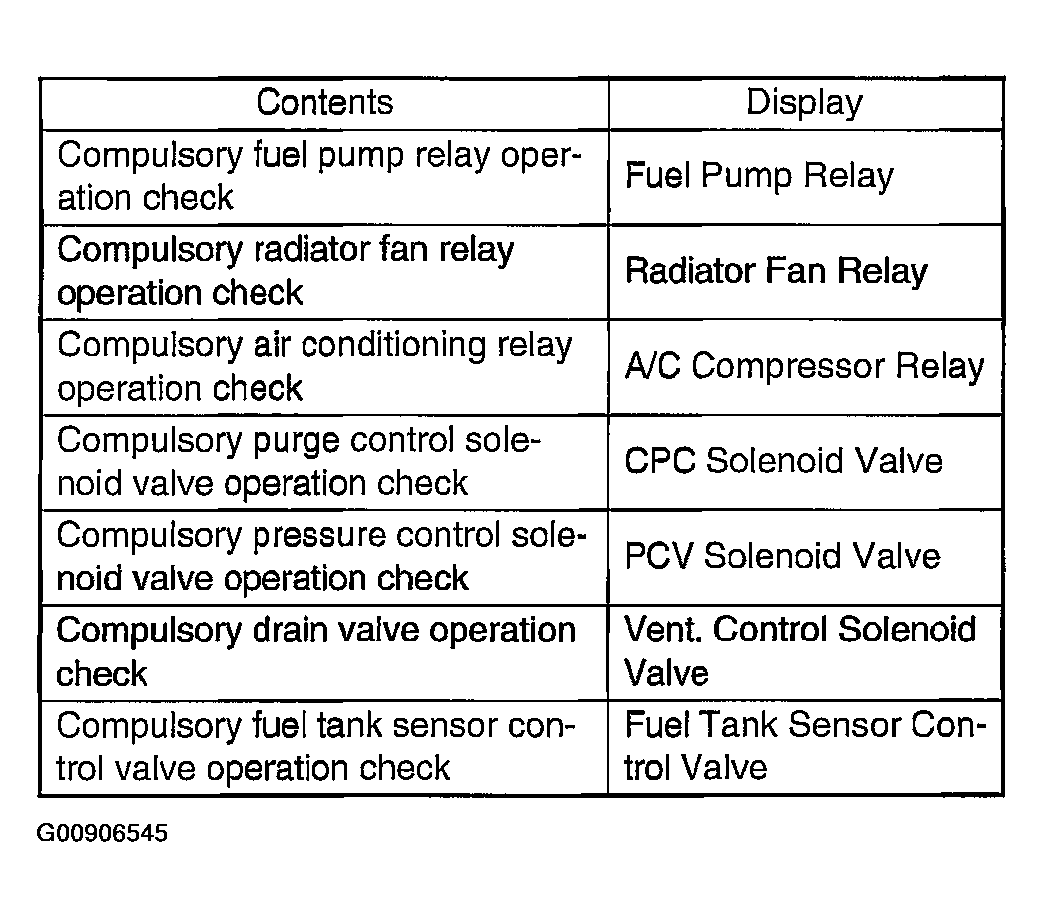

• A list of support data is shown in the following table.

Fig 6: List Of Support Data

Courtesy of SUBARU OF AMERICA, INC.

NOTE:

• The following parts will be displayed but not functional because they are not installed on the vehicle.

Fig 7: Display Chart

Courtesy of SUBARU OF AMERICA, INC.

• For detailed operation procedure, refer to the Subaru Select Monitor Operation Manual.
