General Diagnostic: Inspection

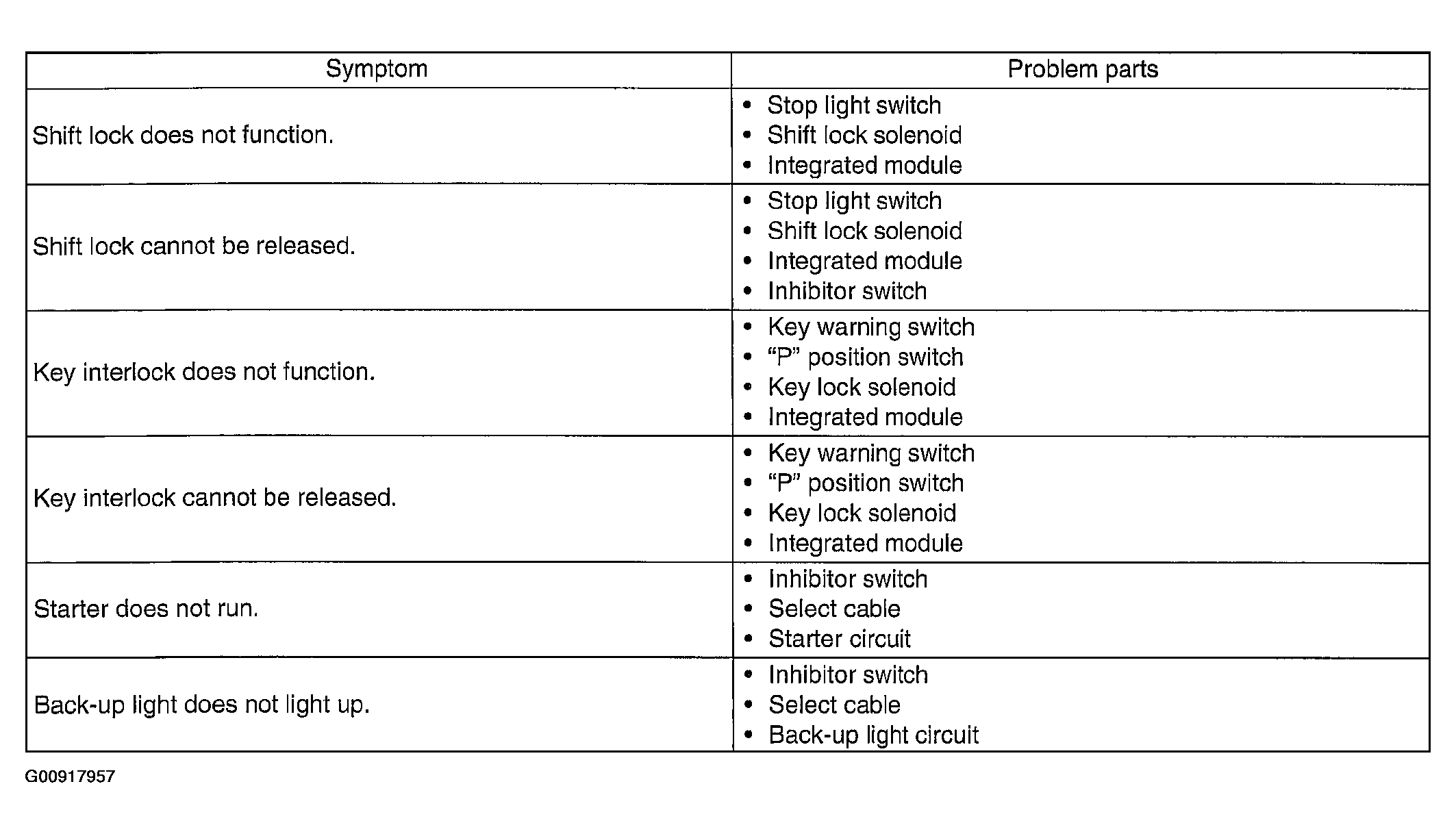

Fig 1: Inspection Chart
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
