Without SUBARU Select Monitor

After calling up a DTC, gripped the diagnosis connector terminal 6 from ground terminal.

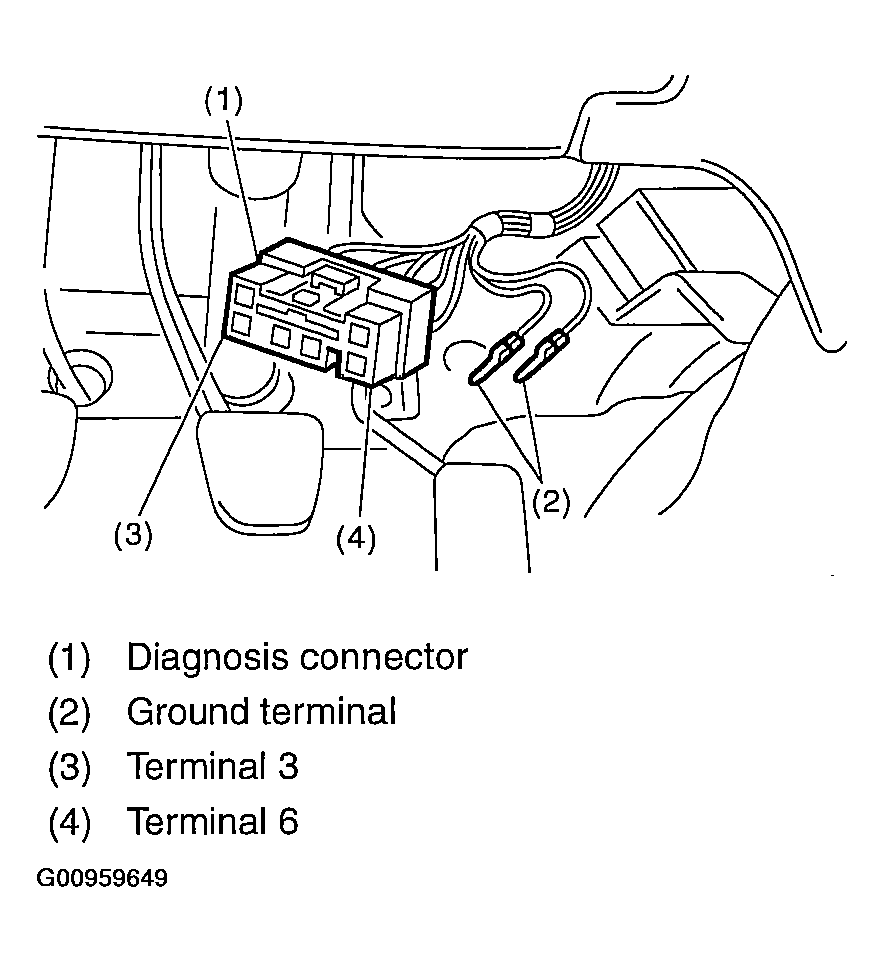

Fig 1: Identifying Diagnosis Connector Terminal
Courtesy of SUBARU OF AMERICA, INC.
Repeat 3 times within approx. 12 seconds; connecting and disconnecting terminal 6 and ground terminal for at least 0.2 seconds each time.

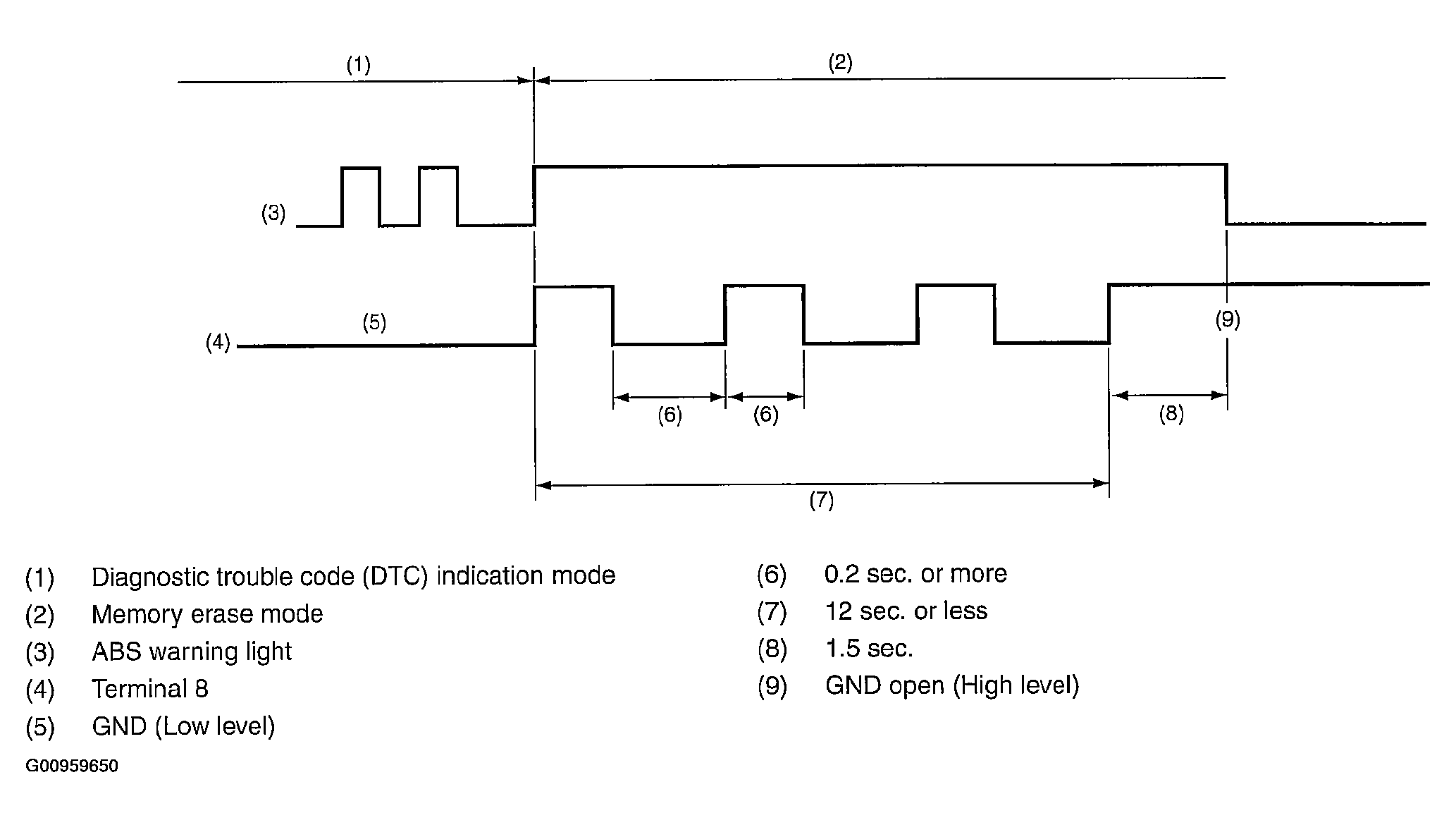

Fig 2: Diagnosis Connector Terminal Blinking Pattern (Without Subaru Select Monitor)
Courtesy of SUBARU OF AMERICA, INC.

NOTE: After the diagnostics is completed, make sure to clear memory. Make sure only start code (11) is shown after memory is cleared.
