Fuel Damper Valve: Removal

Release the fuel pressure. Refer to RELEASING OF FUEL PRESSURE , OPERATION, Fuel.
Remove the fuel damper valve from the fuel return line.

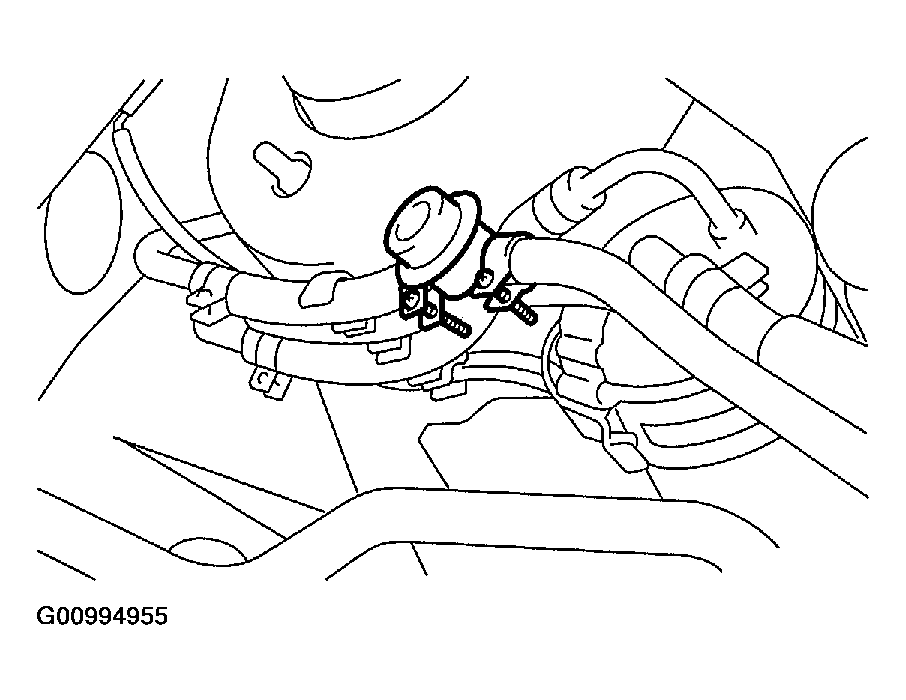

Fig 1: Identifying Fuel Damper Valve & Fuel Return Line
Courtesy of SUBARU OF AMERICA, INC.
