Spark Plug
›
Removal
›
RH Side
RH Side
Disconnect the ground cable from battery.

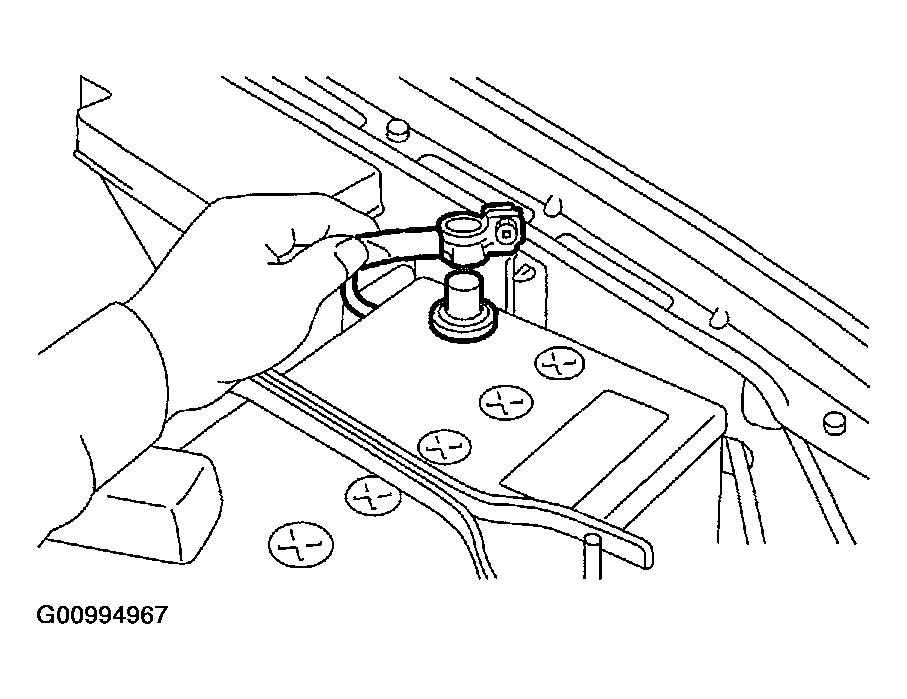

Fig 1: Disconnecting Ground Cable From Battery (RH Side)
Courtesy of SUBARU OF AMERICA, INC.
Remove the resonator chamber. Refer to
REMOVAL
, Resonator Chamber.
Remove the spark plug cords by pulling boot, not the cord itself.

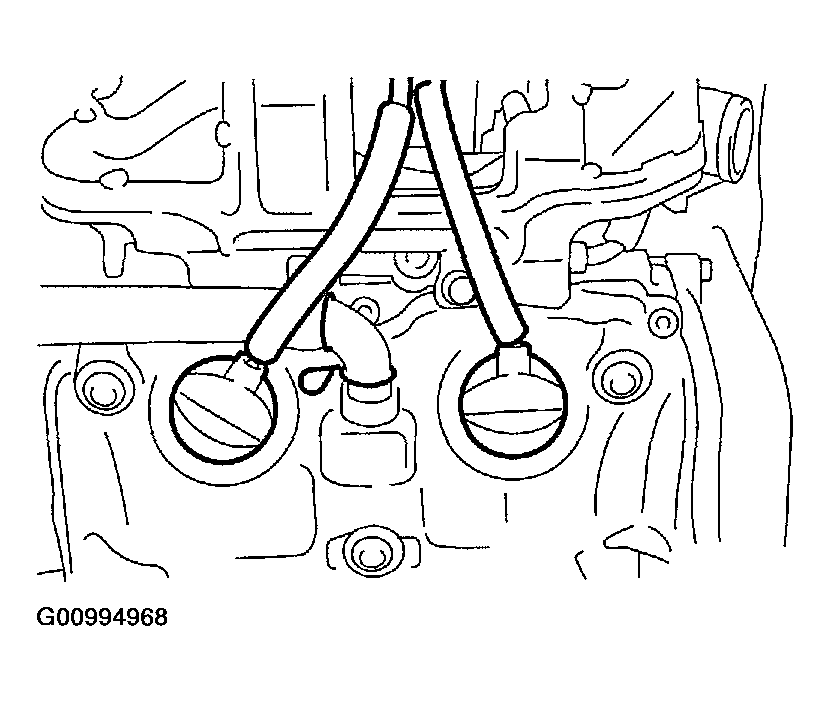

Fig 2: Removing Spark Plug Cords By Pulling Boot
Courtesy of SUBARU OF AMERICA, INC.
Remove the spark plugs with spark plug sockets.

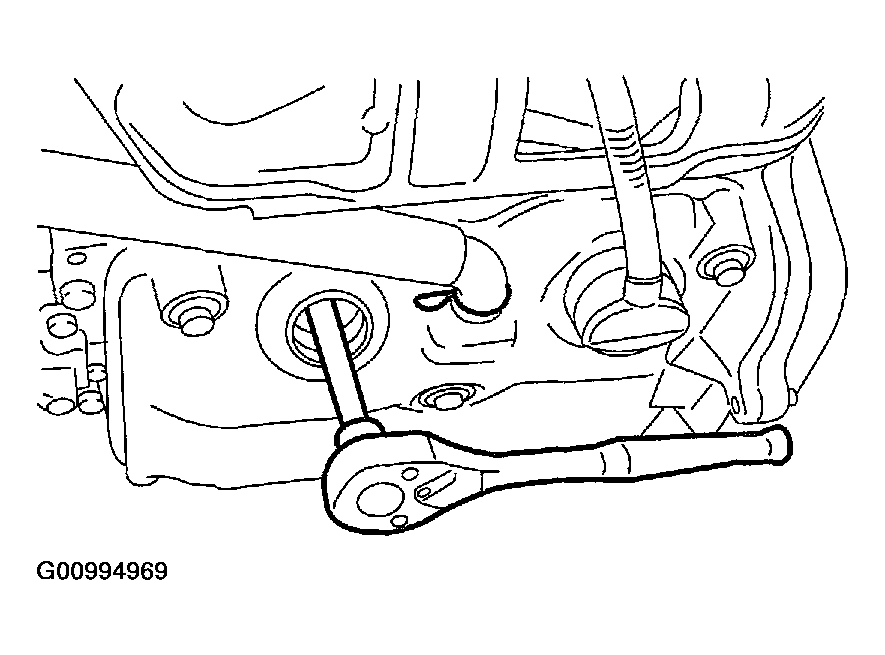

Fig 3: Removing Spark Plugs With Spark Plug Sockets
Courtesy of SUBARU OF AMERICA, INC.
