Engine Control Module (ECM) I/O Signal
›
Electrical Specification
Electrical Specification

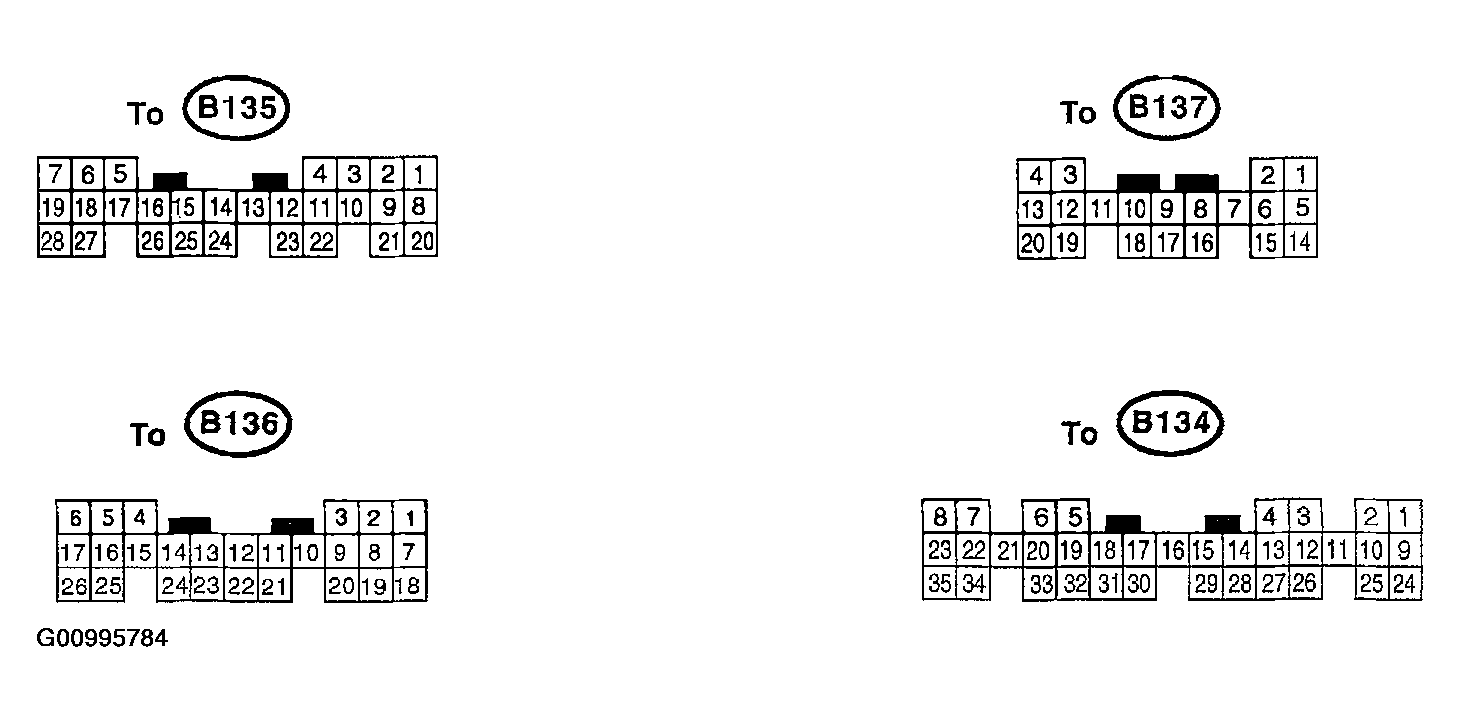

Fig 1: Identifying Engine Control Module (ECM) I/O Signal Terminals
Courtesy of SUBARU OF AMERICA, INC.

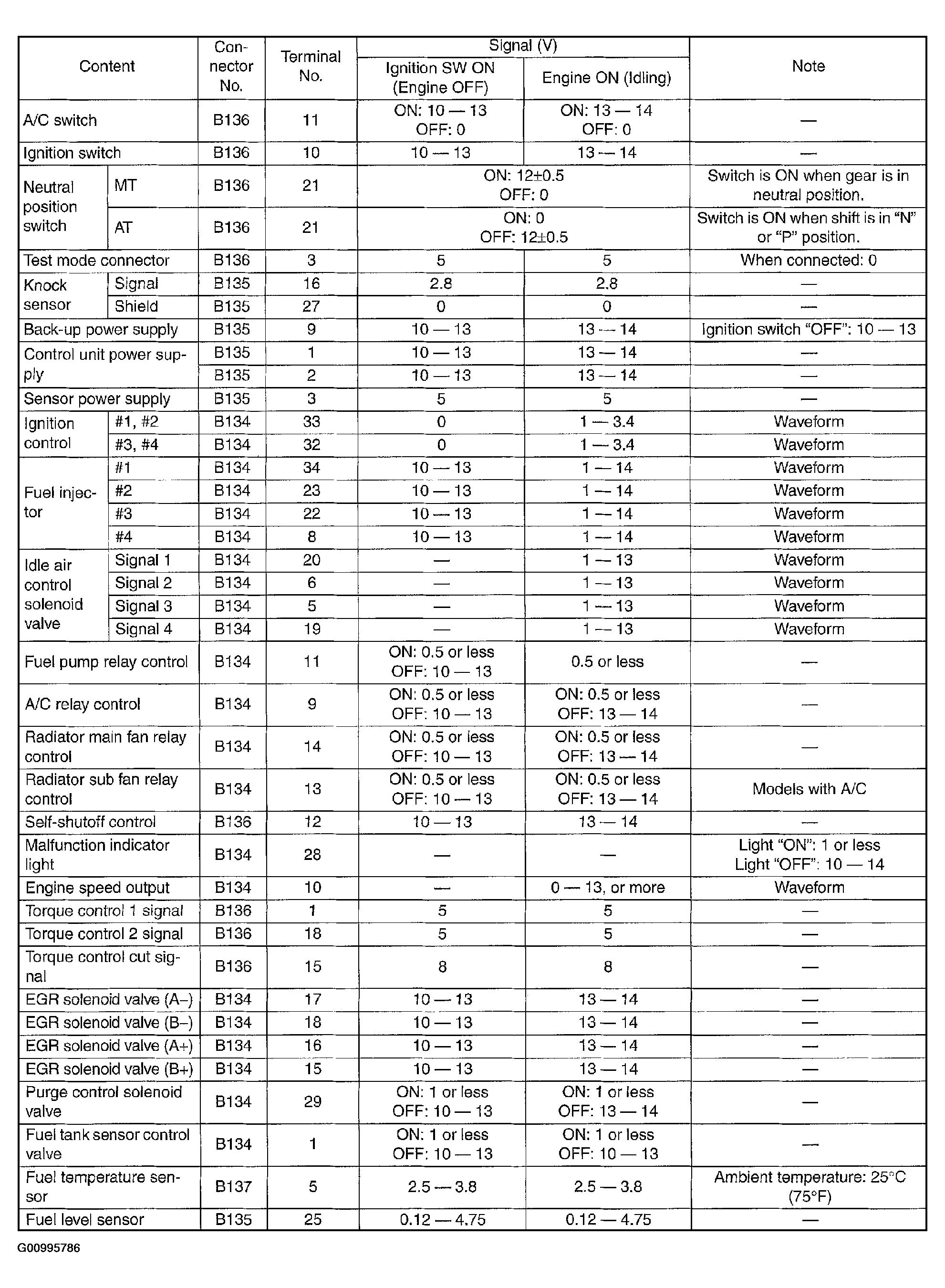

Fig 2: Engine Control Module (ECM) I/O Signal Electrical Specification Chart (1 Of 3)
Courtesy of SUBARU OF AMERICA, INC.

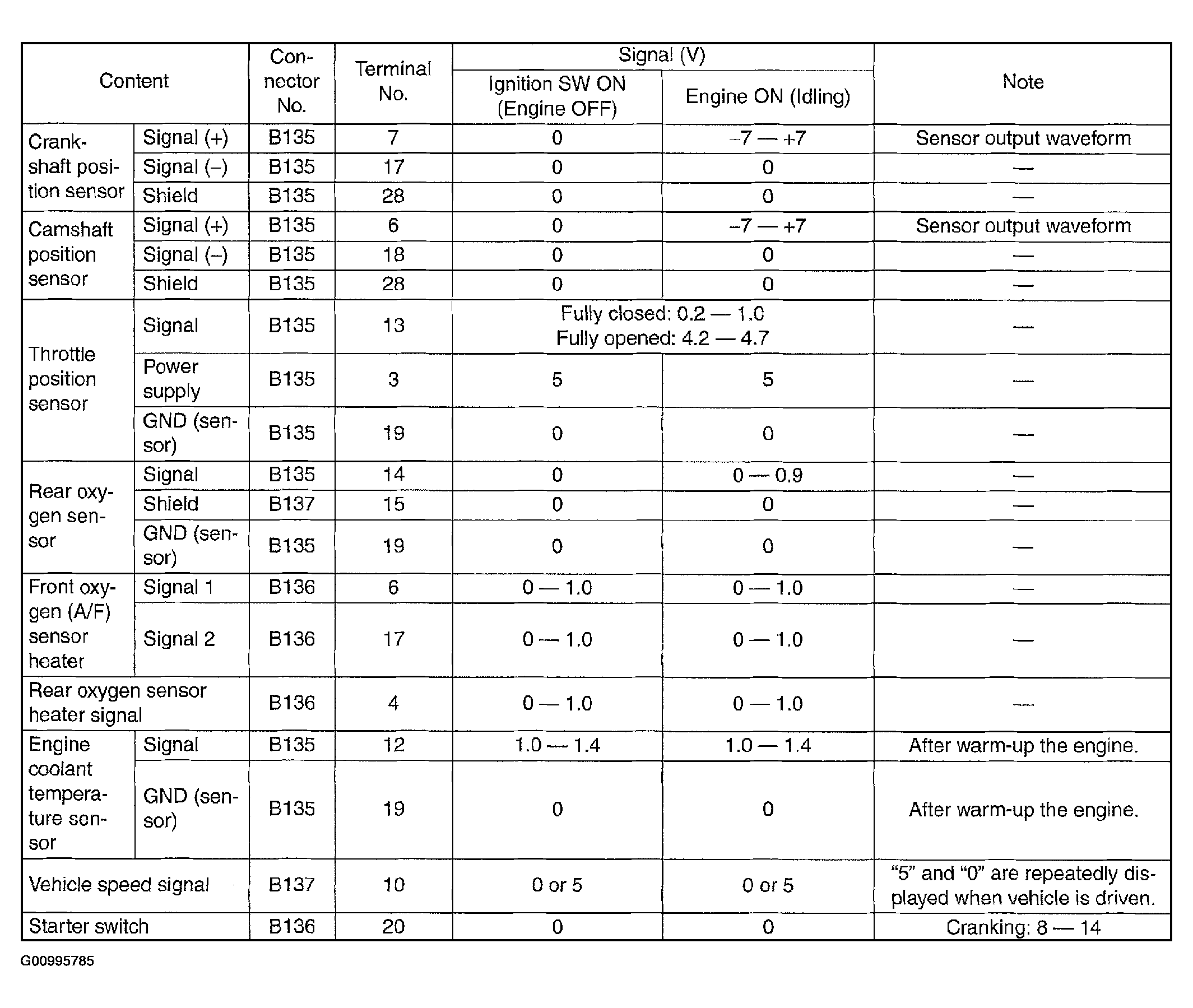

Fig 3: Engine Control Module (ECM) I/O Signal Electrical Specification Chart (2 Of 3)
Courtesy of SUBARU OF AMERICA, INC.

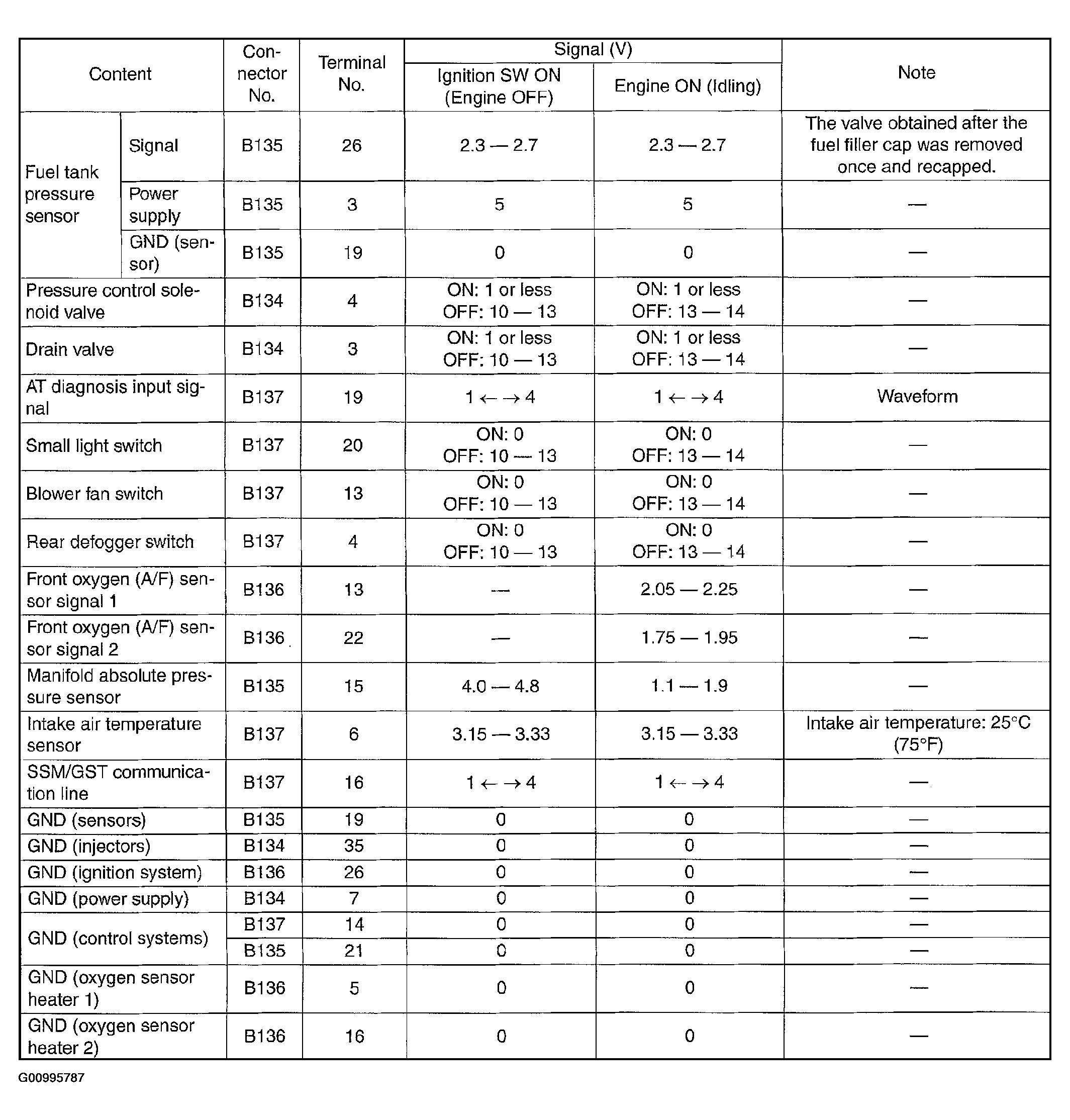

Fig 4: Engine Control Module (ECM) I/O Signal Electrical Specification Chart (3 Of 3)
Courtesy of SUBARU OF AMERICA, INC.
