Section 11 (Clutch System): Flywheel: Inspection

WARNING: This page is about a different variant/trim than selected.

CAUTION: Since this bearing is grease sealed and is of a non-lubrication type, do not wash with gasoline or any solvent.

Damage of facing and ring gear
If defective, replace the flywheel.

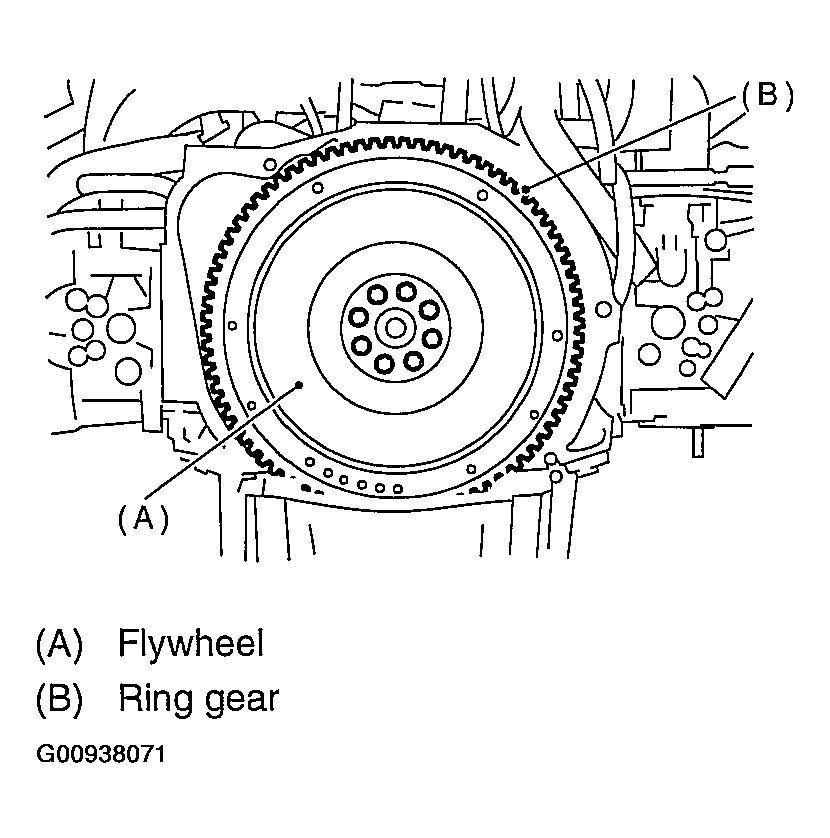

Fig 1: Locating Ring Gear Face
Courtesy of SUBARU OF AMERICA, INC.
Smoothness of rotation
Rotate the ball bearing applying pressure in thrust direction.
If noise or excessive play is noted, replace the flywheel.
