Section 11 (Clutch System): Flywheel: Removal
WARNING: This page is about a different variant/trim than selected.
- Remove the transmission assembly. < Ref. to REMOVAL
, Manual Transmission Assembly
.>
- Remove the clutch cover and clutch disc. < Ref. to REMOVAL
.>

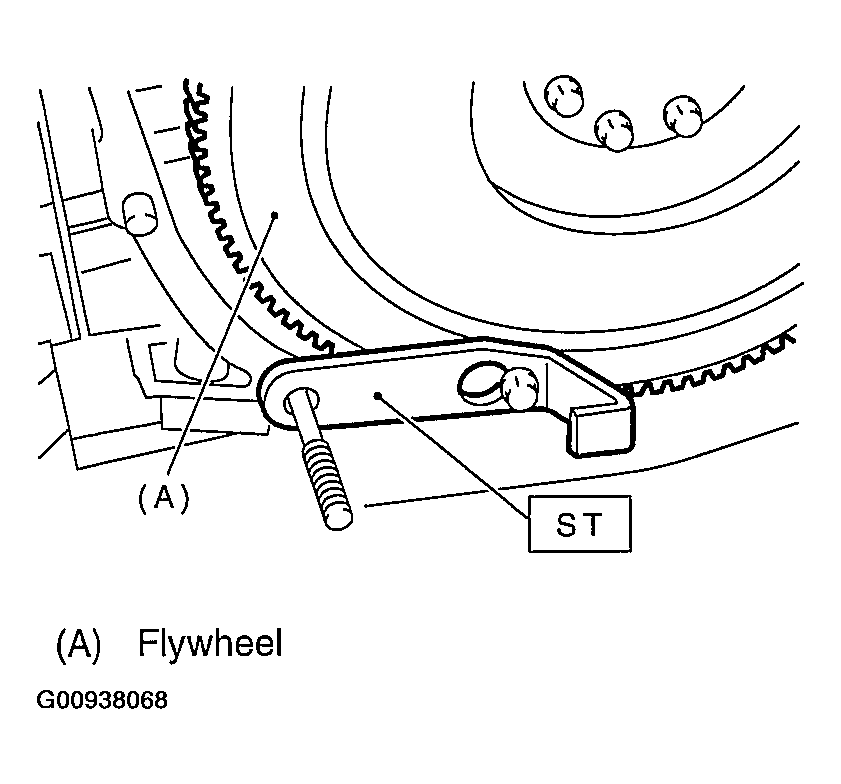

- Using the ST, remove the flywheel.
ST 498497100 CRANKSHAFT STOPPER
Courtesy of SUBARU OF AMERICA, INC.
