Clutch Assembly

WARNING: This page is about a different variant/trim than selected.

NON-TURBO MODEL

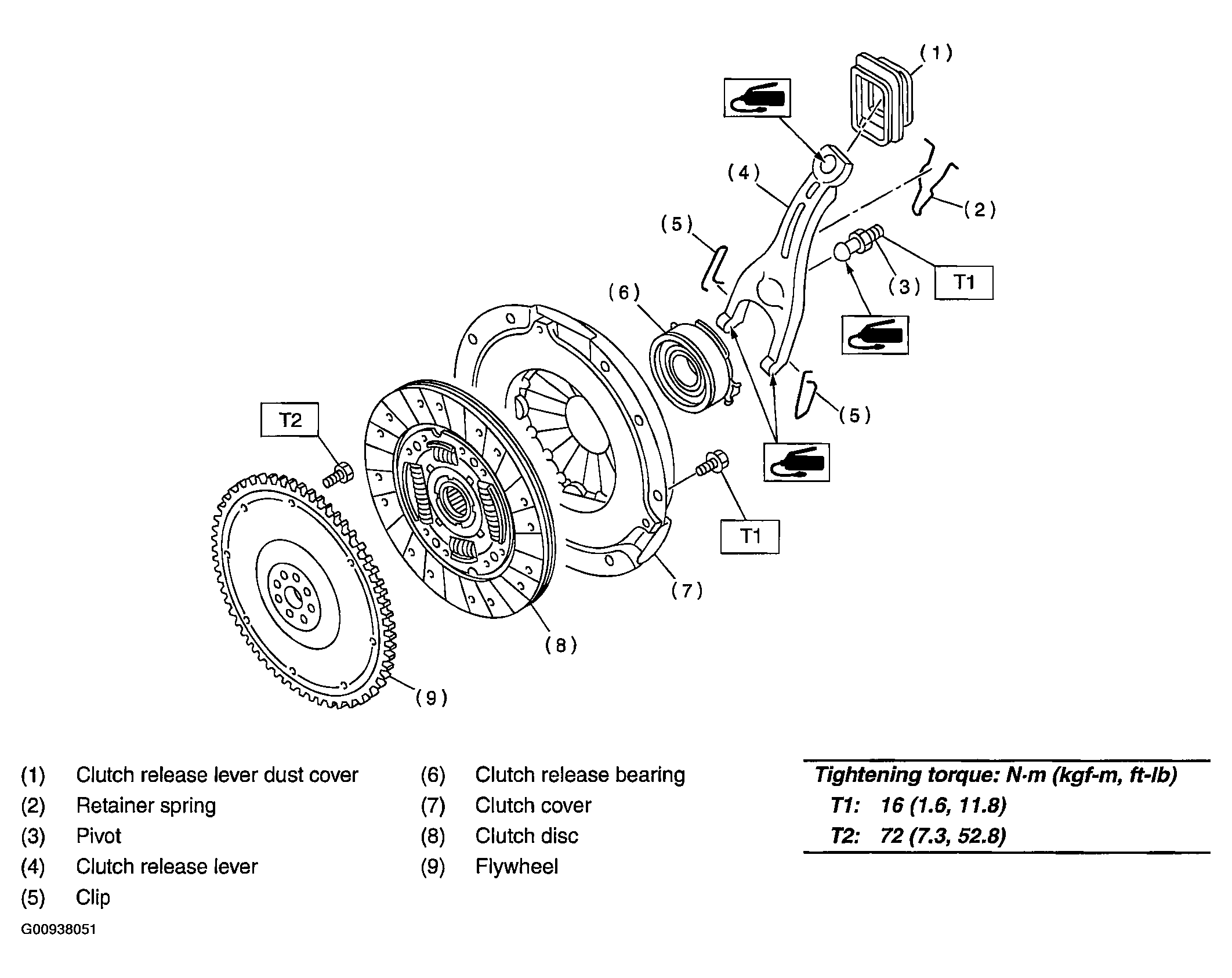

Fig 1: Clutch Assembly Replacement Components With Torque Specifications - Non-Turbo Model
Courtesy of SUBARU OF AMERICA, INC.
TURBO MODEL

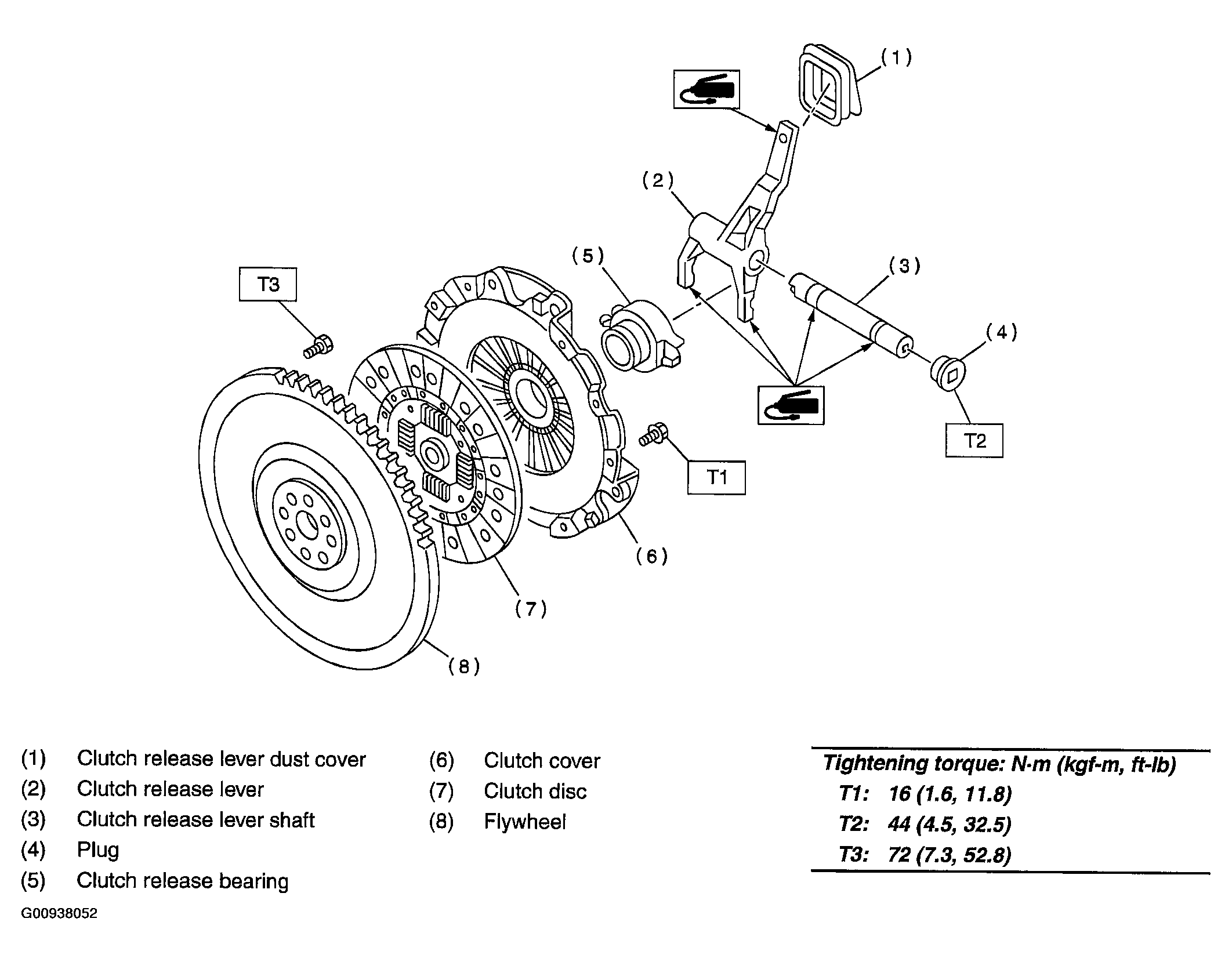

Fig 2: Clutch Assembly Replacement Components With Torque Specifications - Turbo Model

Courtesy of SUBARU OF AMERICA, INC.
