ATF Charger Pipe: Installation

Install the ATF charger pipe with new O-ring.
1. Tightening torque: 41 N.m (4.2 kgf-m, 30.4 ft-lb)

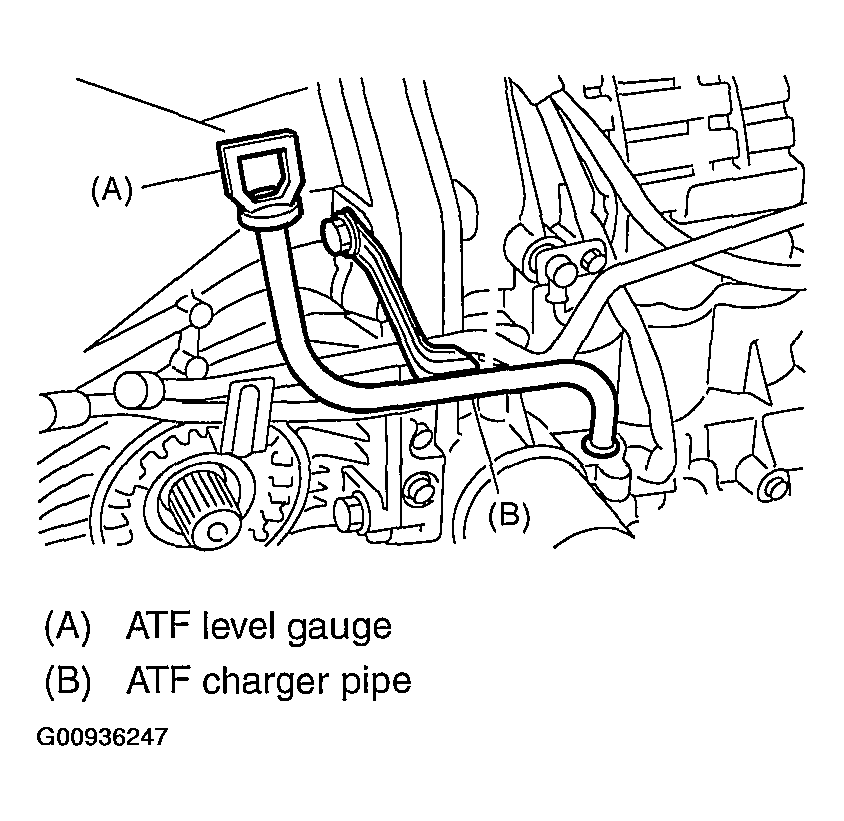

Fig 1: Identifying ATF Charger Pipe
Courtesy of SUBARU OF AMERICA, INC.
Install the air cleaner case. (Non-turbo model)
< Ref. to INSTALLATION , Air Cleaner Case . >
Install intercooler. (Turbo model)
< Ref. to INSTALLATION , Intercooler . >
